BS1139 Galvanized 6mm Thickness Scaffolding Jack Base Plate

5 0 Reviews

Share to:

Scaffolding Jack Base Plate 1) Material: Q235 2) Tube Size: OD38 3) Tube Thickness: 4mm 4) Jack Length: 400-1000mm 5) Base Plate: 150x150x6mm 6) Surface Treatment: Galvanized 7) Standard: BS1139, EN74

Availability:

Quantity:



Inquire Add to Basket

Model:
Scaffolding Swivel Base Jack
Brand:
EK
Code:
730890000
Tube Size:
35mm or 38mm
Material:
Q235
Surface Treatment:
Zinc-Plated
Weight:
0.94KG

Product Description

BS1139 Galvanized 6mm Thickness Scaffolding Jack Base Plate

Production Information

Base plate are essential base jack component in various industries, including construction and engineering. It is a steel plate positioned between a column and the foundation. Its primary functions are to level the column and distribute the column's load over a larger area of the foundation, ensuring stability and structural integrity.

Commodity Name	Scaffolding Galvanized Base Plate
Main Material	Q235 or Q345
Jack Tube Outer Diameter	35/38mm or Customized
Jack Tube Thickness	4mm or per design
Jack Length	400-1000mm or Customized

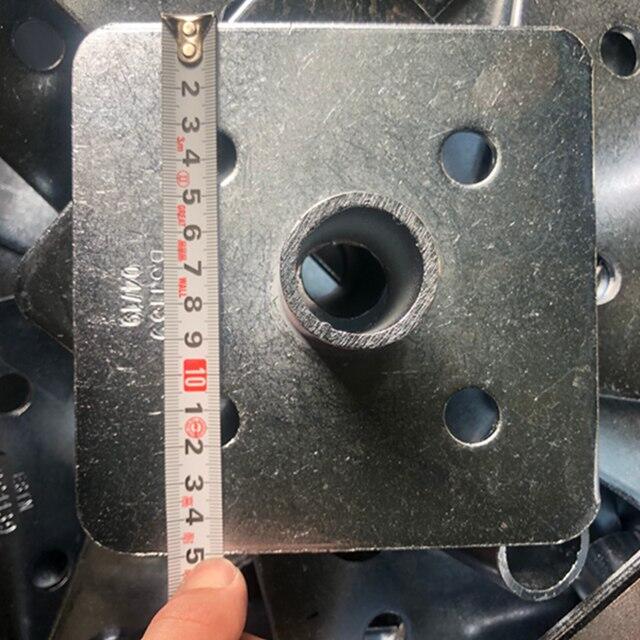

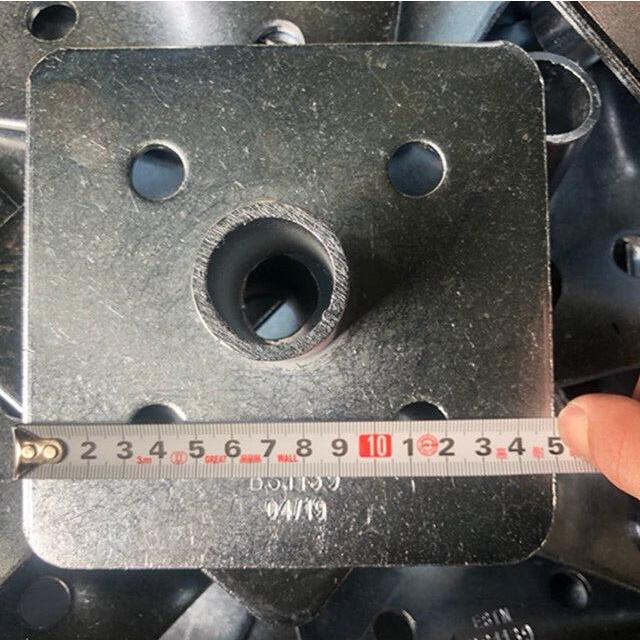

Base Plate	150x150x6mm

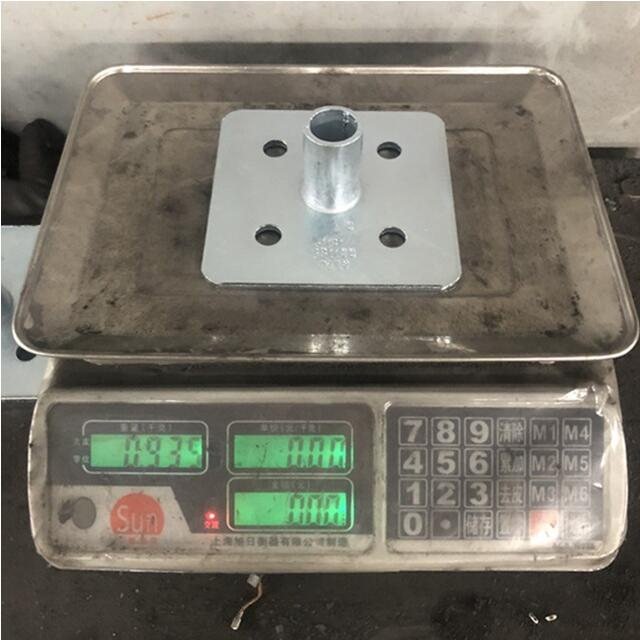

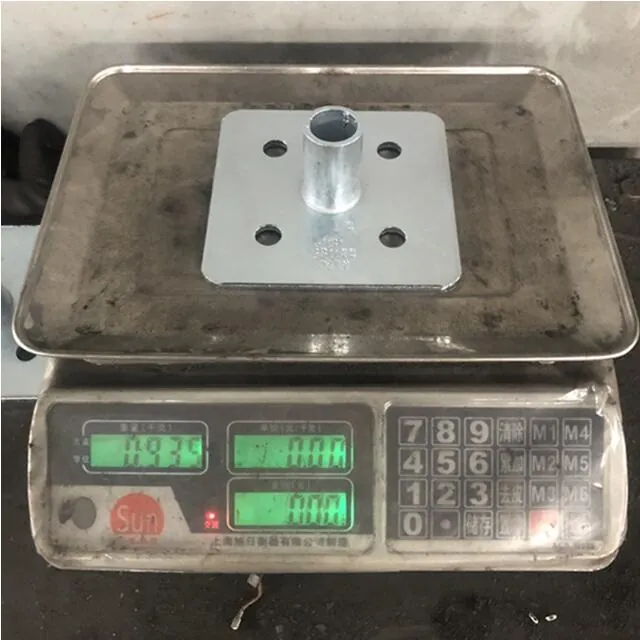

Weight	0.94KG
Surface treatment	Painted, galvanized, HDG, powder coated
Advantages	Competitive price, High-quality products, 24-hour after-sales service
Port	Nanjing/XINGANG
Currency	USD, RMB
Payment	L/C, T/T, 30% in advance
Package	Steel Pallet Or Customized
