BS1139 Ringlock Scaffolding Ledger Horizontal for Construction
Production Description
Type | Ringlock Scaffolding Ledger |
Length | 2.44m(8'') |
Weight | 9.61kg |
Main Material | Q235 or Q345 |
Surface treatment | HDG (or per request) |
Advantages | Competitive price, High-quality products, 24-hour after-sales service |
Port | Nanjing/XINGANG |
Currency | USD, RMB |
Payment | L/C, T/T, 30% in advance |
Package | Steel Pallet or Customized |
Weight & Length
Code | Description | Length (mm) | Weight (kg) |
EK-RLL065 | Ledger (Horizontal) Available in hot dip galvanized steel tube 48.3x3mm | 650 (2’2”) | 3.14 |
EK-RLL088 | 880 (2’10”) | 3.93 |
EK-RLL092 | 920 (3’) | 4.09 |
EK-RLL107 | 1070 (3’6”) | 4.68 |
EK-RLL115 | 1150 (3’10”) | 4.95 |
EK-RLL157 | 1570 (5’2”) | 6.47 |
EK-RLL183 | 1830 (6’) | 7.40 |
EK-RLL213 | 2130 (7’) | 8.49 |
EK-RLL244 | 2440 (8’) | 9.61 |
EK-RLL305 | 3050 (10’) | 11.83 |
Ringlock Scaffolding Ultimate Guide 2024
Ringlock is a type of modular scaffolding. Modular scaffolding is a system scaffold with prefabricated interlock components without the need for scaffolding couplers and fittings to fix. Ringlock scaffolding systems include prefabricated parts of ringlock standard, ringlock ledgers, ringlock diagonal braces, etc, they can interlock each other, and no need for any scaffolding couplers in fixing.
Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ringlock ledgers, ringlock diagonal braces, decks, etc, used to form scaffold frames and towers for construction and shoring.
In the ringlock scaffolding, wedge pins are fixed on the ringlock ledger and ringlock diagonal brace heads by rivets. It is used to fix ringlock system horizontals and braces between ringlock standards.
More than ringlock system scaffolding, cuplock system scaffolding, kwikstage system scaffolding, quick lock scaffold, crab shoring systems, and frame system scaffolding are modular scaffolds too.

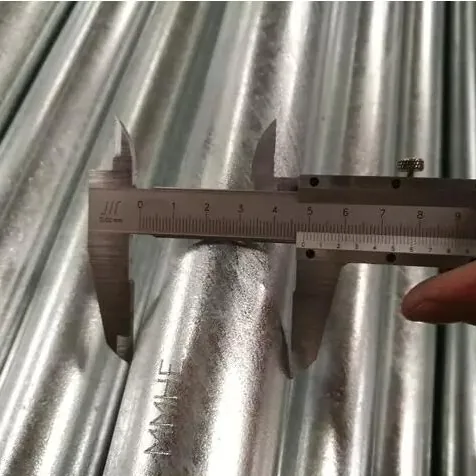

Product Image
