Scaffolding Steel Props

Steel Props are heavy-duty adjustable single vertical scaffolding steel props columns with larger inner and outer tube sizes, designed for thick slab and beam formwork prop. They are highly load-bearing, easy to install, adjustable, and safe and reliable, making them ideal for high-load concrete formwork construction.

Shore post is also called adjustable steel props，telescopic prop，adjustable prop，acrow props，prop jacks, steel props, shoring props, formwork props, construction props, shuttering props, building props, steel support, post shore, etc. All acrow propping are adjustable with closed heights and open heights.

Post shore are adjustable with closed heights and open heights under formwork. It carries loads in concrete slabs, beams, columns, and walls. The shoring post jack are composites of inner tubes, outer tubes, top and bottom plates, props sleeves with treads, robust prop nuts, lock pins, etc.

Company Profile

Scaffolding shore post and building materials are an essential part of the construction industry. They are temporary structures that support building materials during construction. Shore post plays a vital role in providing stability and strength to the formwork, ensuring that it can withstand the weight and pressure of building materials.
All parts of EK shoring post are produced by ourselves, which can guarantee the delivery time and quality of each order from customers.

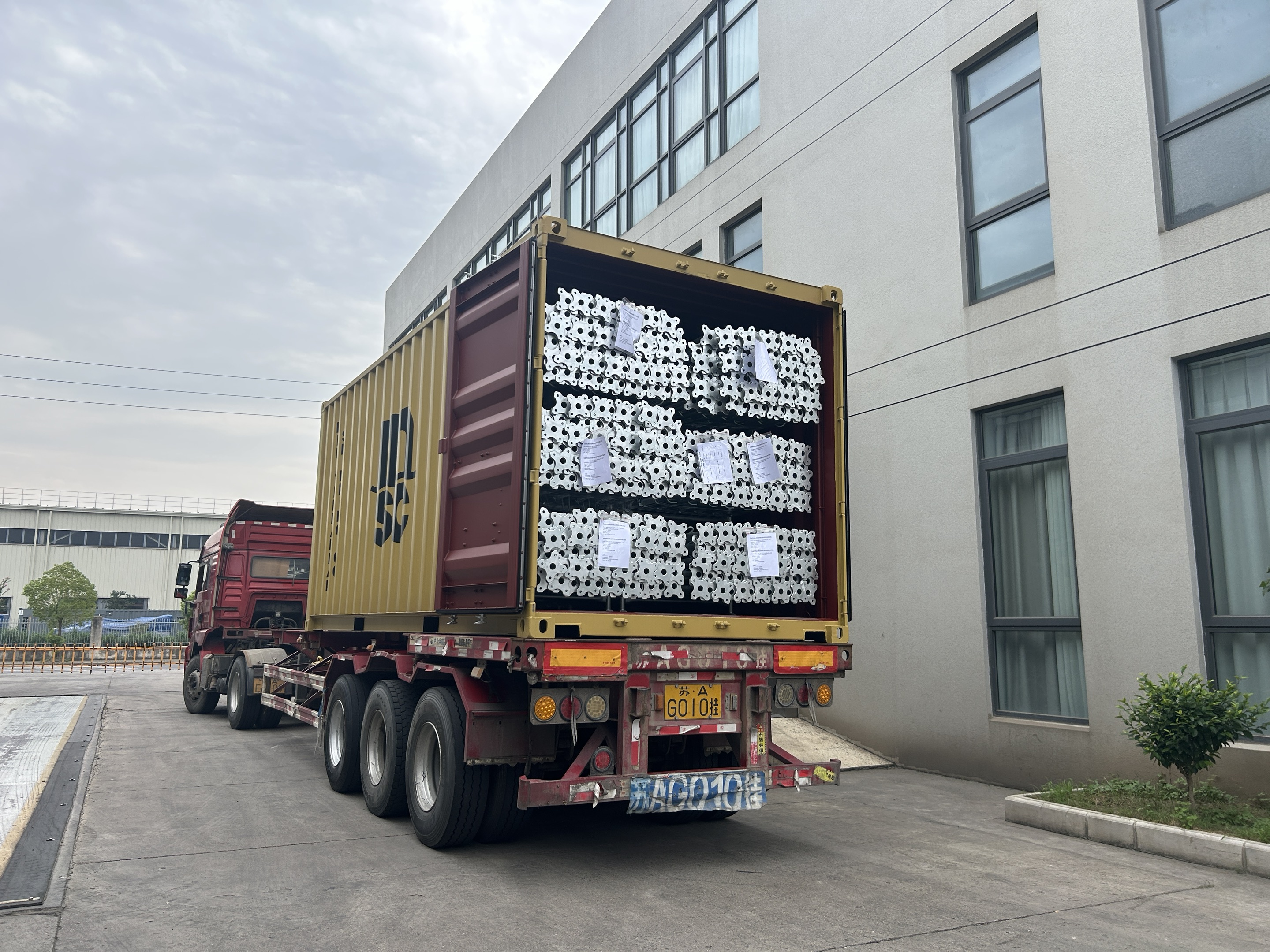

Product Packaging

Adjustable Steel Props Components

Adjustable steel props are temporary steel vertical props columns consisting of components such as inner tubes, outer tubes, strut sleeves, G-pins, bottom and top plates, and strut nuts with handles. The raw materials of these components are all made of steel, including steel tubes, steel plates, and cast iron strut fittings.
1.The inner tubes of the struts are smaller in diameter than the outer tubes; they usually have holes for inserting the outer tubes during construction and support.
2. The outer tube has a larger diameter than the inner tube and is integrally formed with the propeller sleeve.
3. The propeller sleeve has the same diameter as the outer tube and is threaded. The sleeve is usually provided with notches for installing the propeller G-pin and fixing the inner tube at the desired height.
4. The strut G-pins are G-shaped solid rods. They are used as locking pins to fix the adjustable steel struts at the desired height.
5. The strut nuts are installed on the strut sleeves, which have internal threads and nut handles. The strut nuts can be rotated up and down by hand to fine-tune the height, thereby achieving precise height settings during construction.

Production Process

Blackware

Optional Surface

Features of steel props

1.Adjustable to your desired height: The steel props is telescopic and can be closed or opened to support the height you want.
2. Durability for repeated and long-term use: The adjustable post shore is galvanized or coated for long-term repeated use.
3. Heavy weight bearing and strong load capacity: The post shores are designed with larger and more load-bearing scaffolding tubes with an outer diameter (OD) of 60 mm, 76 mm and 89 mm, and thicker tube walls, which can bear more weight than typical adjustable scaffolding props.
4. Safety of thick beam and slab support: Adding steel props can make your scaffolding props safer, especially for some thick beam and slab concrete support structures.
5. Easy to use: The adjustable steel props can be placed anywhere support is needed, which is simpler and easier to use in construction than scaffolding (which needs to be fixed and connected by accessories and connectors).
6. Simple height adjustment: You only need to insert the pillar lock pin into the hole of the inner tube and turn the pillar ring to achieve the desired support height.
7. Suitable for any construction: Suitable for any scaffolding, formwork, temporary structure or building props application.
8. Easy to transport: The steel props are single and straight; they can be closed in shorter lengths, taking up less space and easy to transport.

Data Sheet

Testing Quality

All shore posts of EKscaffolding undergo strict production process inspection and pre-shipment inspection, and each shipment is equipped with a dedicated on-site supervision and guidance to ensure smooth loading.

How to use Post Shore Props

1.Adjust to the desired height according to construction needs
2. Fix the post G pin into the hole of the inner tube and the slot of the outer tube sleeve.
3. Gently turn the propeller nut on the propeller sleeve to ensure the height is accurate and there is no play.

Comment & FAQ

1. Is Post Shore compatible with fork heads, cross heads and U heads?

A: There are holes on both the top and bottom plates of the post shore. These holes are compatible with forehead heads, U heads and cross heads. Insert the pins of the top head into the holes on the top plate of the post shore to support the formwork concrete.

2.What is the anti-corrosion surface treatment of Post Shore?

A: The heavy duty post shore is made of steel. The surface treatment of steel props includes galvanizing and coating. Galvanized steel prop include cold galvanizing and hot dip galvanizing (HDG). Coating steel props include painting and powder coating. You can consult the prices of all different treatments and make a decision after comparison.
