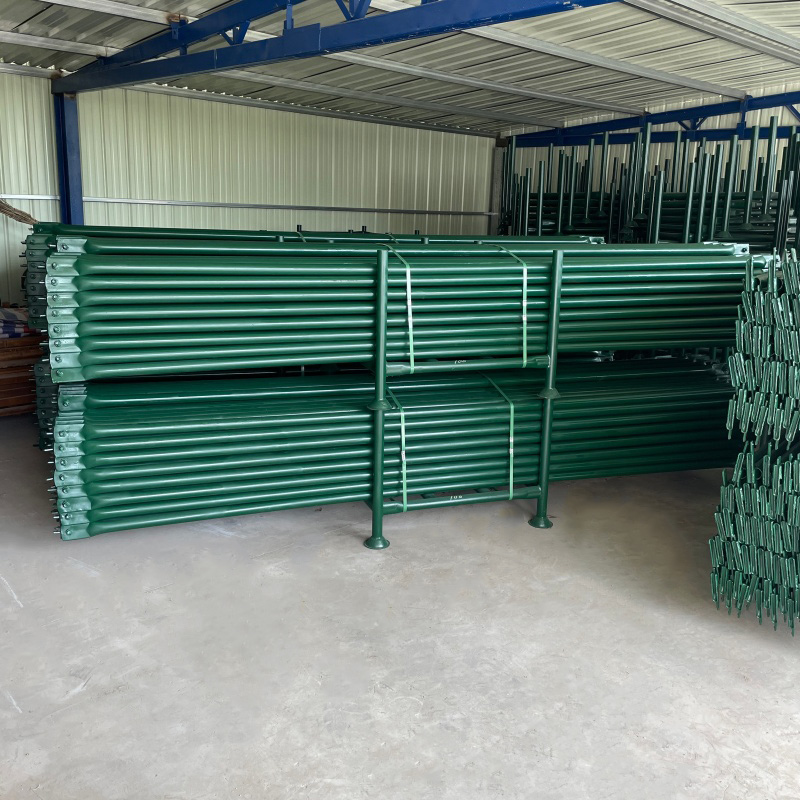

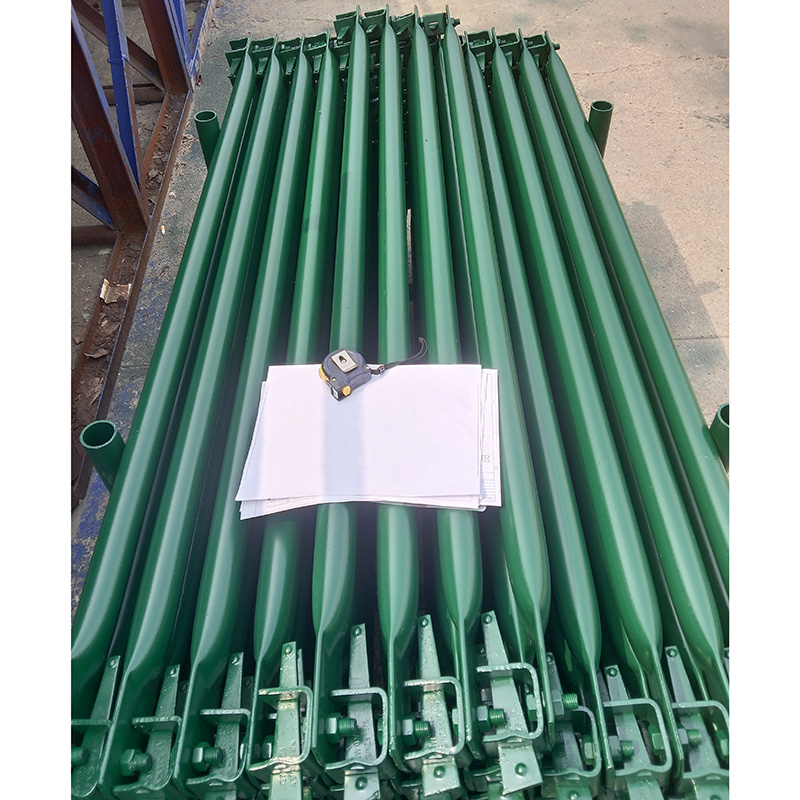

Australian Kwikstage Diagonal Brace

5 0 Reviews

Share to:

Kwikstage Diagonal Brace Technical Specifications

Material Composition: High-tensile steel tube (typically Q235 grade).
Tube Dimensions: 48.3 mm outside diameter with a 3.0 mm wall thickness.
Connectors: Swivel C-section pressings with captive wedge pins welded at both ends.
Connection Mechanism: Wedges lock directly into the V-pressings of Kwikstage standards without needing loose couplers.
Surface Finishes: Hot-dip galvanized for weather and rust resistance, or painted.

Availability:

Quantity:



Inquire Add to Basket

Model:
Kwikstage Scaffolding
Brand:
EK Scaffolding
Code:
EK-KSB
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Zinc-Plated

Product Description

Kwikstage Diagonal Brace

The Kwikstage diagonal brace is a vital component of the modular Kwikstage scaffolding system, serving to form the diagonal member of a scaffold bay and thereby provide structural rigidity. It enhances the system's stability against wind and sway loads, ensures the squareness of the bay, and maintains vertical alignment. This diagonal bracing significantly boosts the strength and stability of Kwikstage towers and frameworks.

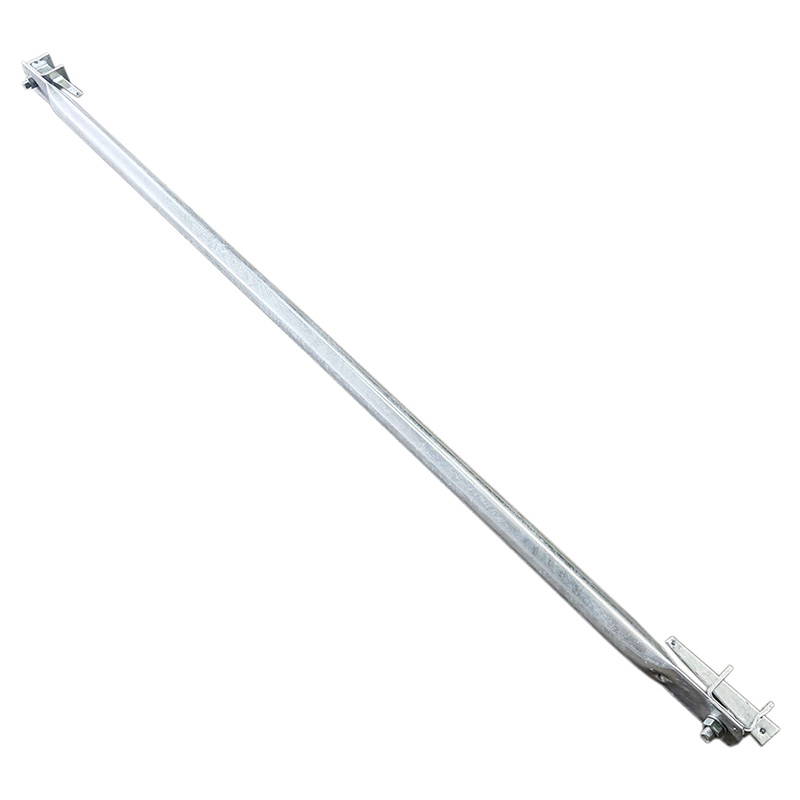

Kwikstage diagonal braces are manufactured from standard scaffolding steel tube (48.3 x 3.0 mm). Each end is fitted with a pressed 'C' bracket and a wedge pin, secured to the tube body using Grade 8.8 bolts and nuts.

Sizing & Installation

Brace lengths are manufactured to match the width and bay spacing of Kwikstage systems. While complete dimensions range from 0.73 m to 3.6 m depending on the manufacturer, the most common standard sizes include:

Code	Item	Specification(mm)	Weight(Kg)
EK-AKSB36	Australian Brace 3.6m	48.33.03475 / 2477*2438	13.15
EK-AKSB32	Australian Brace 3.2m	48.33.03141 / 1981*2438	12.03
EK-AKSB29	Australian Brace 2.9m	48.33.02855 / 1486*2438	11.07
EK-AKSB27	Australian Brace 2.7m	48.33.02696 / 1981*1829	10.54
EK-AKSB25	Australian Brace 2.5m	48.33.02353 / 1981*1270	9.39
EK-AKSB20	Australian Brace 2.0m	48.33.01955 / 1486*1270	8.05
EK-AKSB17	Australian Brace 1.7m	48.33.01670 / 1486*760	7.1
EK-AKSB24	Australian Brace 2.4m	48.33.02220	8.94
EK-AKSB13	Australian Brace 1.3m	48.33.01220	5.59
