| Quantity: | |
|---|---|
Scaffolding Swivel Base Jack
EK
730890000
35mm or 38mm
Q235
Zinc-Plated

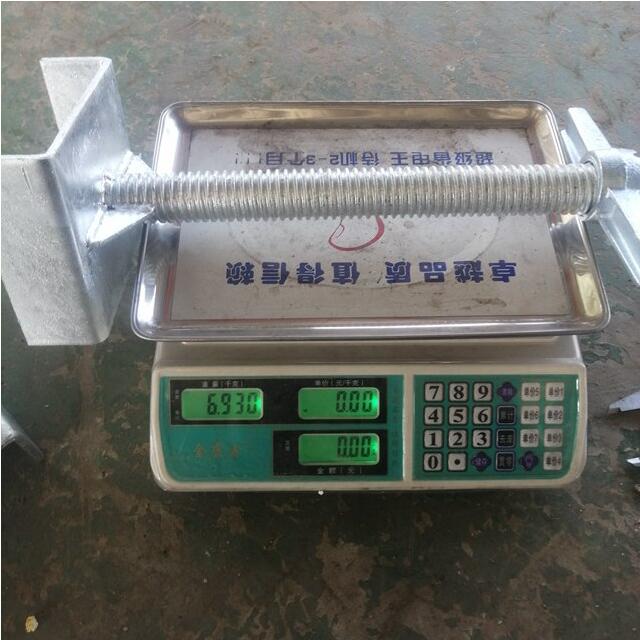

6.93 KG
Galvanized BS1139 Scaffolding Swivel Screw Base Jack Nut For Tower Scaffold
Production Information
| Commodity Name | Scaffolding Swivel Screw Base Jack |
Main Material | Q235 or Q345 |
Jack Tube Outer Diameter | 35/38mm or Customized |
Jack Tube Thickness | 4mm or per design |
Jack Length | 400-1000mm or Customized |
| Base Plate | 150x150x6mm |
Surface treatment | Painted, galvanized, HDG, powder coated |
Advantages | Competitive price, High-quality products, 24-hour after-sales service |
Port | Nanjing/XINGANG |
Currency | USD, RMB |
Payment | L/C, T/T, 30% in advance |
Package | Steel Pallet Or Customized |
How is base jack used in Scaffolding?
The base jack levels the scaffold tower when the tower legs are placed on surfaces of different elevations. It ensures all the legs will have (appx) equal bearing on the substrate(s) the tower rests upon.
Unless the jack is placed on something solid, it will need dunnage underneath it to properly transfer the leg load into the soil.
It is also used to ‘fine tune’ the height of the tower itself, so that height adjustments of up to around 12″ can be achieved.
Essentially, a base jack is a load bearing base and is used to hold standards/uprights (the vertical tubes) in place and help transfer the weight of the structure to the ground. The base jack is used to help spread the load and has a shank in the center to hold the tube in place. To eliminate sway, a facade brace is fitted to the face of the scaffold every 30 meters. The spacing of the upright scaffolding and base jacks is usually around every 2.1m but this can be reduced to 2m or 1.8m depending on the weight of the structure.

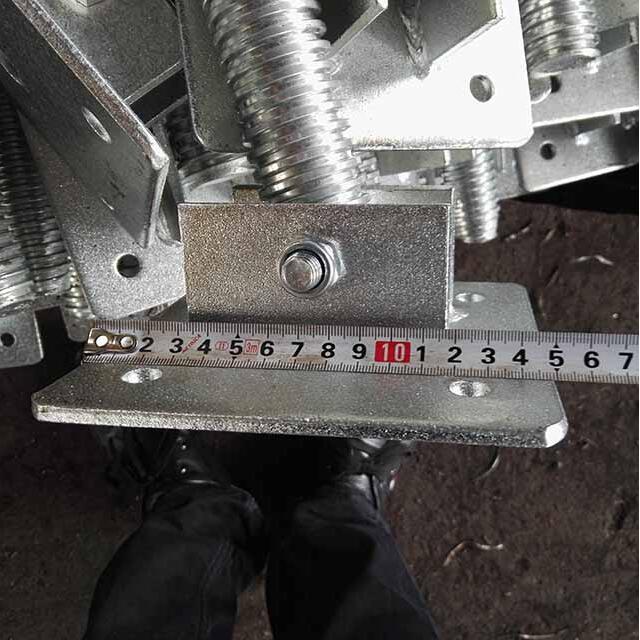

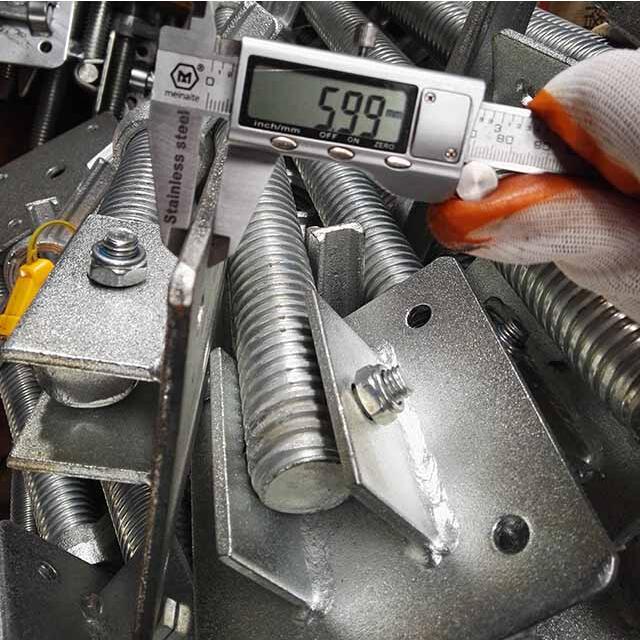

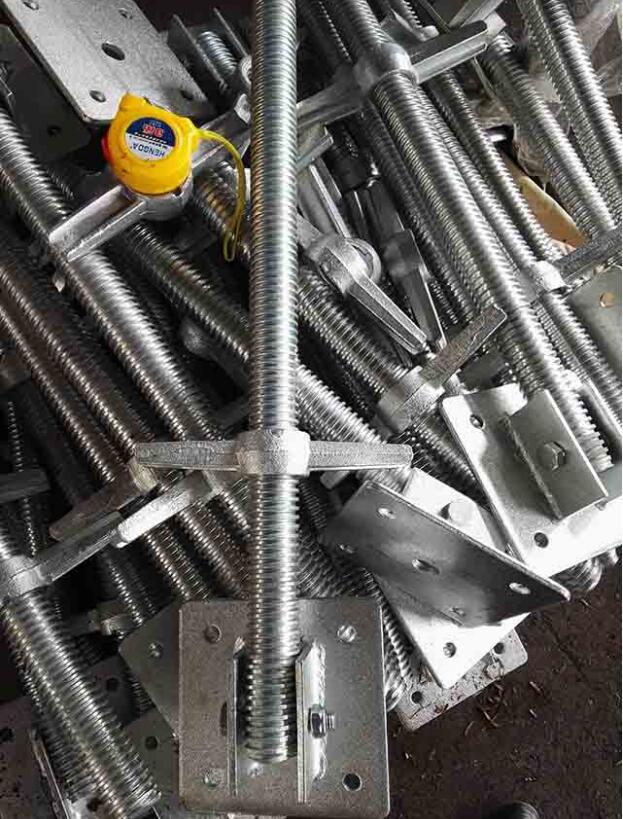

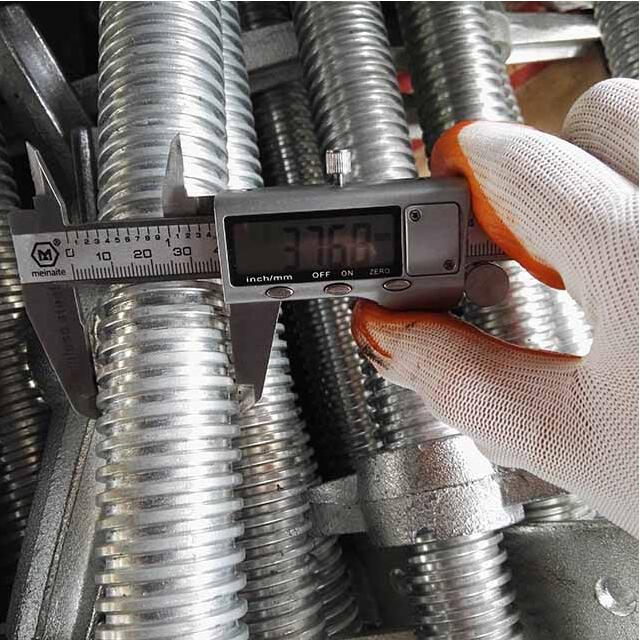

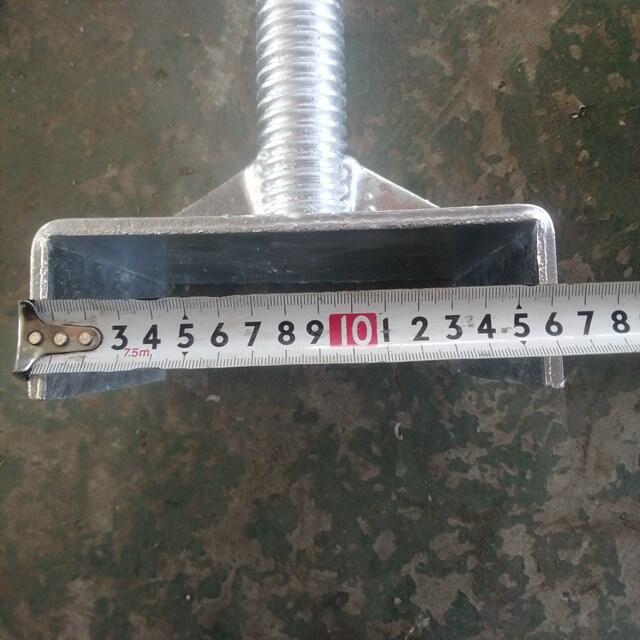

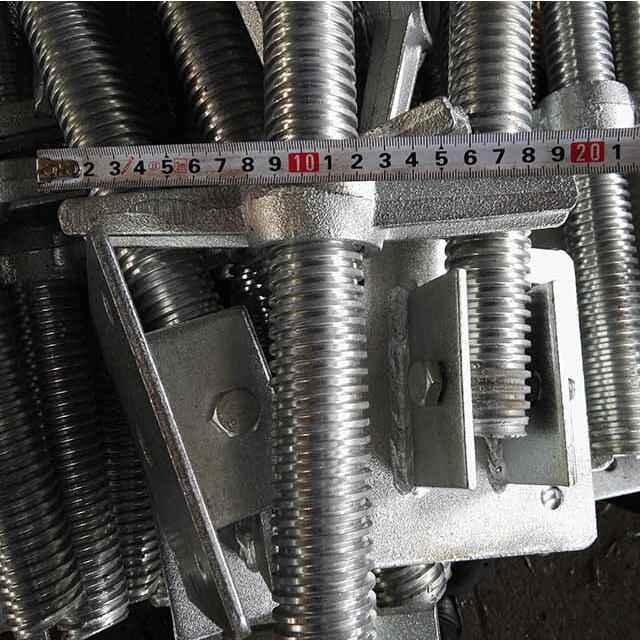

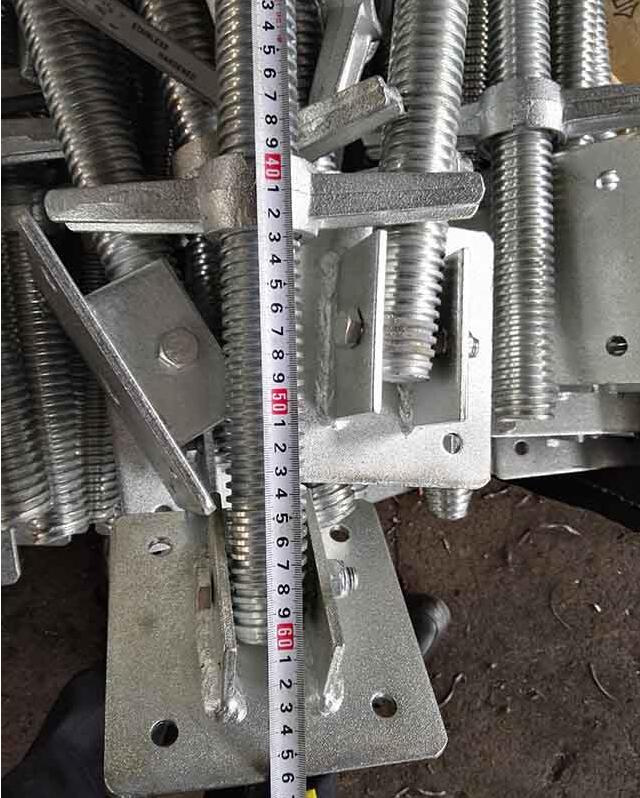

Product Images
Other scaffolding material we common export
1) British Standard Markings on goods
2) D/F Double, Sweivel, Sleeve, Putlog, BRC, Girder Couplers
3) Hot-dip Galvanized Scaffolding Steel Tubes
3） Ringlock, Cuplock, Kwikstage, Haki, Frame, Prop Scaffolding Systems
4) Other Accessories
