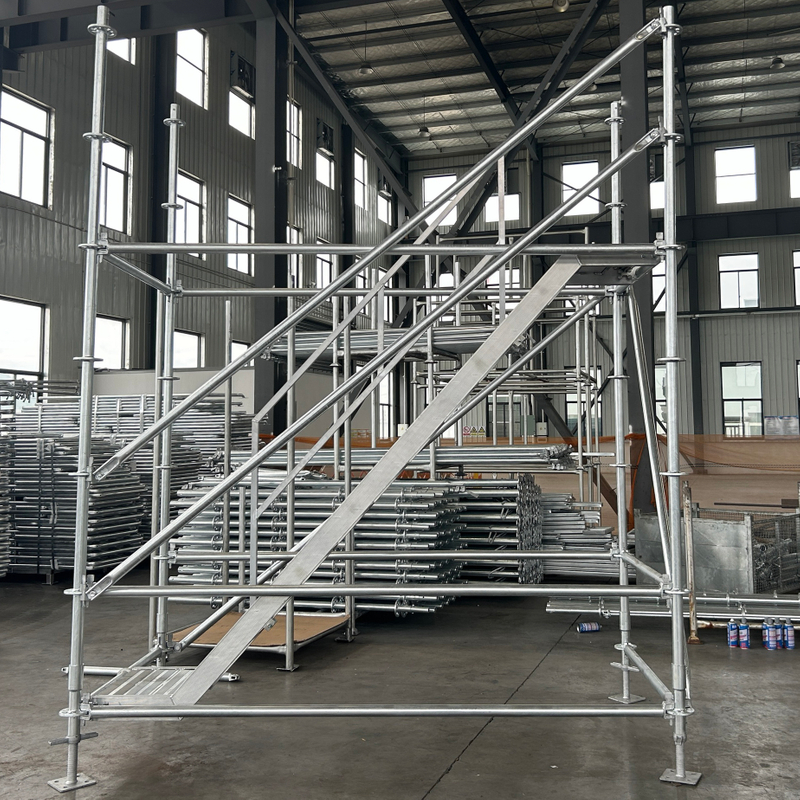

Galvanized Steel Ringlock Scaffolding System

5 0 Reviews

Galvanized Steel Scaffolding Standard Vertical for Ringlock System

Share to:

Ringlock Scaffolding 1) Material: Q235, Q345 2) Tube Size: 48.3x3.2mm 3) Spigot or Spigotless are available 4) Surface Treatment: HDG 5) Joint Intervals: 500mm Intervals 6) Length: 2500mm(500m - 4000mm available) 7) Marking: Customized markings on goods 8) Standard: BS1139, EN74

Availability:

Quantity:



Inquire Add to Basket

Model:
Ringlock Scaffolding
Brand:
EK
Code:
730890000
Tube Size:
48.3x3.2mm
Material:
Q235
Surface Treatment:
Hot-Dip Galvanized
Weight:
12.9KG

Product Description

Galvanized Steel Ringlock Scaffolding System

| Product Description

Ringlock standards are the loading bearing upright scaffold parts of the ringlock system modular scaffold, with rosettes at every 500mm (7″) intervals, used to connect with other parts of the ring system: ringlock ledgers, braces, brackets, etc.

| Product Features:

Diameter: O.D48mm and O.D 60mm

Thickness: 3.2mm

Steel Grade: S355 and S235

Rosettes: 8 Slots, Flexible for Multiple Angle Connection (with Ledgers, Braces, etc)

Load Bearing: Check Ringlock Scaffold Load Capacity Test Result

Standards: EN 12810/EN12811, CSA, ANSI, AS/NZS

Length: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m and 4.0m

Joint Mechanism: Coupling pin(spigot joints) stack the scaffold uprights to reach the construction height.

Bottom Connection: With Ringlock Base Collars and Scaffold Jack Base.

Finishing: Hot-dip galvanized, Powder Coated and Painted

| Types Of Ringlock Scaffolding Standards

Ringlock standards are composited of scaffolding tubes, rosettes or rings, and coupling pin (spigot). According to the scaffold tube diameter of the ringlock scaffolding, there are typical duty(normal duty) and heavy-duty ringlock system scaffolding.

48mm typical duty ringlock system scaffold: made of O.D48.3×3.2mm scaffolding tube, S355 steel grade

60mm heavy duty ringlock system scaffold: made of O.D60x3.2mm scaffolding tube, S355 steel grade.

ringlock scaffolding standard ringlock Scaffolding welding
