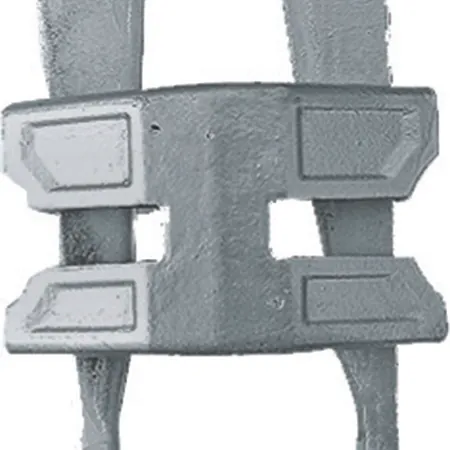

Twin Wedge for Ringlock Ring Lock
Ringlock Scaffolding Ultimate Guide 2024
Ringlock is a type of modular scaffolding. Modular scaffolding is a system scaffold with prefabricated interlock components without the need for scaffolding couplers and fittings to fix. Ringlock scaffolding systems include prefabricated parts of ringlock standard, ringlock ledgers, ringlock diagonal braces, etc, they can interlock each other, and no need for any scaffolding couplers in fixing.
Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ledgers, braces, decks, etc, used to form scaffold frames and towers for construction and shoring.
In the ringlock scaffolding, wedge pins are fixed on the ringlock ledger and ringlock diagonal brace heads by rivets. It is used to fix ringlock system horizontals and braces between ringlock standards.
More than ringlock system scaffolding, cuplock system scaffolding, kwikstage system scaffolding, quick lock scaffold, crab shoring systems, and frame system scaffolding are modular scaffolds too.
1. Product Description:
EK steel ringlock scaffolding system is versatile high-strength galvanized steel modular scaffold which is built for increased strength, versatility and usability. It is widely used in all kinds of indoor and outdoor jobs like maintenance, cleaning, refurnishing.
2. Product Parameters:
1）Product Name: Steel Ringlock Scaffolding
2）Material: Q235
3）Size: Standard Post Diameter Φ48mm/Φ60mm
4）Scaffolding Height: without height restriction
5）Platform Height: without height restriction
3. Advantages:
1）Easy to handle
-The whole system requires no extra tools or loose fittings for its setup and dismantling. And aerial platform of 20m can be easily assembled by two persons within a short time. --The whole process is as easy as toy bricks game.
2）High strength and safety
-EK steel ringlock scaffold are built for high strength and safety, consisting of galvanized high-strength steel modular components.
3）Various Sizes for different jobs requirement
-Horizontals, diagonals and verticals are available in a variety of lengths, ranging from 2ft to 10ft, which allows the system to be built in any configuration to suit different job requirement.
4）Versatility and Applications
-EK Steel Ringlock scaffold is a versatile scaffold which is applicable for all types of access and support structure such as building construction, external and internal wall maintenance, subways, tunnels and bridge.
4. Product Assembly Description:
1）Check that all components are on site, undamaged and that they are functioning correctly – (refer to Checklist and Quantity Schedules). Damaged or incorrect components shall not be used.
2）The safe working load is 200kgs/㎡, per platform level.
