Galvanized Ringlock Scaffolding System Round Ring

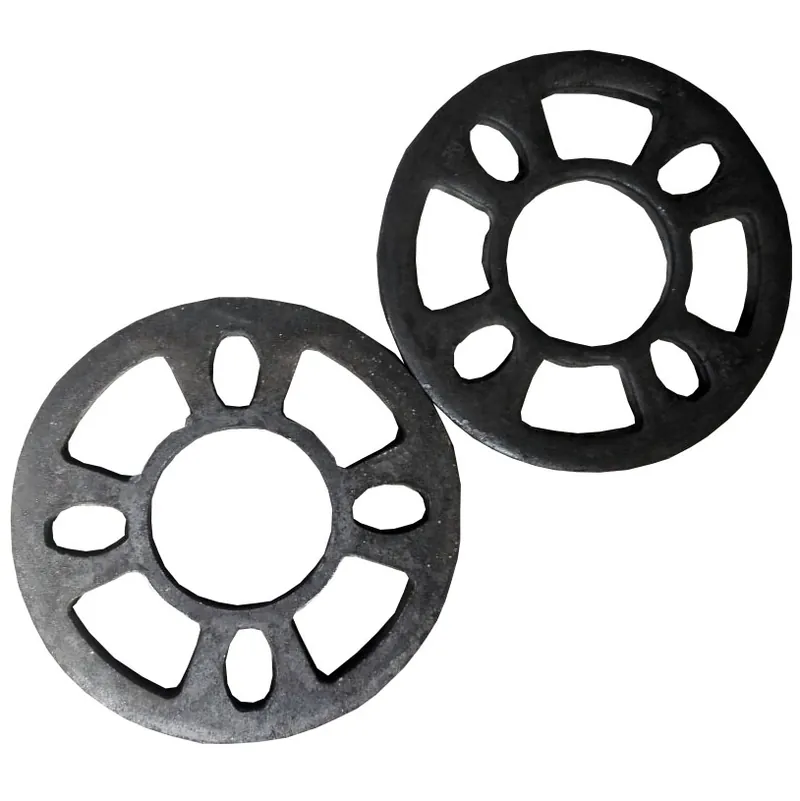

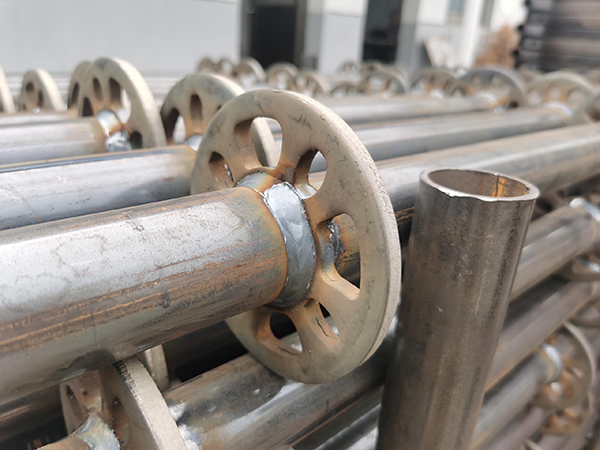

The rosette connection serves as the structural core of the ringlock scaffolding system. Each rosette features four large apertures and four small apertures, enabling components—such as ledgers, diagonal braces, beams, and triangular brackets—to connect simultaneously with the vertical standards from eight distinct directions. Thanks to its unique eight-hole geometric configuration, this connection point facilitates full 360-degree connectivity. Our ringlock rosette are manufactured from 10mm-thick Q355B steel and are seamlessly integrated with the vertical standards using a circumferential seam welding process executed by Golden Lion's automated welding machinery. This process ensures that the connection points possess high strength and semi-rigid characteristics, thereby fully meeting the load-bearing requirements stipulated by the EN 12810 standard for industrial and offshore scaffolding projects.
| Type | Typical Value | Notes |
| Large Holes | 4 | Used for connecting diagonal braces; allows for angular adjustment within a range of 45° to 60°. |
| Small Holes | 4 | Used for connecting ledgers; ensures a precise 90° right-angle connection. |
| Rosette Diameter | 123 mm | Standard industry specification. |
| Rosette Thickness | 10 mm | Manufactured from high-strength steel plate via stamping or precision casting. |
| Material | Q355B / S355JR | Matches the material of the vertical standards to ensure weld integrity. |
| Shear Capacity | 25.0 kN | Vertical shear load capacity per single node. |
| Torsional Rigidity | 0.8-1.0 kNm/rad | Determines the amplitude of scaffolding sway under wind loads. |
Ringlock is a type of modular scaffolding. Modular scaffolding is a system scaffold with prefabricated interlock components without the need for scaffolding couplers and fittings to fix. Ringlock scaffolding systems include prefabricated parts of ringlock standard, ringlock ledgers, ringlock diagonal braces, etc, they can interlock each other, and no need for any scaffolding couplers in fixing.
Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ringlock ledgers, ringlock diagonal braces, decks, etc, used to form scaffold frames and towers for construction and shoring.
In the ringlock scaffolding, wedge pins are fixed on the ringlock ledgers and ringlock diagonal braces heads by rivets. It is used to fix ringlock system horizontals and braces between ringlock standards.
More than ringlock system scaffolding, cuplock system scaffolding, kwikstage system scaffolding, quick lock scaffold, crab shoring systems, and frame system scaffolding are modular scaffolds too.
