Galvanized Scaffold Horizontal Ringlock System HDG Scaffolding Ledger Tube
HDG Scaffolding Ringlock System Ledger
Production Description
Type | HDG Ringlock Scaffolding Ledger |
Length | 2.13m(7'0'') |
Weight | 8.49kg |
Main Material | Q235 or Q345 |
Surface treatment | Painted, galvanized, HDG, powder coated |
Advantages | Competitive price, High-quality products, 24-hour after-sales service |
Port | Nanjing/XINGANG |
Currency | USD, RMB |
Payment | L/C, T/T, 30% in advance |
Package | Steel Pallet or Customized |
Weight & Length
Code | Description | Length (mm) | Weight (kg) |
EK-RLL065 | Ledger (Horizontal) Available in hot dip galvanized steel tube 48.3x3mm | 650 (2’2”) | 3.14 |
EK-RLL088 | 880 (2’10”) | 3.93 |
EK-RLL092 | 920 (3’) | 4.09 |
EK-RLL107 | 1070 (3’6”) | 4.68 |
EK-RLL115 | 1150 (3’10”) | 4.95 |
EK-RLL157 | 1570 (5’2”) | 6.47 |
EK-RLL183 | 1830 (6’) | 7.40 |
EK-RLL213 | 2130 (7’) | 8.49 |
EK-RLL244 | 2440 (8’) | 9.61 |
EK-RLL305 | 3050 (10’) | 11.83 |
Ringlock Scaffolding are mainly composed by Standard, Ledger, Diagonal Brace, Base Collar, Joint Pin. Accessories have Staircase, Catwalk, Triangle Bracket, Heavy Truss, Reinforced Brace, Transom, Jack Base, U Jack etc, ringlock scaffolding usually have two usages, one is used as inner support of construction, another is erected as the out plateform for workers working.
Our ringlock scaffolding include M48, M60 two specifications with vary sizes, could meet your different demands, using high quality Q345, Q235 steel as raw material. The surface are hot dip galvanized,with high corrosion resistance, our ringlock scaffolding service life could reach 15 years.
Ringlock scaffolding has been one of the most widely used scaffolding system because of its light, stable, safety structure and long service life, are greatly used in building construction, stage construction, railway construction, airport construction, etc.
Ringlock Standard/Vertical Normal Specifications:
1.Normal Tube Size:Φ48.3×3.25mm;Heavy Tube Size:Φ60.3×3.25mm
2.Available in Hot Dip Galvanized Surface or Customized
3.Our factory can do all types of Ringlock System Scaffold Products based on our customer’s drawings or samples
4.Our ringlock scaffolding adopt automated welding technique with high weld quality and strength. Any customized specification is available. Please just consult our sales directly.
Ringlock Scaffolding Ultimate Guide 2023
Ringlock is a type of modular scaffolding. Modular scaffolding is a system scaffold with prefabricated interlock components without the need for scaffolding couplers and fittings to fix. Ringlock scaffolding systems include prefabricated parts of ringlock standard, ringlock ledgers, ringlock diagonal braces, etc, they can interlock each other, and no need for any scaffolding couplers in fixing.
Ringlock system is a group of ringlock scaffolding parts and components, including ringlock standards, ledgers, braces, decks, etc, used to form scaffold frames and towers for construction and shoring.
In the ringlock scaffolding, wedge pins are fixed on the ringlock ledger and ringlock diagonal brace heads by rivets. It is used to fix ringlock system horizontals and braces between ringlock standards.
More than ringlock system scaffolding, cuplock system scaffolding, kwikstage system scaffolding, quick lock scaffold, crab shoring systems, and frame system scaffolding are modular scaffolds too.

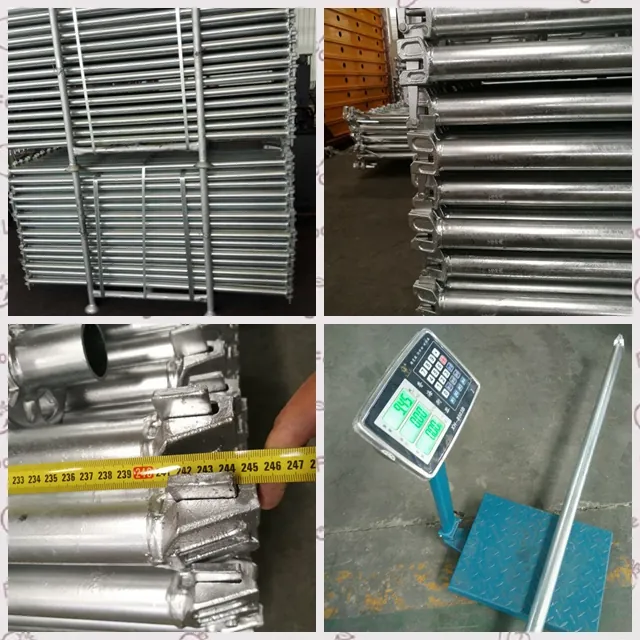

Product Image
