Ringlock Scaffolding System Manufacturer

5 0 Reviews

Ringlock Scaffolding Standards | Ringlock System Verticals

Share to:

Availability:

Quantity:



Inquire Add to Basket

Model:
RNLK-STANDARD
Brand:
EK
Code:
730890
Tube Size:
48.3mm
Material:
Q235
Surface Treatment:
Hot-Dip Galvanized
Weight:
15.25kg

Product Description

|

Product Description

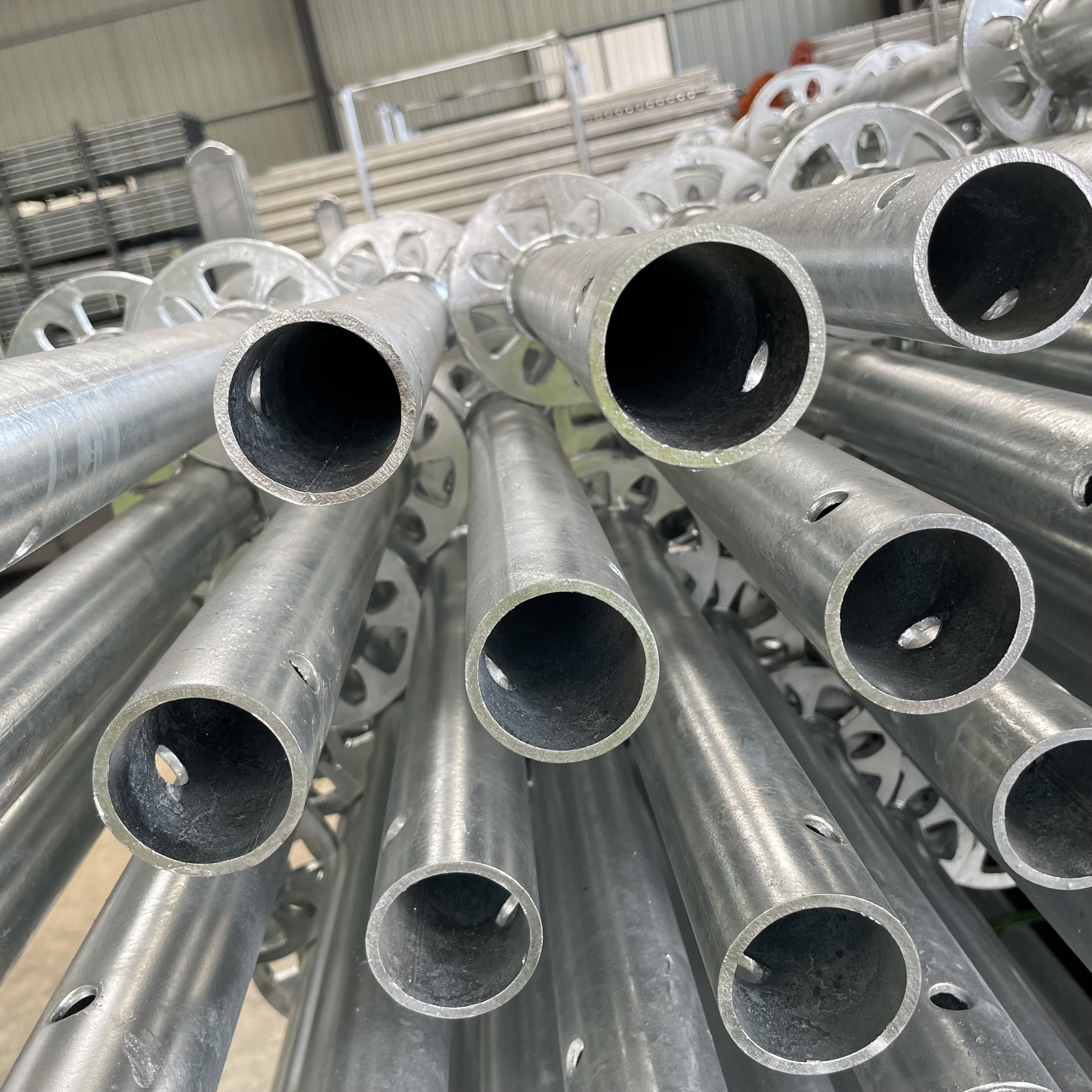

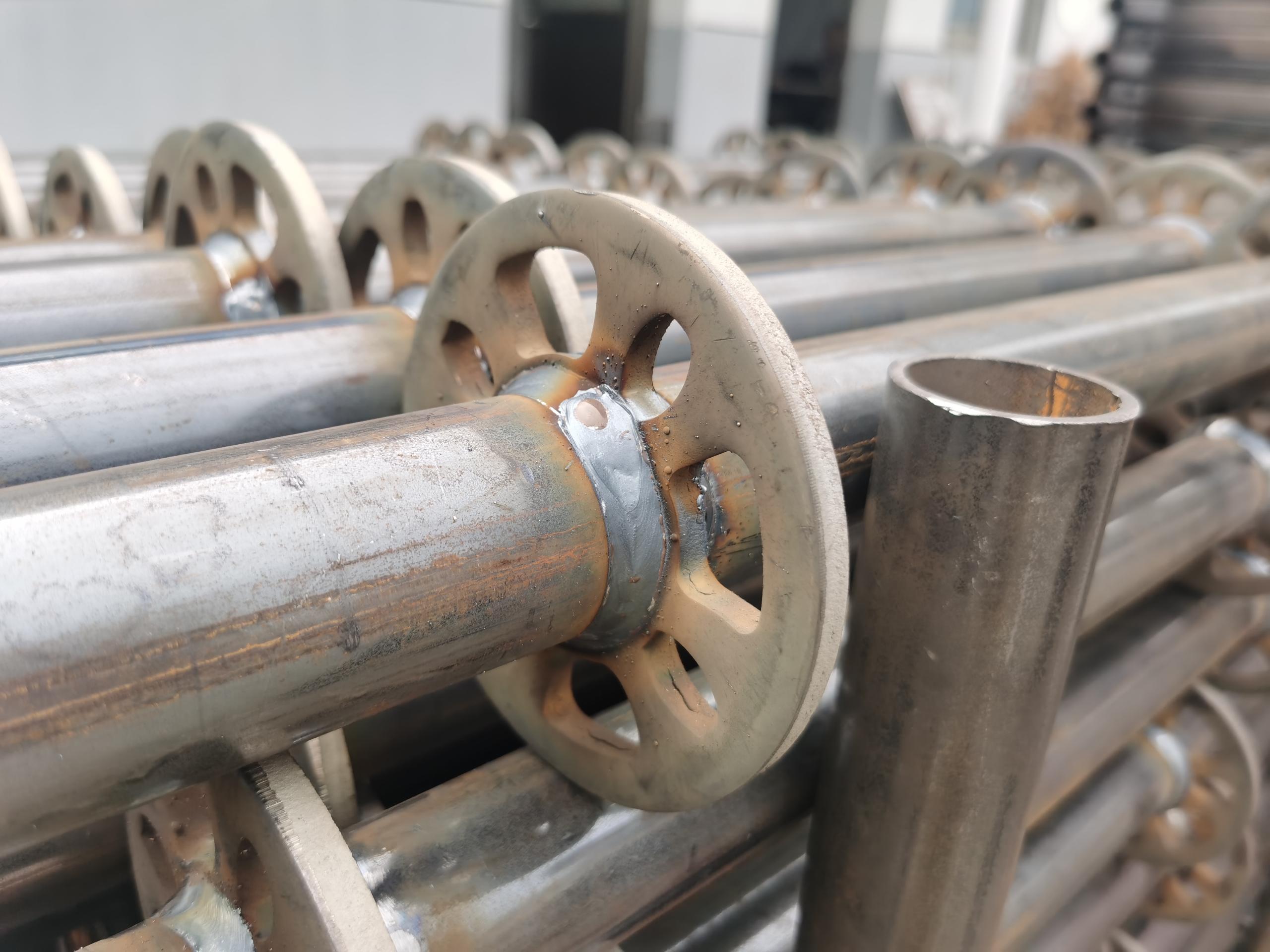

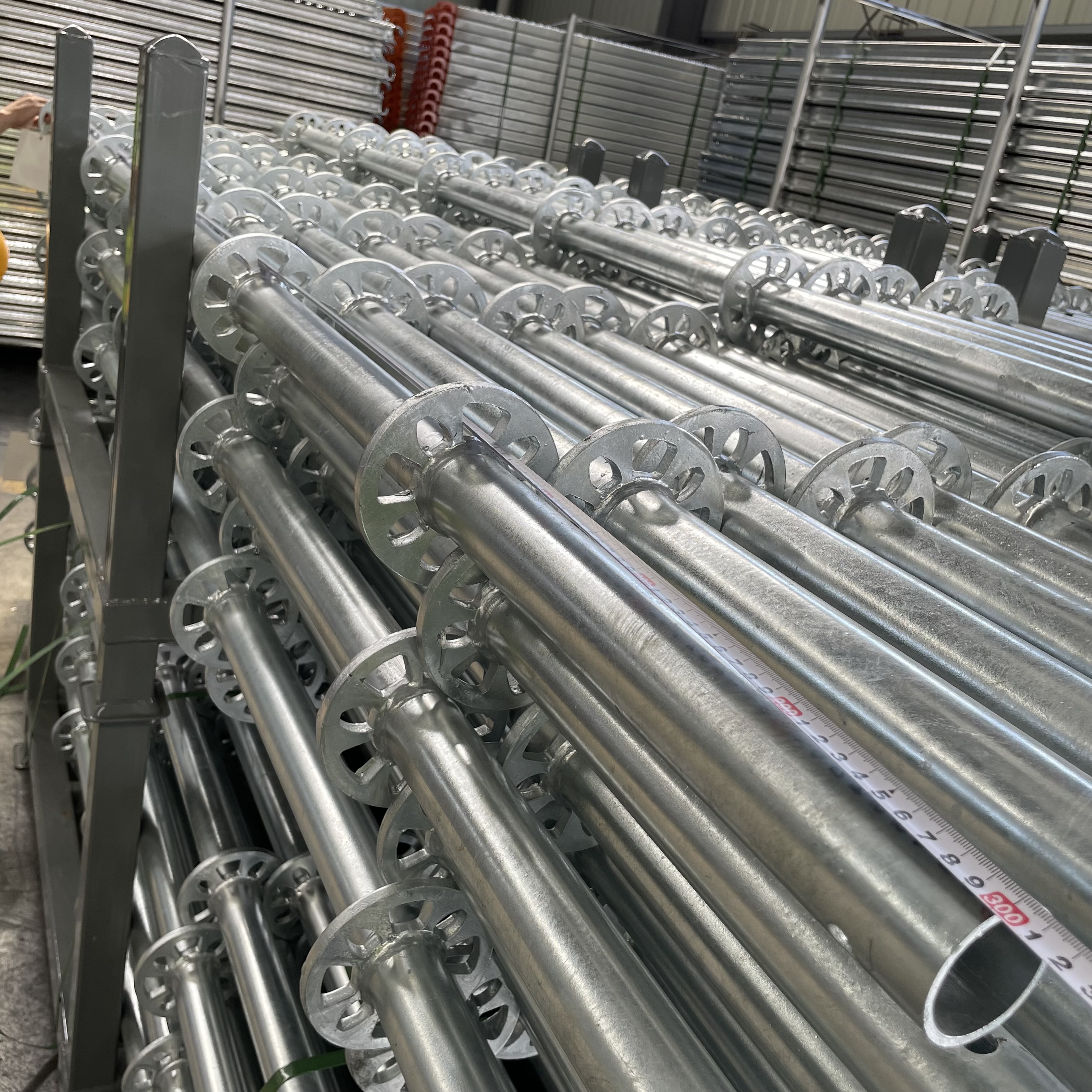

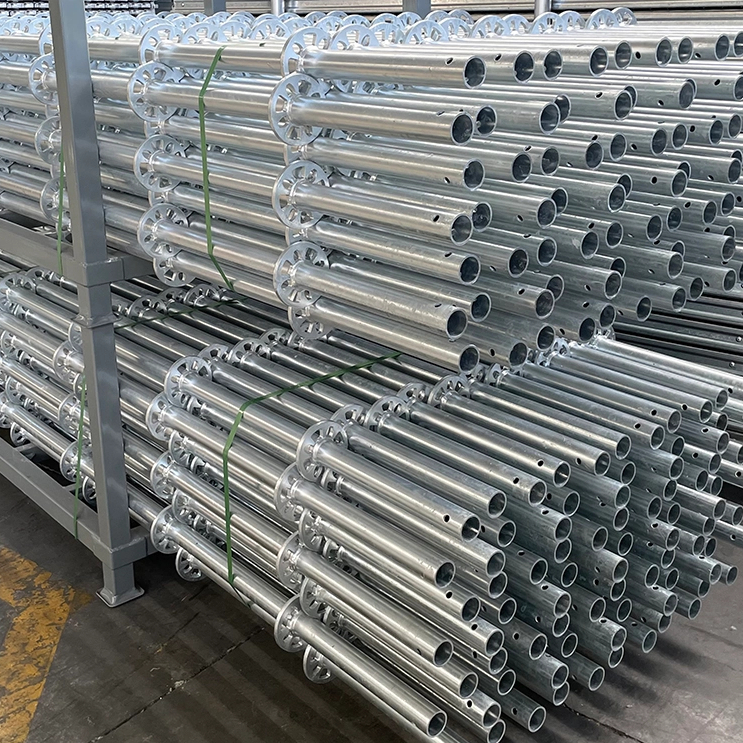

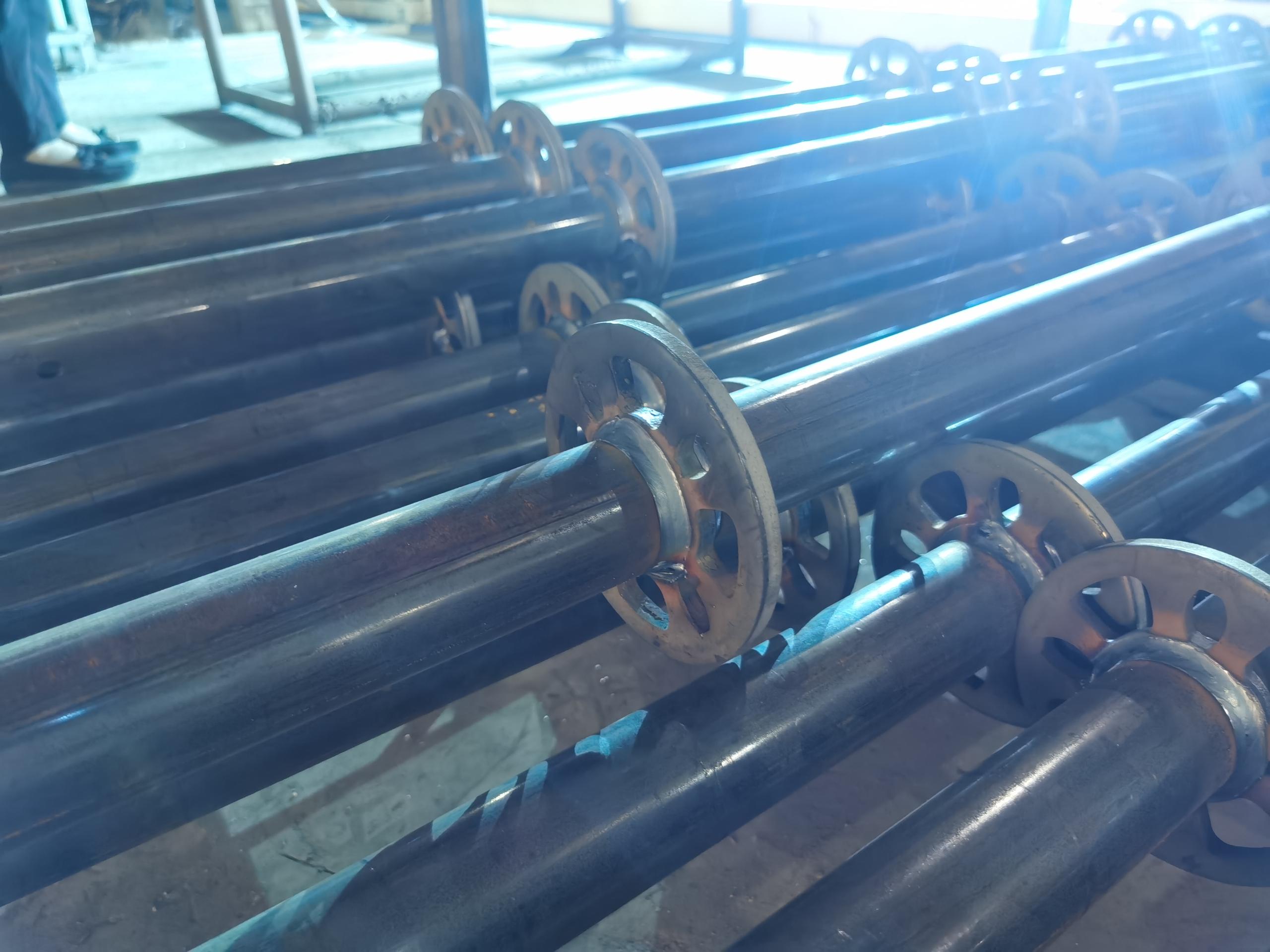

Ringlock standards are the loading bearing upright scaffold parts of the ringlock system modular scaffold, with rosettes at every 500mm (7″) intervals, used to connect with other parts of the ringlock system: ringlock ledgers, braces, brackets, etc.

|

Product Features:

Diameter: O.D48mm and O.D 60mm

Thickness: 3.2mm

Steel Grade: S355 and S235

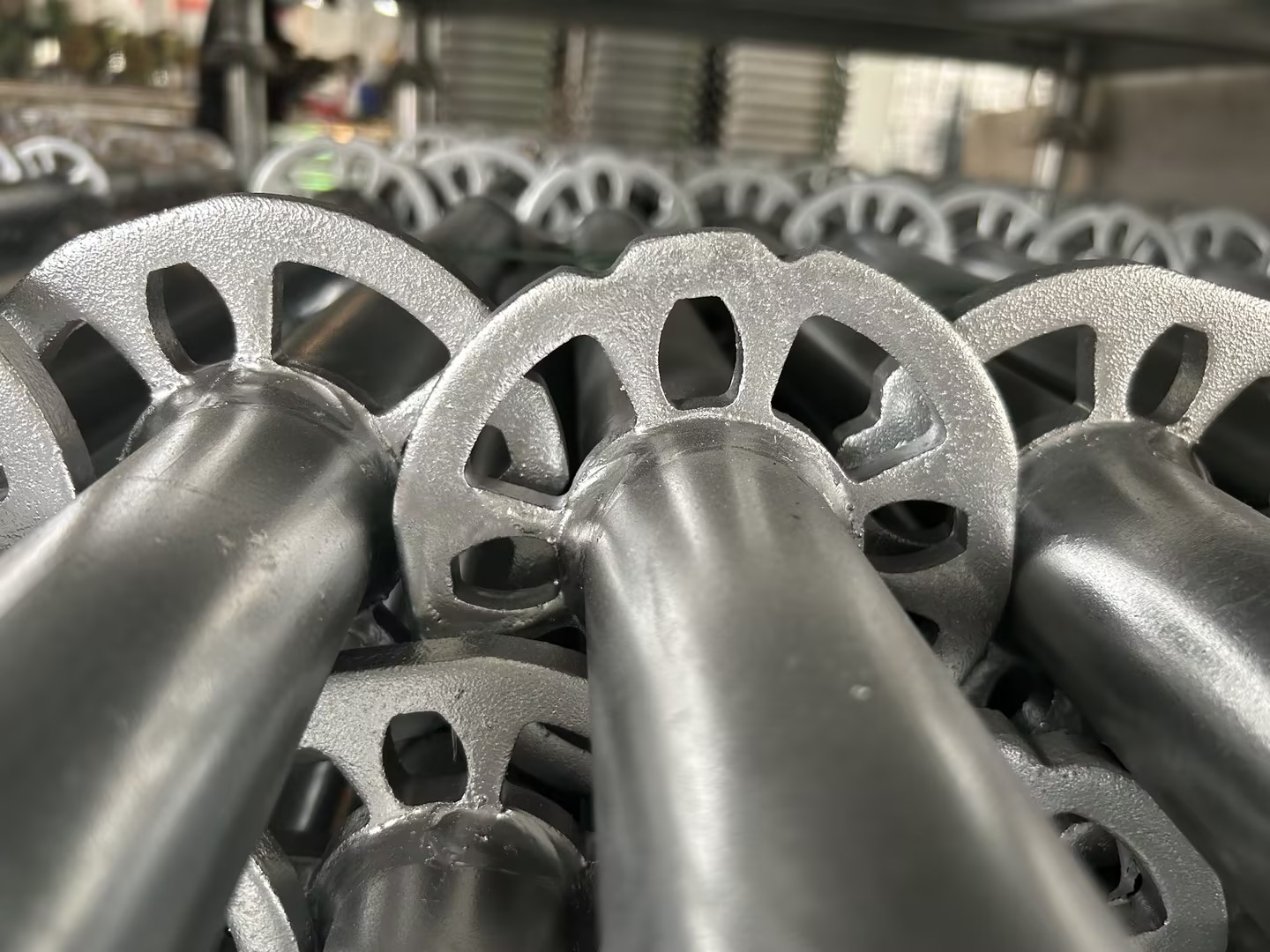

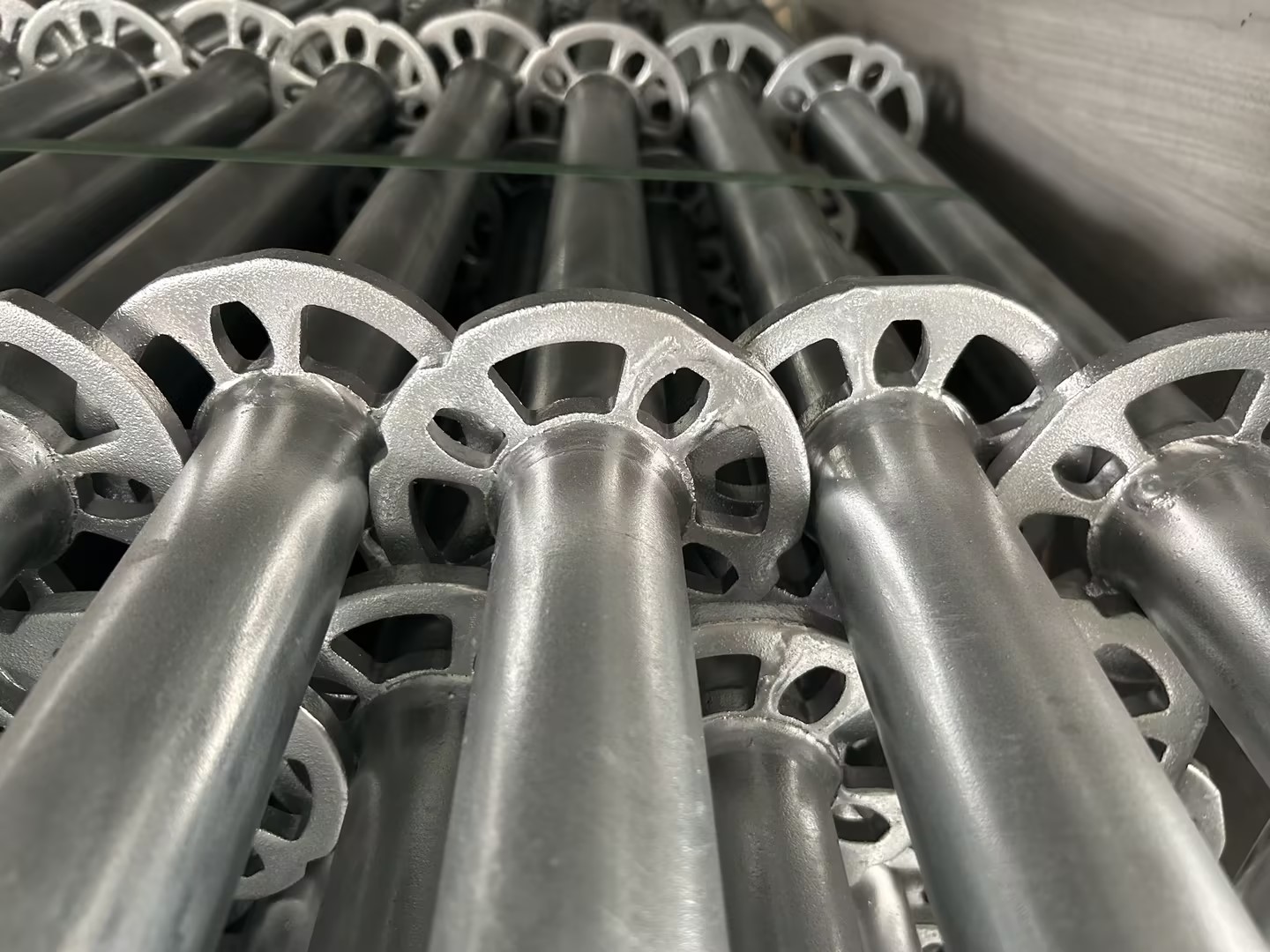

Rosettes: 8 Slots, Flexible for Multiple Angle Connection (with Ledgers, Braces, etc)

Load Bearing: Check Ringlock Scaffold Load Capacity Test Result

Standards: EN 12810/EN12811, CSA, ANSI, AS/NZS

Length: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m and 4.0m

Joint Mechanism: Coupling pin(spigot joints) stack the scaffold uprights to reach the construction height.

Bottom Connection: With Ringlock Base Collars and Scaffold Jack Base.

Finishing: Hot-dip galvanized, Powder Coated and Painted

|

Types Of Ringlock Scaffolding Standards

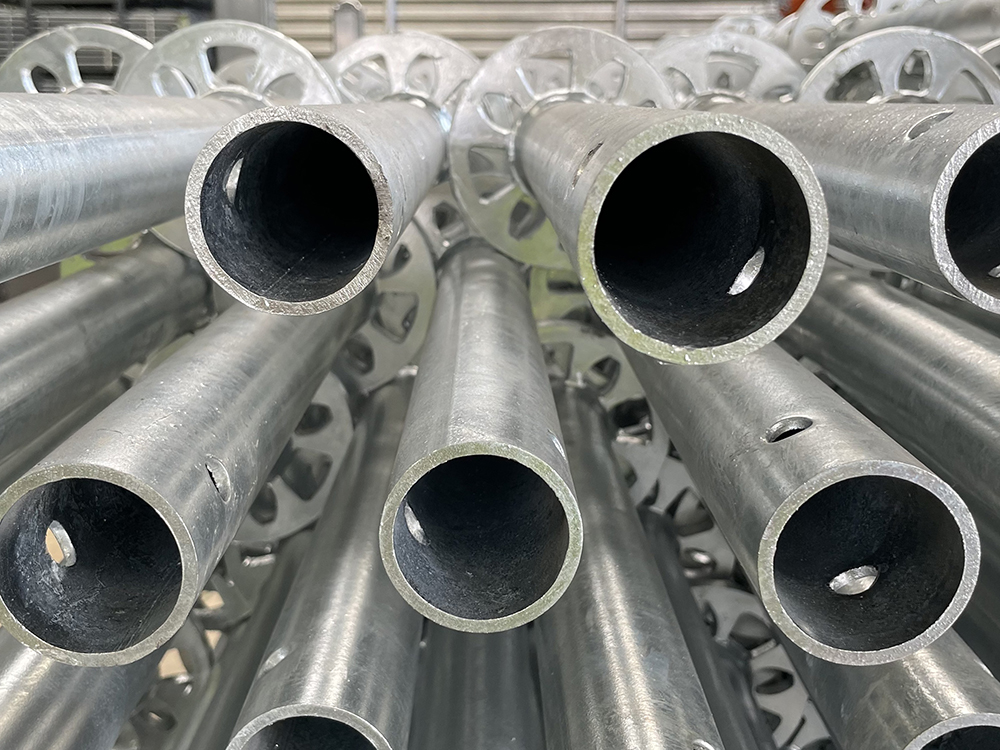

Ringlock standards are composited of scaffold tubes, rosettes or rings, and coupling pin (spigot). According to the scaffold tube diameter of the ringlock scaffold, there are typical duty(normal duty) and heavy-duty ring system scaffolding.

48mm typical duty ringlock system scaffold: made of O.D48.3×3.2mm scaffold tube, S355 steel grade

60mm heavy duty ringlock system scaffold: made of O.D60x3.2mm scaffold tube, S355 steel grade.

details

|

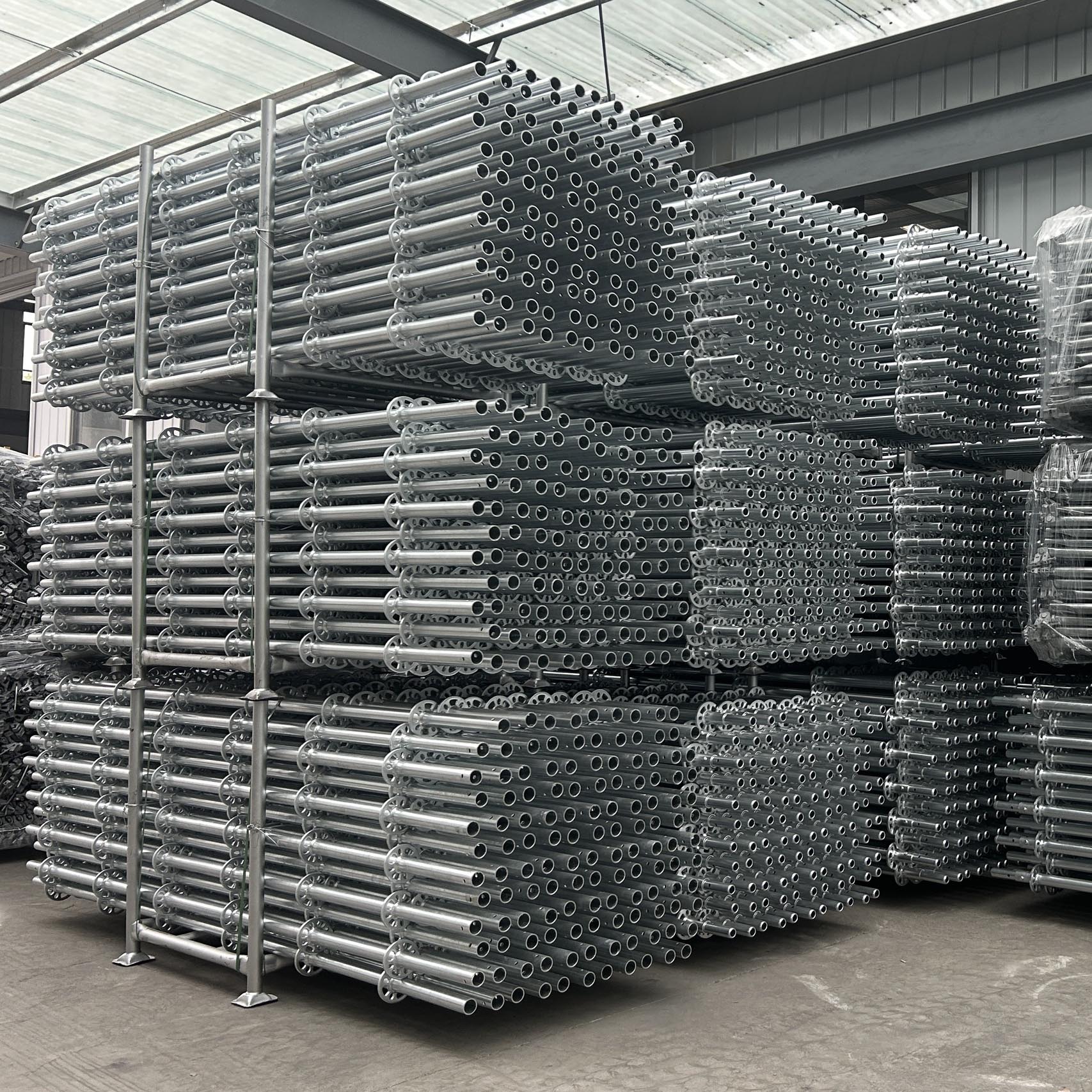

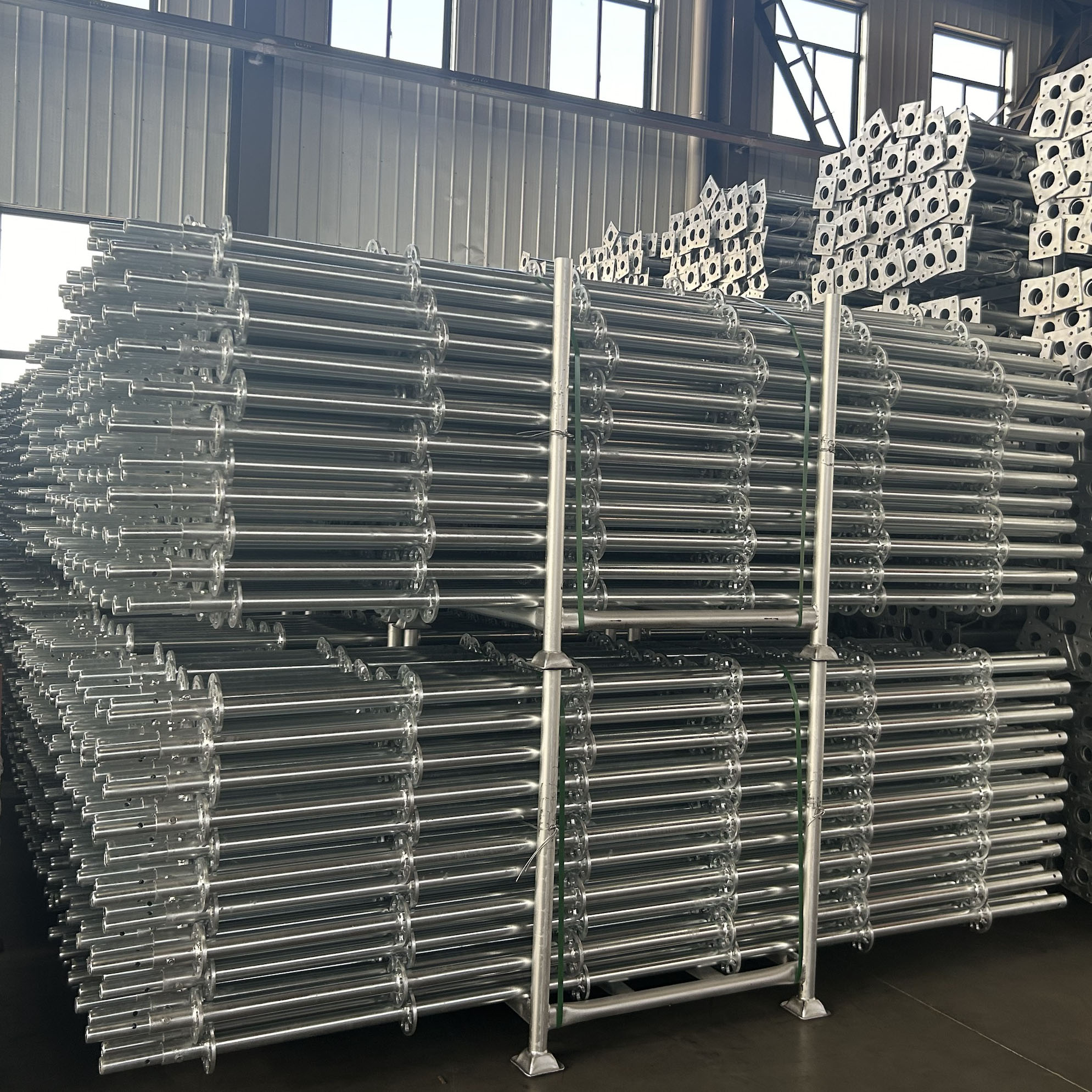

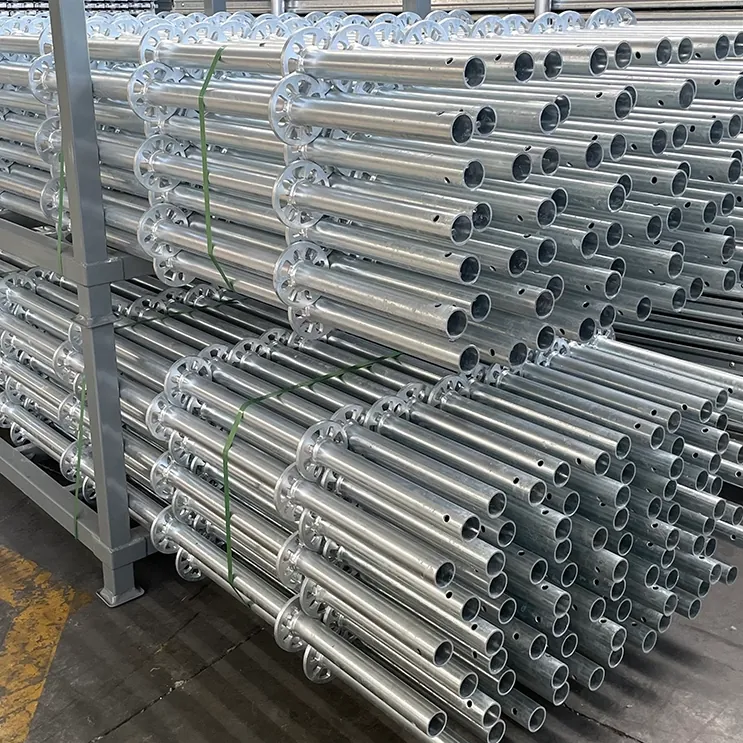

Product Packaging
