Scaffolding Base Jack

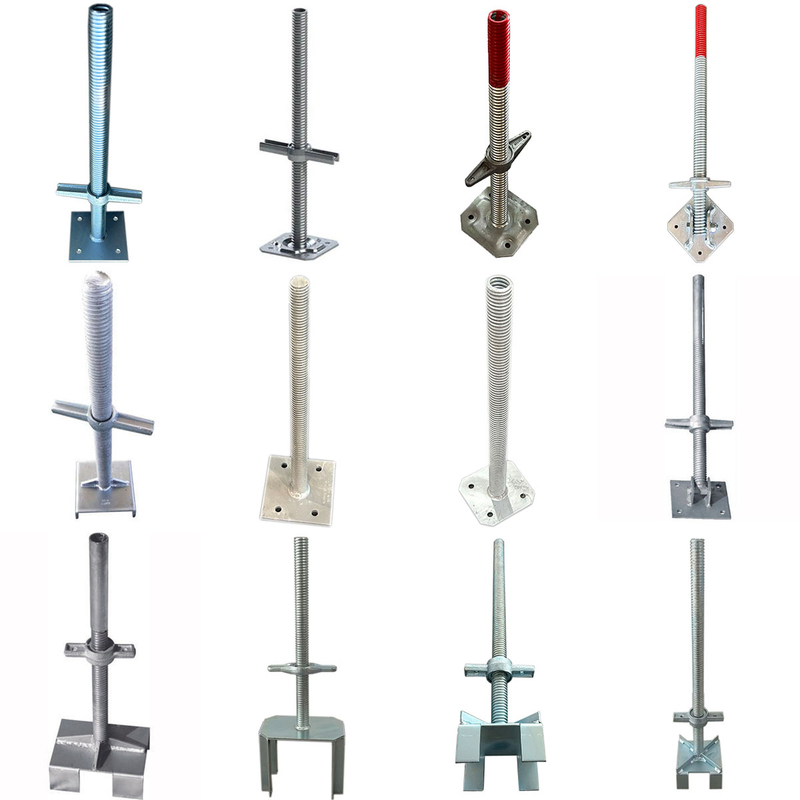

Adjustable Scaffold Base Jack / Screw Jack Base

Solid & Hollow Heavy-Duty Ground Support for Scaffolding Systems

EK Scaffolding’s adjustable base jacks provide exact height regulation and maximum weight distribution on uneven construction sites. Cold-rolled threads and hot-dip galvanized finish ensure continuous site durability under extreme loads.

• Standard Compliance: EN74-1 / BS1139 / AS/NZS 1576

• Stem Type: Solid Steel Rod / Hollow Seamless Steel Tube

• Surface Finish: Hot-Dip Galvanized / Electro-Galvanized / Painted

• System Fit: Compatible with Ringlock, Kwikstage, Cuplock, Frame & Tube Coupling Systems

Technical Specifications

Key Advantages

1. Precision Cold-Rolled Threads

• Continuous cold-rolled thread pitch enables smooth nut movement even when contaminated with concrete slurry or dirt.

2. Premium Structural Welding

• 360° robot-welded connection between stem and base plate guarantees no structural shear failure under heavy loads.

3. Corrosion-Resistant Galvanizing

• Hot-dip galvanizing layer (>80μm) protects against rusting in humid, coastal, or chemical environment jobsites.

4. High Load Safety Margin

• Engineered to pass stringent destruction tests, providing a safety factor exceeding standard construction safety regulations.

Manufacturing & Production Process

To ensure every Base Jack provides consistent load capacity and precise functionality, EK Scaffolding adheres to a standardized, seamless manufacturing process:

• Raw Material Selection

  • Uses high-grade Q235 / Q345 structural steel (seamless steel pipe or solid steel bar) to ensure superior compression resistance from the source.

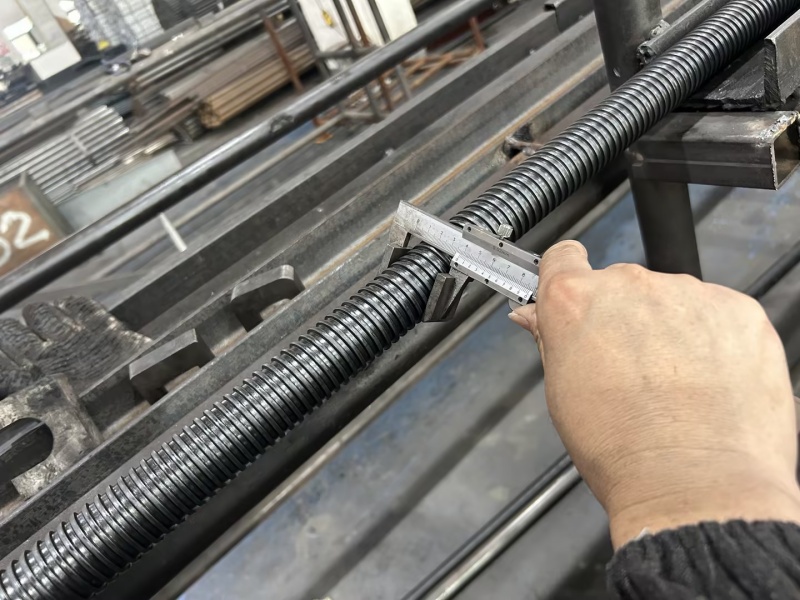

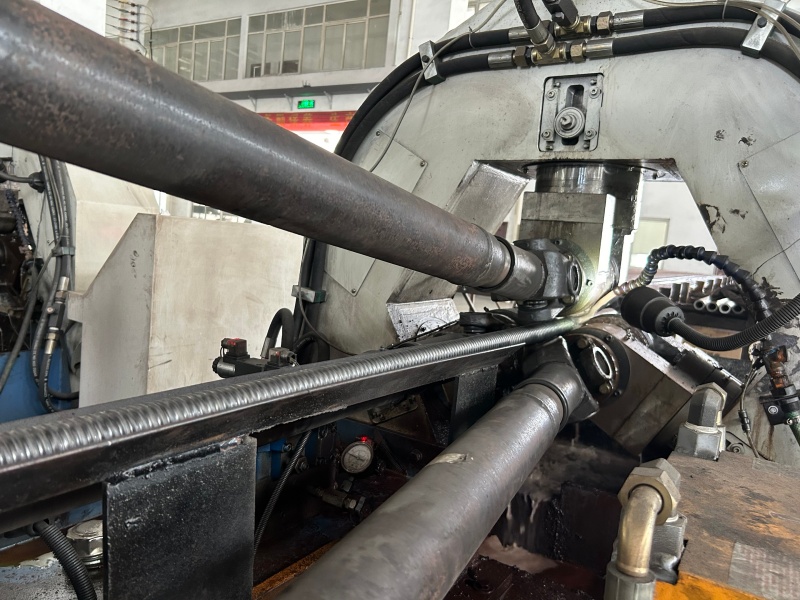

• Precision Cold-Rolled Threading

  • Replaces traditional thread-cutting with advanced extrusion cold-rolling technology. This keeps the thread metal fibers continuous, resulting in a smooth surface finish and increasing fatigue strength by over 20%.

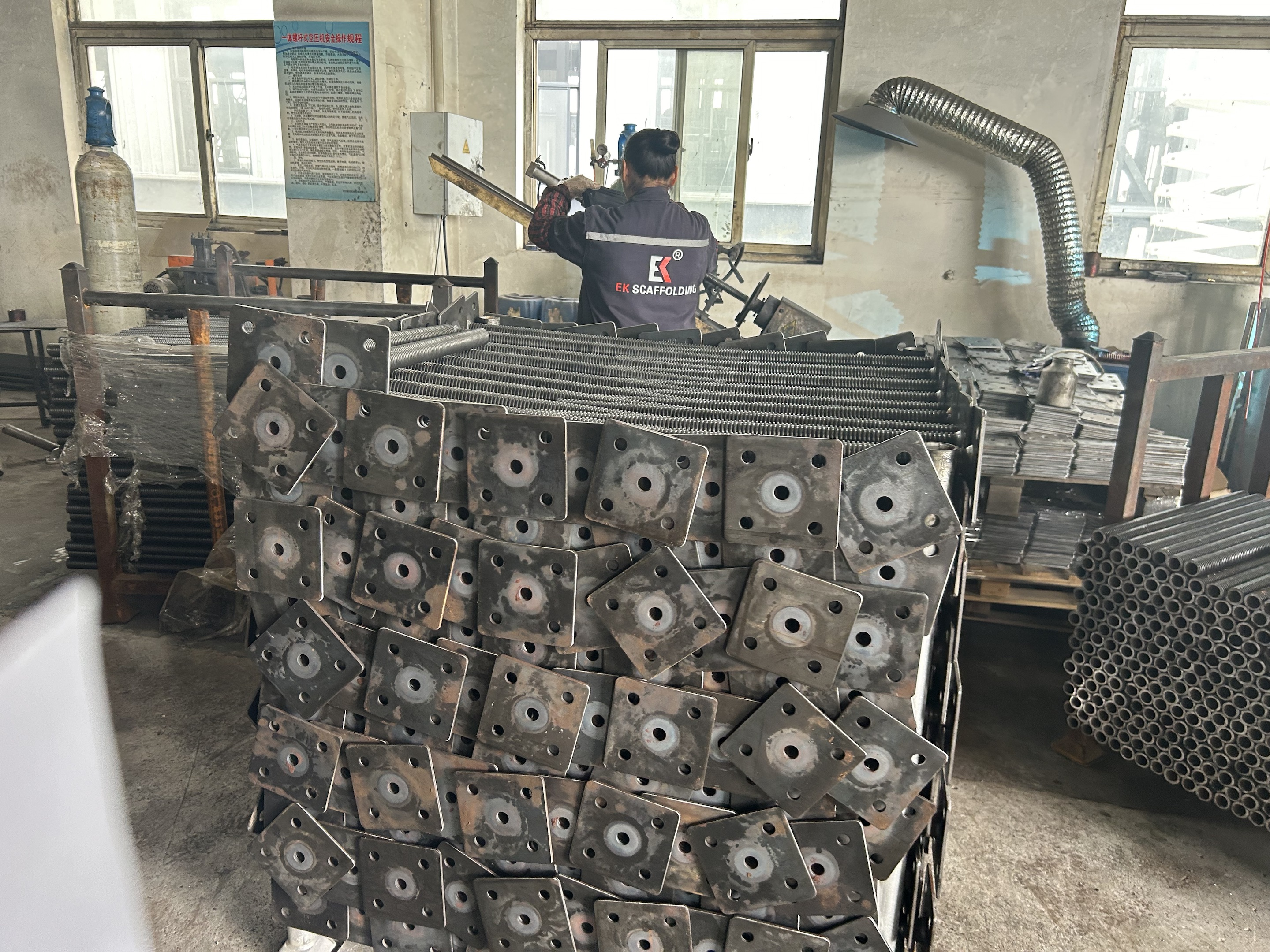

• Automated Robotic Welding

  • The connection between the screw rod and the 150×150mm base plate is welded using a 360° automated robotic welding system, guaranteeing uniform, full-penetration welds and eliminating cold welding or missed spots.

• Hot-Dip Galvanizing & Surface Finishing

  • After acid pickling and rust removal, components are immersed in a 450°C molten zinc bath for hot-dip galvanization (average zinc coating thickness >80μm), forming a durable corrosion-resistant zinc-iron alloy layer.

• Precision Thread Fit & Nut Assembly

  • Paired with high-toughness ductile iron nuts, each unit undergoes a smooth-threading test before leaving the factory to prevent jamming from concrete slurry on job sites.

Quality Control & Inspection

EK Scaffolding maintains a fully equipped testing laboratory and a strict inspection workflow to guarantee a 100% pass rate:

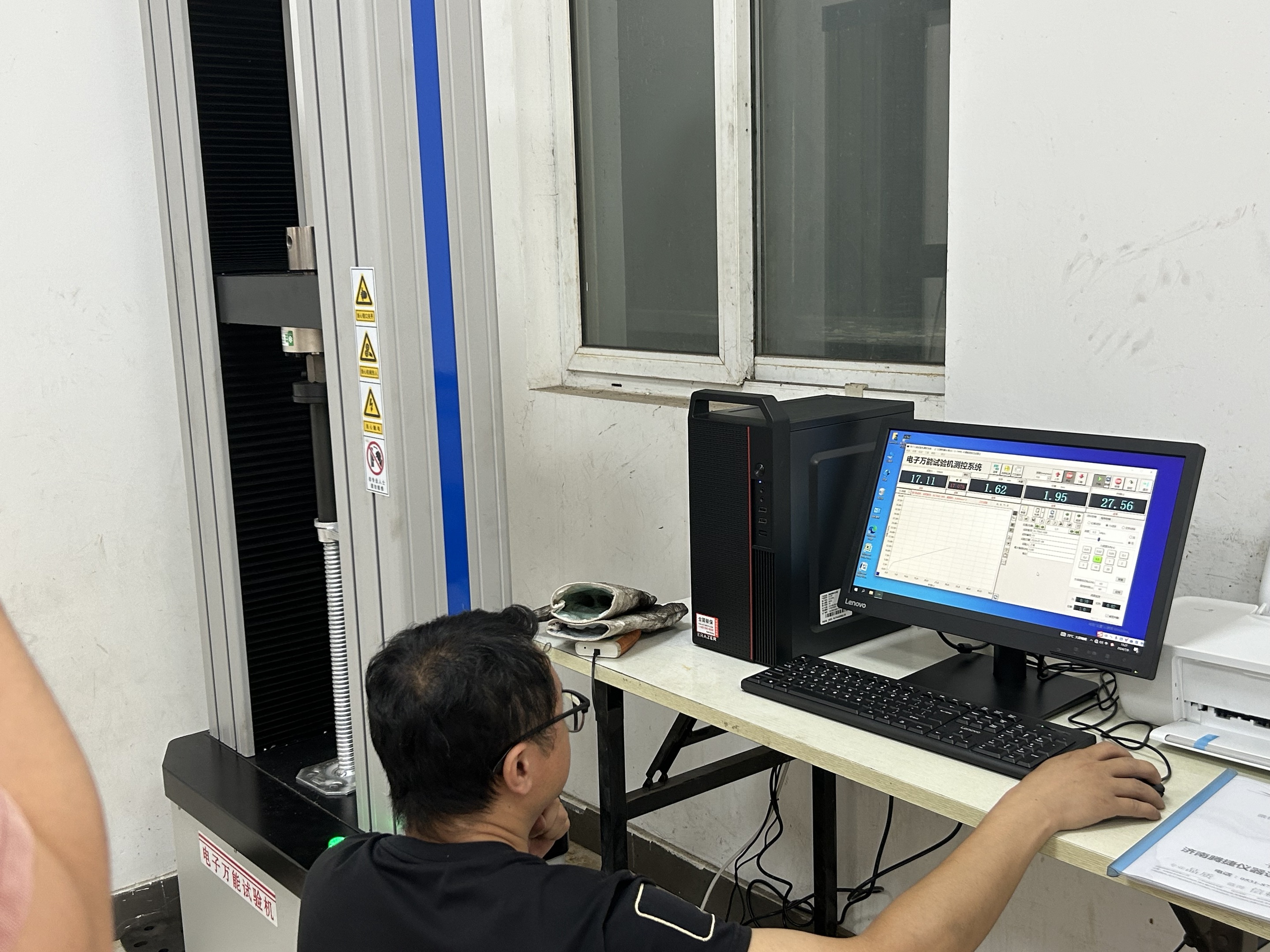

• Ultimate Compression Test: Samples are randomly selected for destructive load testing to ensure the Safe Working Load (SWL) reaches 40 KN to 100+ KN (meeting a 2.0x safety factor).

• Galvanizing Coating Thickness Test: Coating thickness is verified batch-by-batch using digital gauges to guarantee long-term rust protection.

• Weld Seam NDT Inspection: Non-destructive tensile and flaw detection tests are performed on critical structural orders to verify weld integrity between the stem and base plate.

• Dimension & Thread Pitch Inspection: Thread pitch tolerances are strictly controlled to ensure seamless compatibility with various global scaffolding systems.

Applications

• Modular Scaffolding Foundation: Base support for Ringlock and Kwikstage system scaffolding towers.

• Shoring & Formwork: Supporting heavy concrete slab formwork and beam shoring structures.

• Industrial Construction: Shipyards, oil & gas refurbishments, bridge piers, and power plant scaffolding.

Factory & Certificate Showcase

FAQ

Q1: What is the difference between solid and hollow base jacks?

Solid base jacks offer maximum heavy-duty load capacity (ideal for heavy shoring and high-rise towers), while hollow base jacks are lighter, more cost-effective, and easier to transport without sacrificing compliance standards.

Q2: Can EK Scaffolding customize base jack dimensions based on project drawings?

Yes. As an OEM/ODM manufacturer, we can manufacture custom stem diameters, base plate thickness, thread lengths, and branding marks according to your exact engineering requirements.
