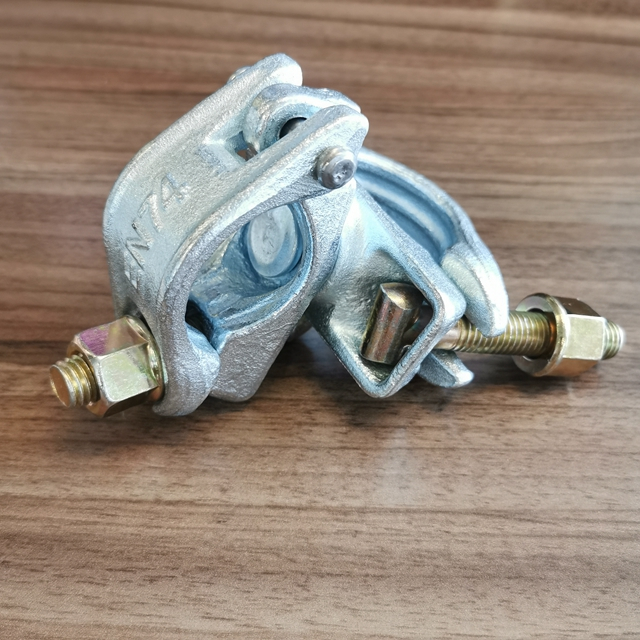

Scaffolding German Type Drop Forged Swivel Coupler

Share to:
German Type Swivel Coupler Material: Carbon Steel Q235 Surface: Zinc-plated Tube Size: 48.3mm Single Weight: 1.4kg Color: White
Availability:
Quantity:
  • Scaffolding German Type Drop Forged Double Coupler
  • EK Scaffolding
  • 73089000
  • 48.3
  • Q235
  • Zinc-Plated
  • 1.25kg

Scaffolding German Type Drop Forged Swivel Coupler


Product Description


 can improve the efficiency of scaffolding removal, save working time. Due to the advanced technology, the anti-deformation and anti-tensile properties of the product is stronger. More suitable for scaffolding and firm in structure, not easy to slide down. Anti-rust treatment makes the drop forged Swivel coupler last longer, it product after passivation, surface galvanized anti-rust treatment, Drop Forged Scaffolding Coupler corrosion resistance is better than the ordinary coupler.

All forged products use high-frequency electric furnace to heat different specifications of carbon structural steel to 950 ° C -1050 ° C austenite state, after 4000KN one-time forging can improve its organizational structure and mechanical properties, thereby improving the plasticity and mechanical properties of the product.

Product Specification


Commodity NameGerman Type Swivel Coupler
MaterialCarbon Steel Q235
Tube Size48.3x48.3mm
Single Weight1.25kg
Surface TreatmentZinc-Plated
Processing WayDrop Forged
StandardEN74-1:2005 Class B, AS1576.2, BS1139
MarkingCustomized markings on products
Production Capability2000 tons per month
PackingWoven bags with steel strip by FCL or LCL

Payment Term and Delivery term

Payment term:  1) T/T  2) L/C  3) D/P or further negotiation

Delivery term: 15-20 days against order confirmed or against receiving payment
