Galvanized Ringlock Scaffolding Standard

5 0 Reviews

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
  • Zinc-Plated

| Product Description:

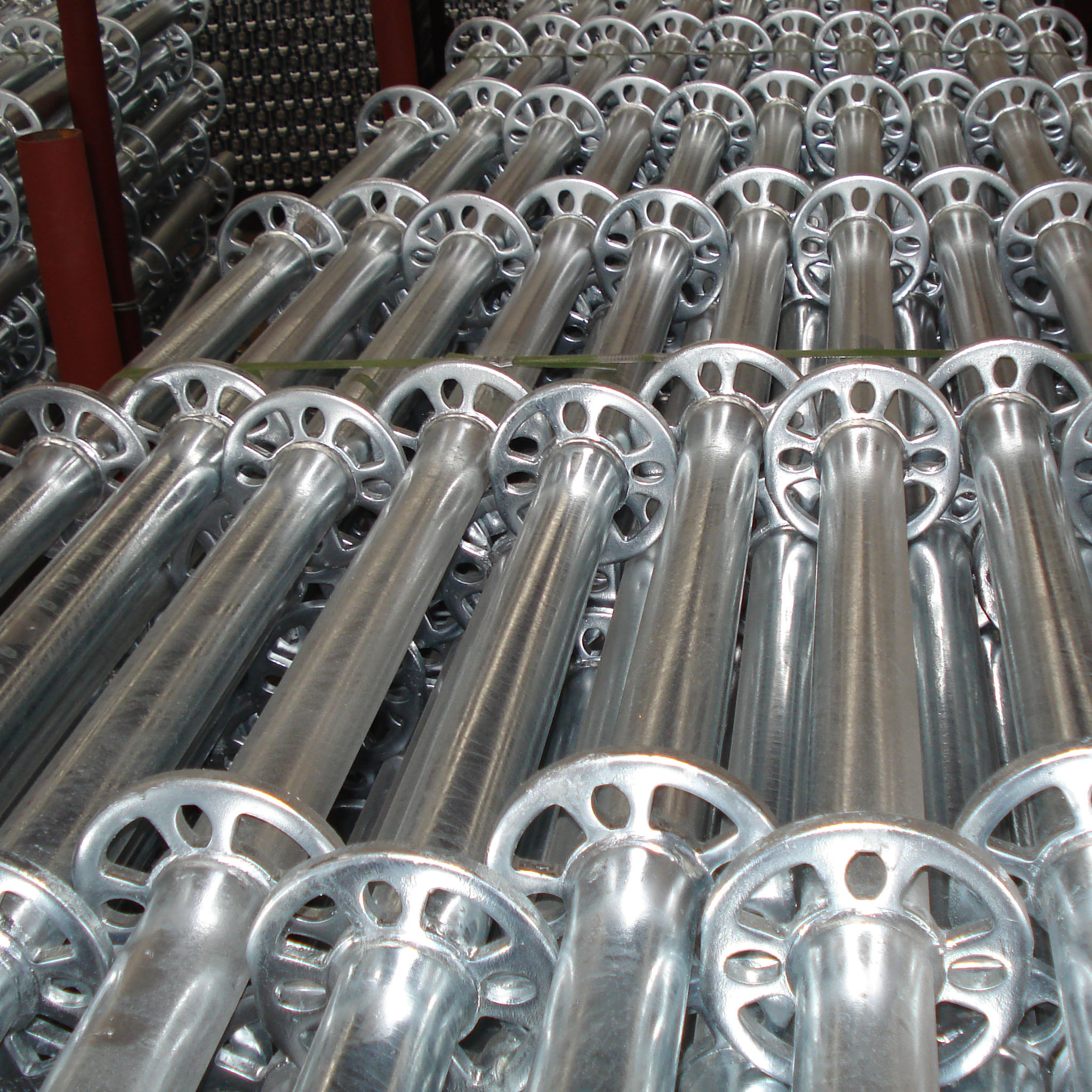

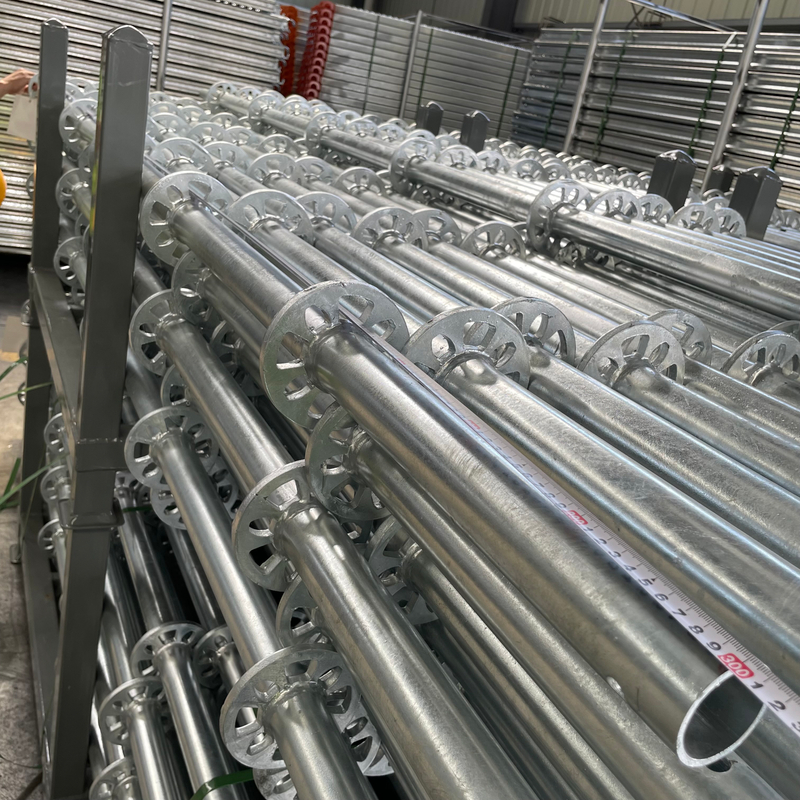

Ringlock standards are the loading bearing upright scaffold parts of the ringlock system modular scaffold, with rosettes at every 500mm (7″) intervals, used to connect with other parts of the ring system: ringlock ledgers, braces, brackets, etc.


| Product Features:

Diameter: O.D48mm and O.D 60mm

Thickness: 3.2mm

Steel Grade: S355 and S235

Rosettes: 8 Slots, Flexible for Multiple Angle Connection (with Ledgers, Braces, etc)

Load Bearing: Check Ringlock Scaffold Load Capacity Test Result

Standards: EN 12810/EN12811, CSA, ANSI, AS/NZS

Length: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m and 4.0m

Joint Mechanism: Coupling pin(spigot joints) stack the scaffold uprights to reach the construction height.

Bottom Connection: With Ringlock Base Collars and Scaffold Jack Base.

Finishing: Hot-dip galvanized, Powder Coated and Painted


| Types Of Ringlock Scaffolding Standards

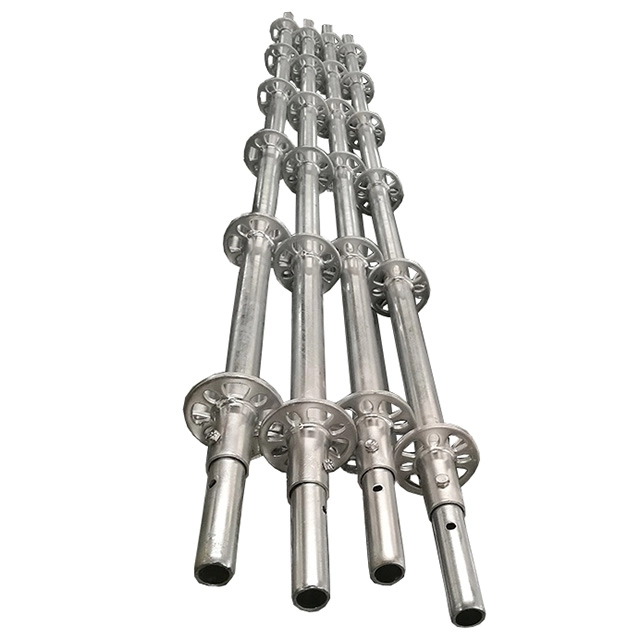

Ringlock standards are composited of scaffold tubes, rosettes or rings, and coupling pin (spigot). According to the scaffold tube diameter of the ringlock scaffold, there are typical duty(normal duty) and heavy-duty ring system scaffolding.

48mm typical duty ring system scaffold: made of O.D48.3×3.2mm scaffold tube, S355 steel grade

60mm heavy duty ring system scaffold: made of O.D60x3.2mm scaffold tube, S355 steel grade.

ringlock scaffolding standardringlock scaffolding standardringlock scaffolding standardringlock scaffolding standardringlock scaffolding standardringlock scaffolding standardringlock scaffolding standardringlock scaffolding standard







         Model




         Length




         Weight(kg)




         EKRS-500




         0.5M




         3.25




         EKRS-1000




         1M




         5.82




         EKRS-1500




         1.5M




         8.21




         EKRS-2000




         2M




         10.58




         EKRS-2500




         2.5M




         12.92




         EKRS-3000




         3M




         15.98




         EKRS-4000




         4M




         20.32
