Hot Dip Galvanized Ringlock Scaffolding System

5 0 Reviews

Galvanized Steel Scaffolding Standard Vertical for Ringlock System

Galvanized Steel Ringlock Scaffolding System

Share to:

Ringlock Scaffolding 1) Material: Q235, Q345 2) Tube Size: 48.3x3.2mm 3) Spigot or Spigotless are available 4) Surface Treatment: HDG 5) Joint Intervals: 500mm Intervals 6) Length: 2500mm(500m - 4000mm available) 7) Marking: Customized markings on goods 8) Standard: BS1139, EN74

Availability:

Quantity:



Inquire Add to Basket

Model:
Ringlock Scaffolding
Brand:
EK
Code:
730890000
Tube Size:
48.3x3.2mm
Material:
Q235
Surface Treatment:
Hot-Dip Galvanized
Weight:
12.9KG

Product Description

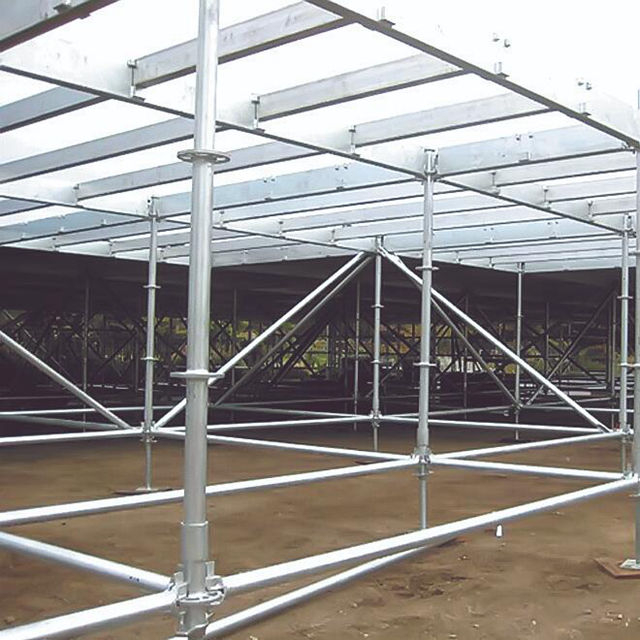

Hot Dip Galvanized Steel Ringlock Scaffolding System

| Product Description

EK steel ringlock scaffolding system is versatile high-strength galvanized steel modular scaffold which is built for increased strength, versatility and usability. It is widely used in all kinds of indoor and outdoor jobs like maintenance, cleaning, refurnishing.

1）Check that all components are on site, undamaged and that they are functioning correctly – (refer to Checklist and Quantity Schedules). Damaged or incorrect components shall not be used.

2）The safe working load is 200kgs/㎡, per platform level.

| Product Features:

Diameter: O.D48mm and O.D 60mm

Thickness: 3.2mm

Steel Grade: S355 and S235

Rosettes: 8 Slots, Flexible for Multiple Angle Connection (with Ledgers, Braces, etc)

Load Bearing: Check Ringlock Scaffold Load Capacity Test Result

Standards: EN 12810/EN12811, CSA, ANSI, AS/NZS

Length: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m and 4.0m

Joint Mechanism: Coupling pin(spigot joints) stack the scaffold uprights to reach the construction height.

Bottom Connection: With Ringlock Base Collars and Scaffold Jack Base.

Finishing: Hot-dip galvanized, Powder Coated and Painted
