Ringlock Scaffolding Ledger
The Ringlock scaffold system makes it simple to scaffold a variety of intricate building plans and elevations thanks to its adaptable modular units and limitless angular capabilities. In other words, it is the preferred scaffold system for all construction, maintenance, energy production, overhead cabling, chemical plants, refineries, shipyards, and the majority of building trades.

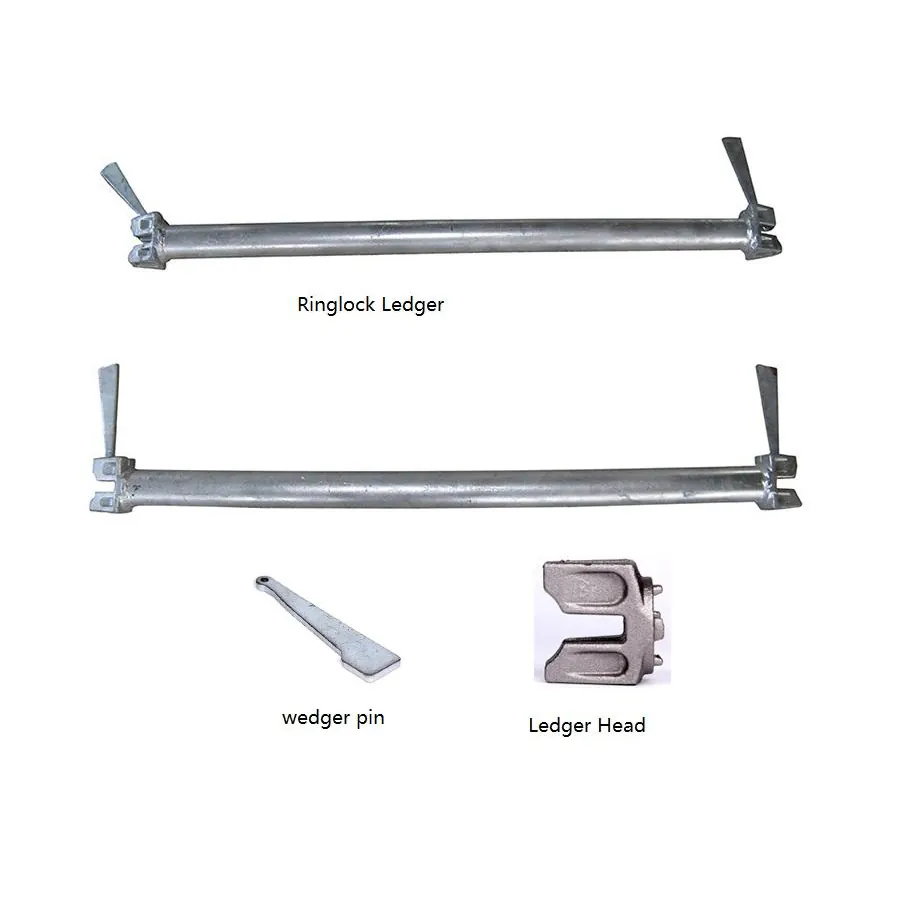

Ringlock ledger is an important component to horizontal connect ringlock scaffolding system. The steel pipe welded with two ledger plug. Two ledger plugs are welded at both tubes ends. The ledger plugs can be designed. The end pins inserted into the rosette. And then it made up of the basis ringlock scaffolding system. Ledger plug is produced by cast-steel using the wax mold. Were made of high tensile structural steel with a hot-dip galvanized finish. And it is firm and durable. To supply the stability for the whole ring lock scaffolding system. It can used as mid-rail and top or hand rail, guardrails.
Product Advantages of Ringlock ledgers
1. Firm and durable
2. High hardness
3. Easy to install
4. High price performance ratio
There are several different types of ledger heads for your choice. We can also produce your design if the CAD drawing or sample is offered.
The ringlock system of EK scaffolding strictly complies with EN 12810/EN12811, ANSI/SSFI SC100-5/05, AS/NZS 1576 and other standards. Surface treatment is hot-dip galvanized. Painted or powder coated Ringlock Scaffolding Standard is also available, depending on customer requirements.
If your project just needs our Ringlock scaffolding, please don’t hesitate to contact us. Free samples and competitive price will be afforded.
|Ringlock Scaffolding Horizontal / Ledger |
Q235 Steel Tubes 48.3 x 3.0mm
|EK-RLL001||Ringlock Ledger 0.65M||0.65M||2’2”||3.0KG||6.6LBS|
|EK-RLL002||Ringlock Ledger 1.07M||1.07M||3’6”||4.4KG||9.7LBS|
|EK-RLL003||Ringlock Ledger 1.57M||1.57M||5’2”||6.2KG||13.7LBS|
|EK-RLL004||Ringlock Ledger 2.13M||2.13M||7’||8.2KG||18.0LBS|
|EK-RLL005||Ringlock Ledger 2.44M||2.44M||8’||9.3KG||20.4LBS|
|EK-RLL006||Ringlock Ledger 3.05M||3.05M||10’||11.4KG||25.1LBS|
