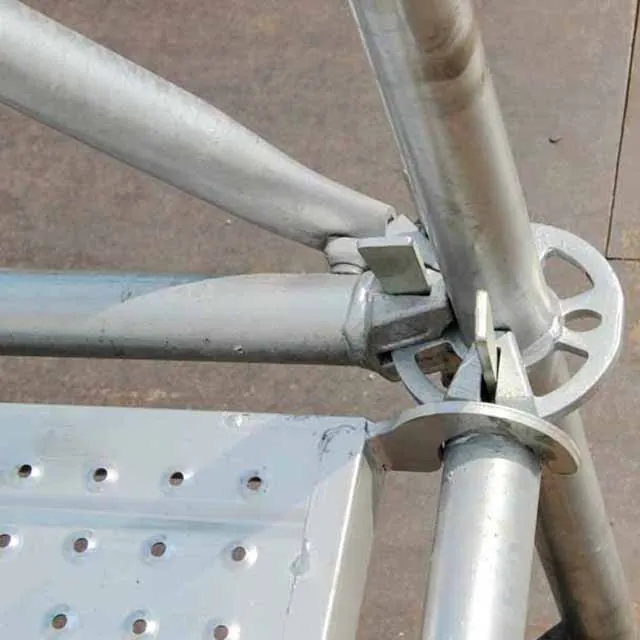

Ringlock scaffolding

Ringlock Scaffolding

Ringlock scaffolding has gained a firm foothold in the global market and is one of the most commonly used modular scaffolding. Ringlock scaffolding is considered the most modern, versatile and functional scaffolding system in terms of its load-bearing strength. The different components used in Ringlock scaffolding are multiple Ringlock Scaffolding Standard, Ringlock Scaffolding Ledger, base jack, Ringlock Scaffolding Diagonal Brace and Ringlock.



5 reasons to use Ringlock scaffolding are:

1) Ringlock scaffolding provides a higher degree of flexibility to lock different numbers of angles and use notches for accurate alignment, multiple angles can be set simultaneously through one attachment point.

2) Ringlock scaffolding provides 8 connections in a unique rosette arrangement in different system segments, which can be self-locked with a hammer through adaptive wedges.

3) Ringlock scaffolding has the best frame stability among similar products, supports complete vertical bar, horizontal bar, and diagonal bar structures in 3D space, and provides a complete scaffolding system. The scaffold material is hot-dip galvanized and therefore particularly durable, resistant to environmental influences and has a particularly high load-bearing capacity.

4) The Ringlock scaffolding material adopts cold galvanized or hot galvanized anti-corrosion technology to ensure the service life and reliability of components.

5) One of the core advantages of Ringlock scaffolding system is fast erection and dismantling time. The Ringlock Scaffolding Standard, Ringlock Scaffolding Ledger and Ringlock Scaffolding Diagonal Brace can be secured to the Ringlock with just a few blows of the hammer. This not only saves time, but also saves manpower. This applies not only to the assembly and disassembly of scaffolding, but also to maintenance tasks such as cleaning materials.



Ringlock Scaffolding

Apart from these reasons, Ringlock scaffolding's load-bearing capacity has been proven to be superior to similar products. Rosettes offer flexibility and options that are not only unique, but support many different build types with slab formwork, bridge formwork, and more.



Ringlock scaffolding installation steps:

1. Place the base jack according to the site, and adjust the adjustable base nut to roughly the same level;

2. Install the Ringlock Scaffolding Standard vertically on the adjustable base jack, and install an adjacent Ringlock Scaffolding Standard in the same way;

3. Fasten two Ledgers with the corresponding distance between the installed standard and Ringlock fasteners;

4. Install the adjacent Ringlock Scaffolding Standard and fix it with Ringlock Scaffolding Ledger;

5. Continue to install the Ringlock Scaffolding Standard, and buckle the Ringlock Scaffolding Ledger to form a unit body with four vertical poles;

6. Use a spirit level or a spirit level to rotate and adjust the base to adjust the level of the erected base;

7. After adjusting the level of the chassis, install the corresponding Ringlock Scaffolding Diagonal Brace one by one;

8. Use a hammer to hammer down the bolts of Ringlock Scaffolding Ledger and Ringlock Scaffolding Diagonal Brace one by one;

9. Use the same method to continue installing Ringlock Scaffolding Standard, Ringlock Scaffolding Ledger, and Ringlock Scaffolding Diagonal Brace on the chassis.
