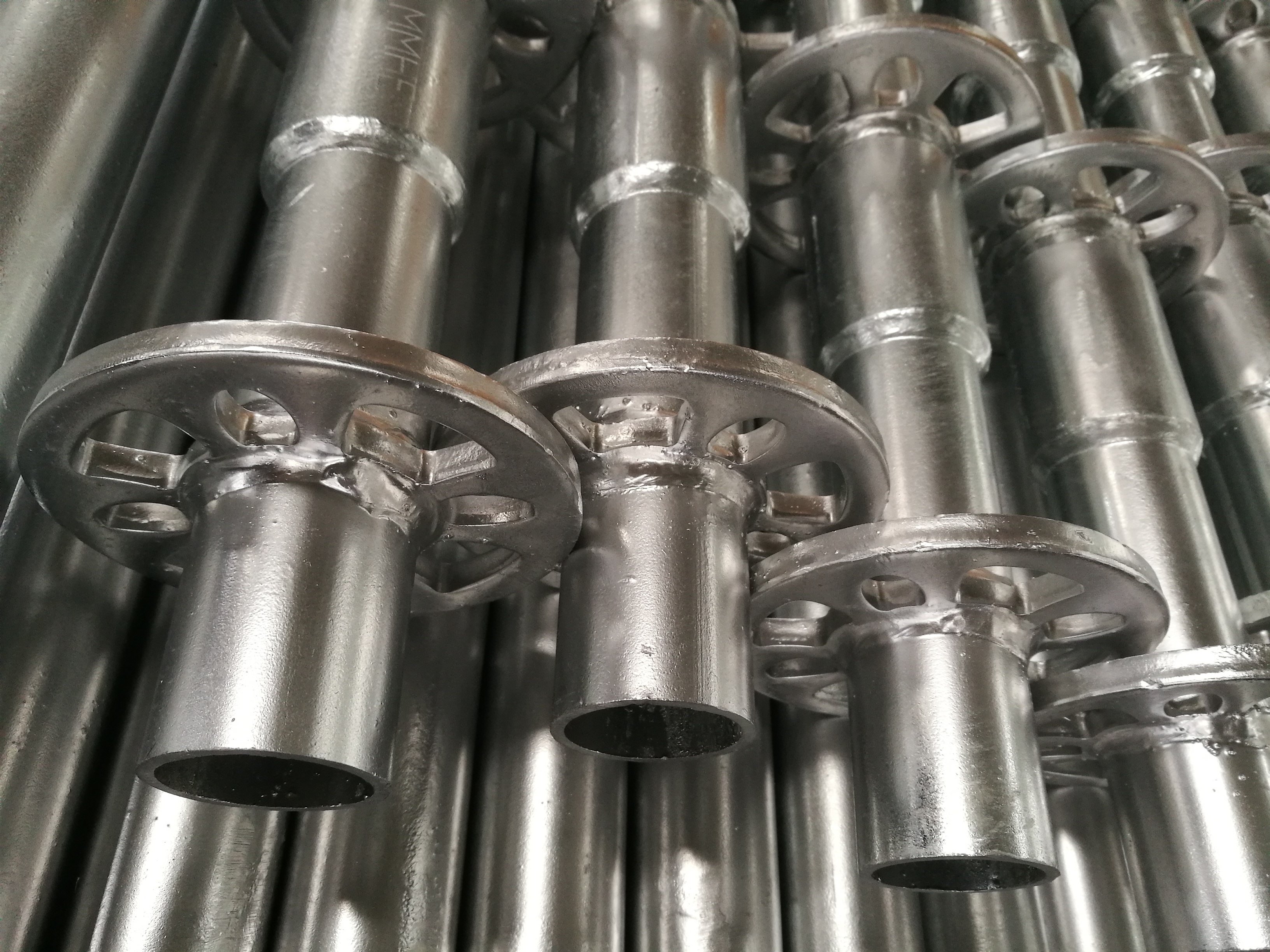

Ringlock standard, also known as ringlock vertical, is a component of the ringlock scaffolding system. It uses Q235 or Q345 high-strength steel and is hot-dip galvanized on the surface. Each standard piece is welded with a 0.5-meter rosette, and each rosette can be used to connect four to eight horizontal pieces. This rosette can provide different angles for the installation of crossbars and diagonal braces, thereby playing a supporting role in the construction of complex structures. The common lengths of Ringlock standard range from 0.5 meters, 1 meter, 1.5 meters, 2 meters, 2.5 meters, and 3 meters.

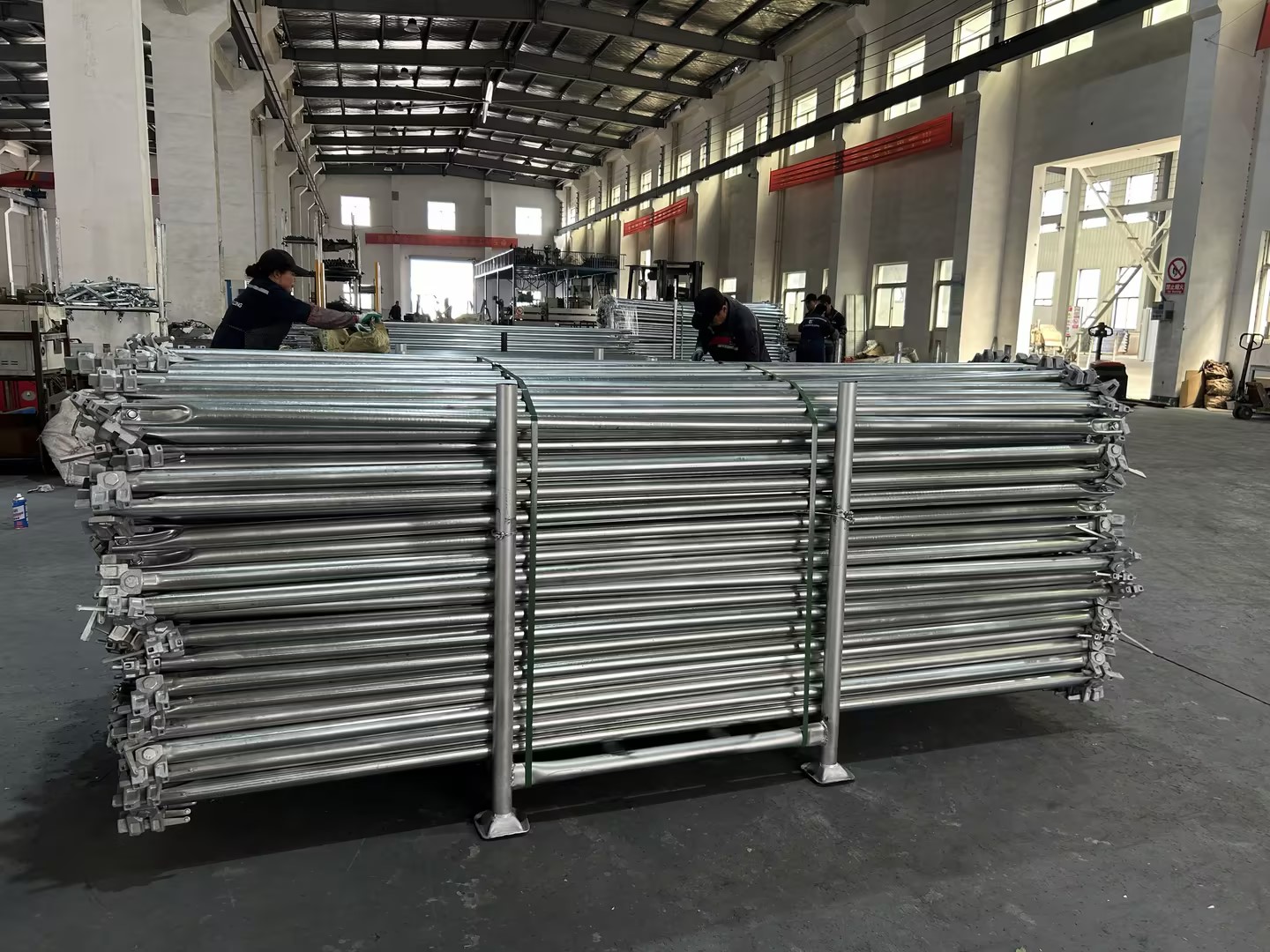

Ringlock Ledger
Ringlock ledger is an important horizontal component in the ringlock scaffolding system, used to provide stable support and safety for the construction site. The Ringlock ledger is equipped with pins at both ends, which can be quickly inserted into the ringlock node of the ringlock standard and locked. The pin connection method can make the installation process faster and more efficient. In addition to connecting the ringlock standard, the ringlock ledger can also strengthen the overall structure and improve the deformation resistance of the scaffolding. Common sizes include 0.3m, 0.6m, 0.9m, 1.2m, 1.5m, 1.8m and 2.5m.

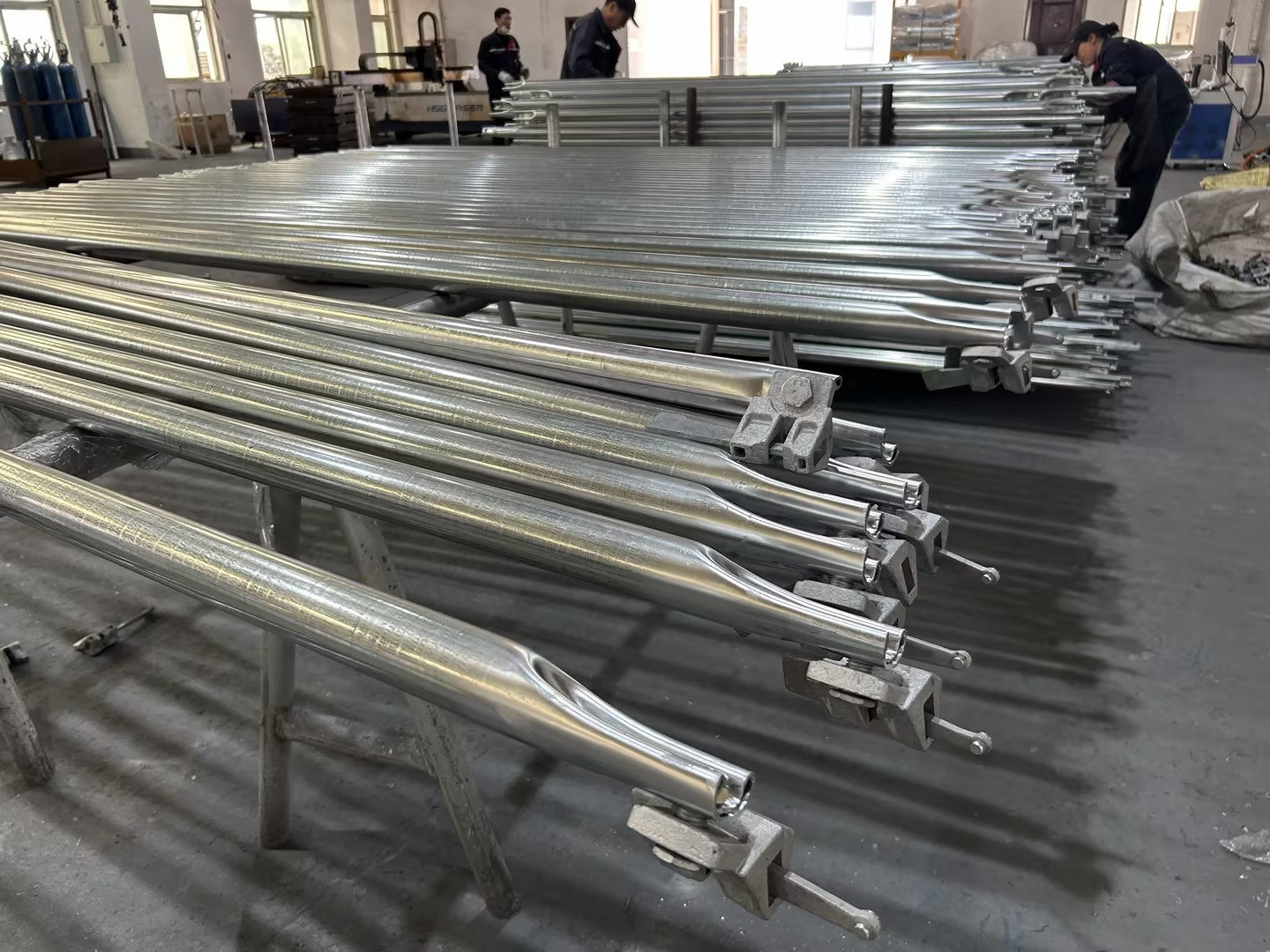

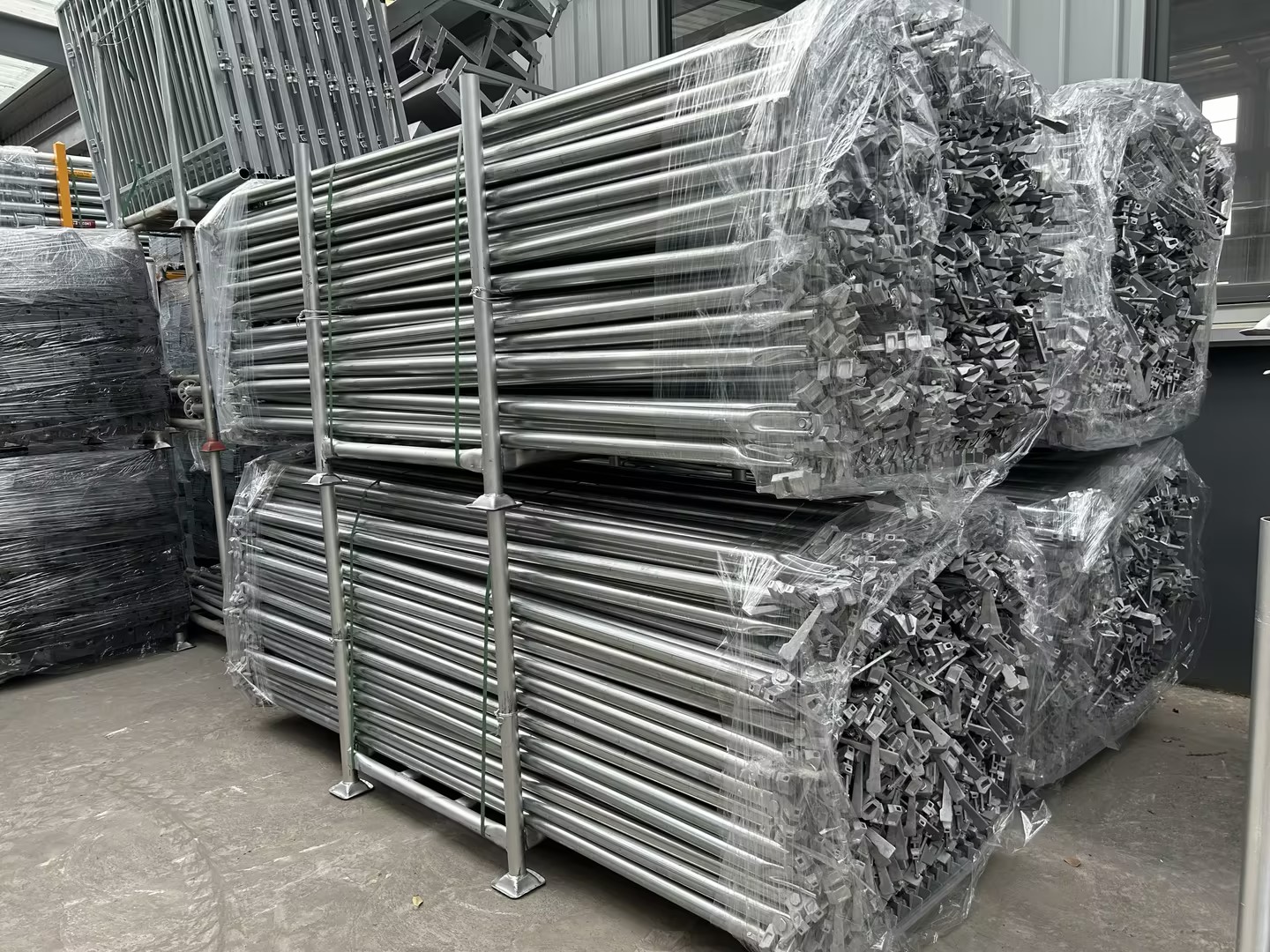

Ringlock Diagonal Brace
Ringlock bay brace is also called ringlock diagonal brace. Ringlock diagonal brace provides diagonal support in the scaffolding system, which can enhance the overall structure's ability to resist tilting and deformation. It can be used in conjunction with the ringlock scaffolding system stairs as a railing or handrail. It is particularly important in construction projects involving high-rise buildings and complex structures, thereby improving the stability of the scaffolding during construction and ensuring construction safety.

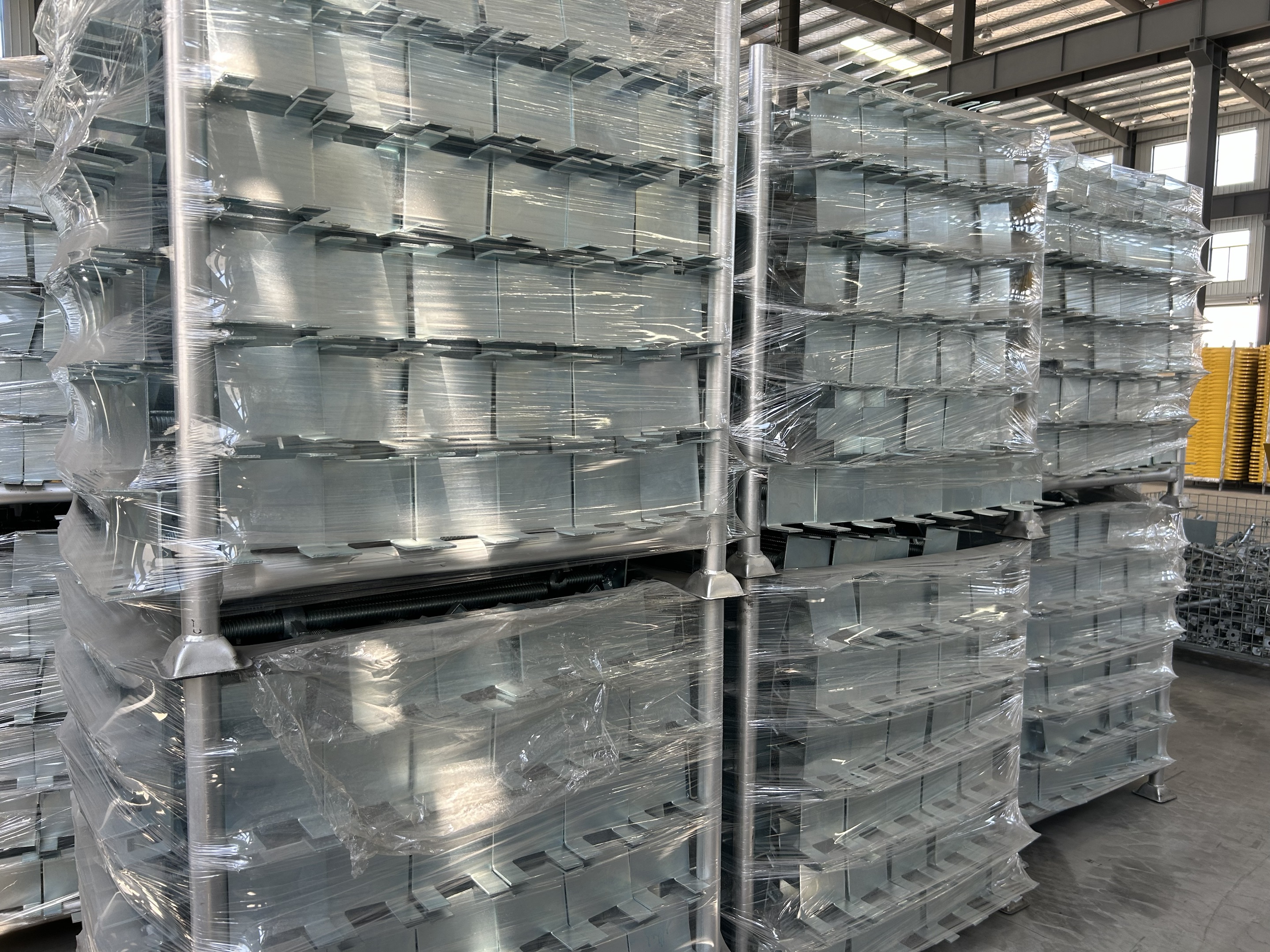

Scaffolding Walk Board

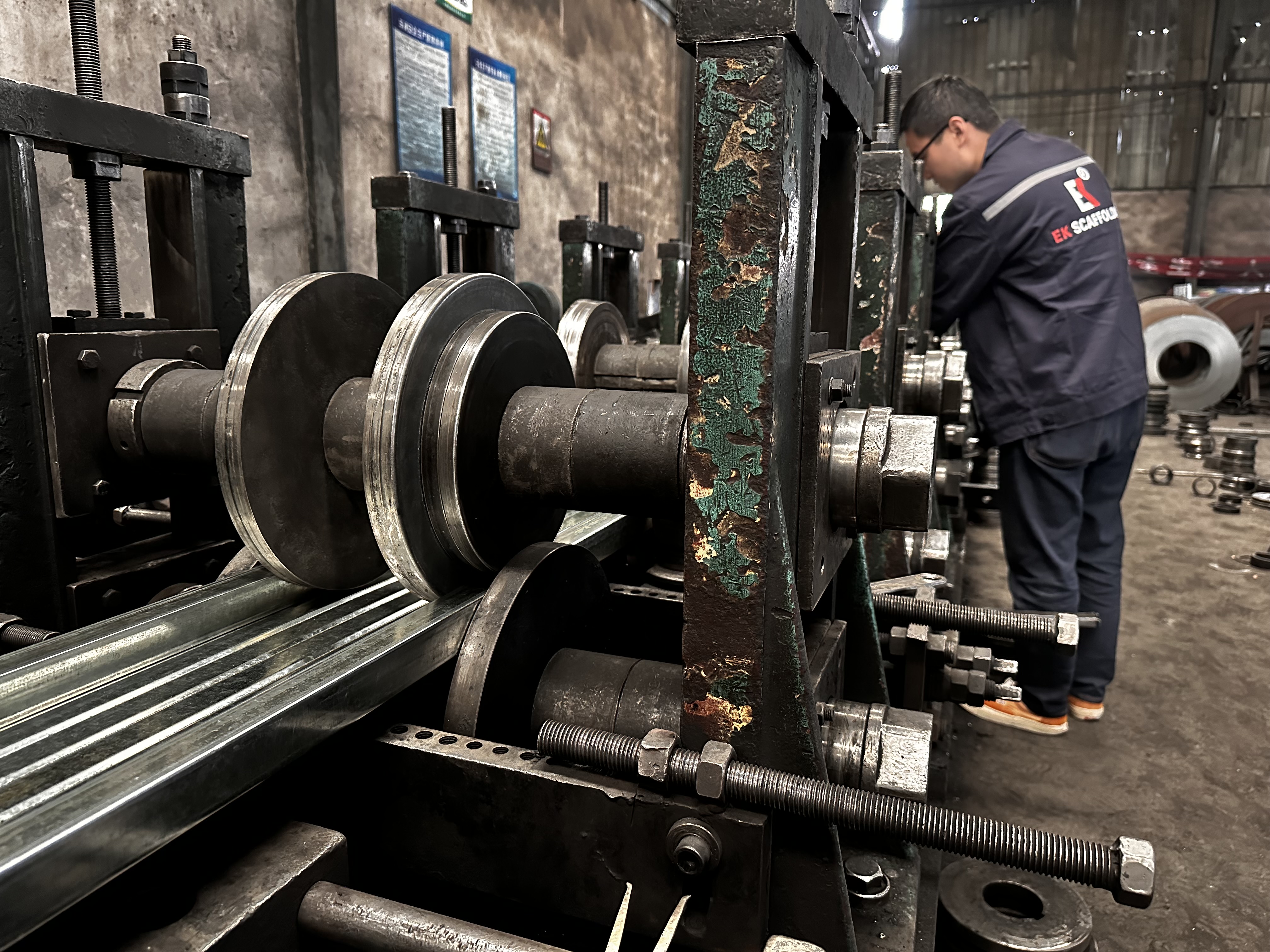

Scaffolding walk board is used to build a working platform in the scaffolding system. It is an accessory of the scaffolding system. The scaffolding walk board uses a galvanized surface and is equipped with punched holes to prevent workers from slipping. The reinforcing rib design can enhance the bearing capacity of the steel plate and can effectively prevent deformation, rust and corrosion. Different sizes and support types can be selected according to market or customer needs. As a construction platform, it is made of high-quality steel or aluminum with high load-bearing capacity and non-slip surface to ensure the safety of construction workers. Common sizes range from 1 meter to 3 meters, and the width is 0.3 meters to 0.5 meters.

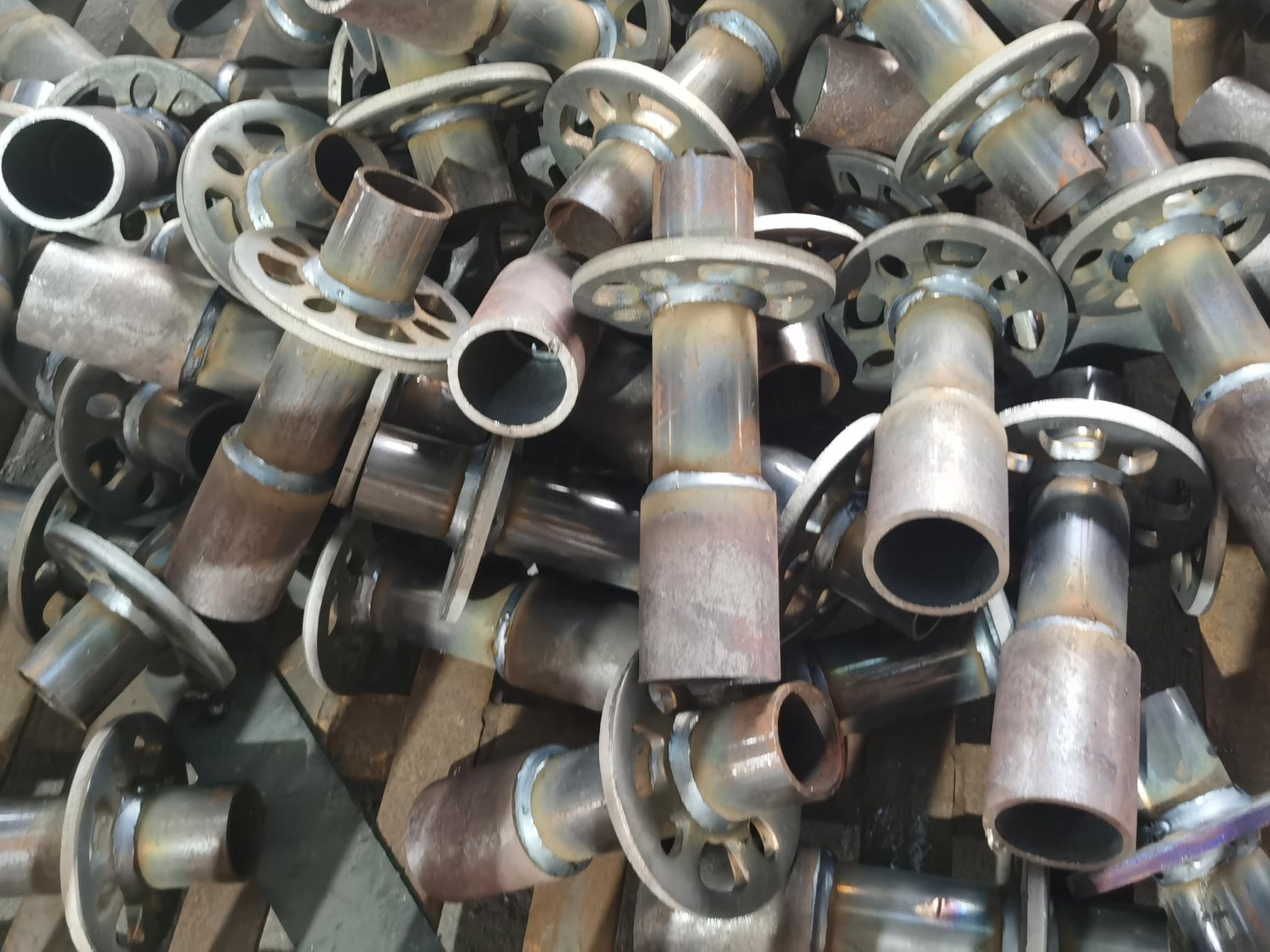

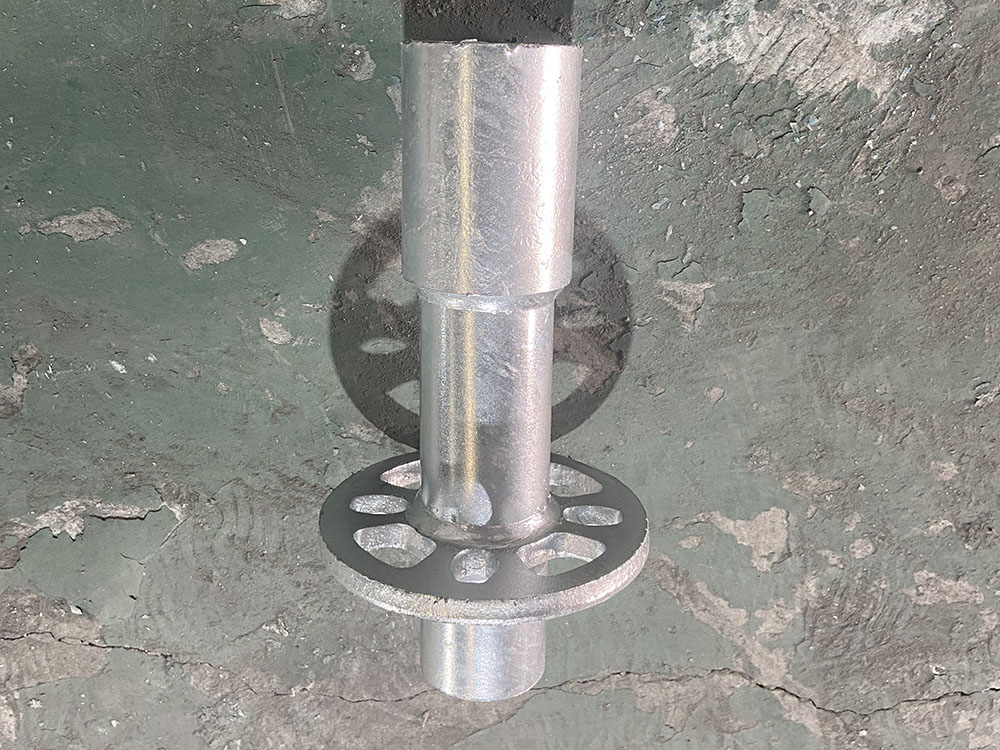

Base Collar
The base collar is the starting component of the ringlock scaffolding system. It consists of an inner tube, a socket outer tube and a rosette, which can be installed on a fixed or adjustable base. The base collar is a vital initial component in the ringlock scaffolding system because it fits tightly, thereby improving the stability and safety of the scaffolding system. The base collar is made of high-quality Q235 and Q355 steel, and the surface is provided with spray painting, powder coating and hot-dip galvanizing.

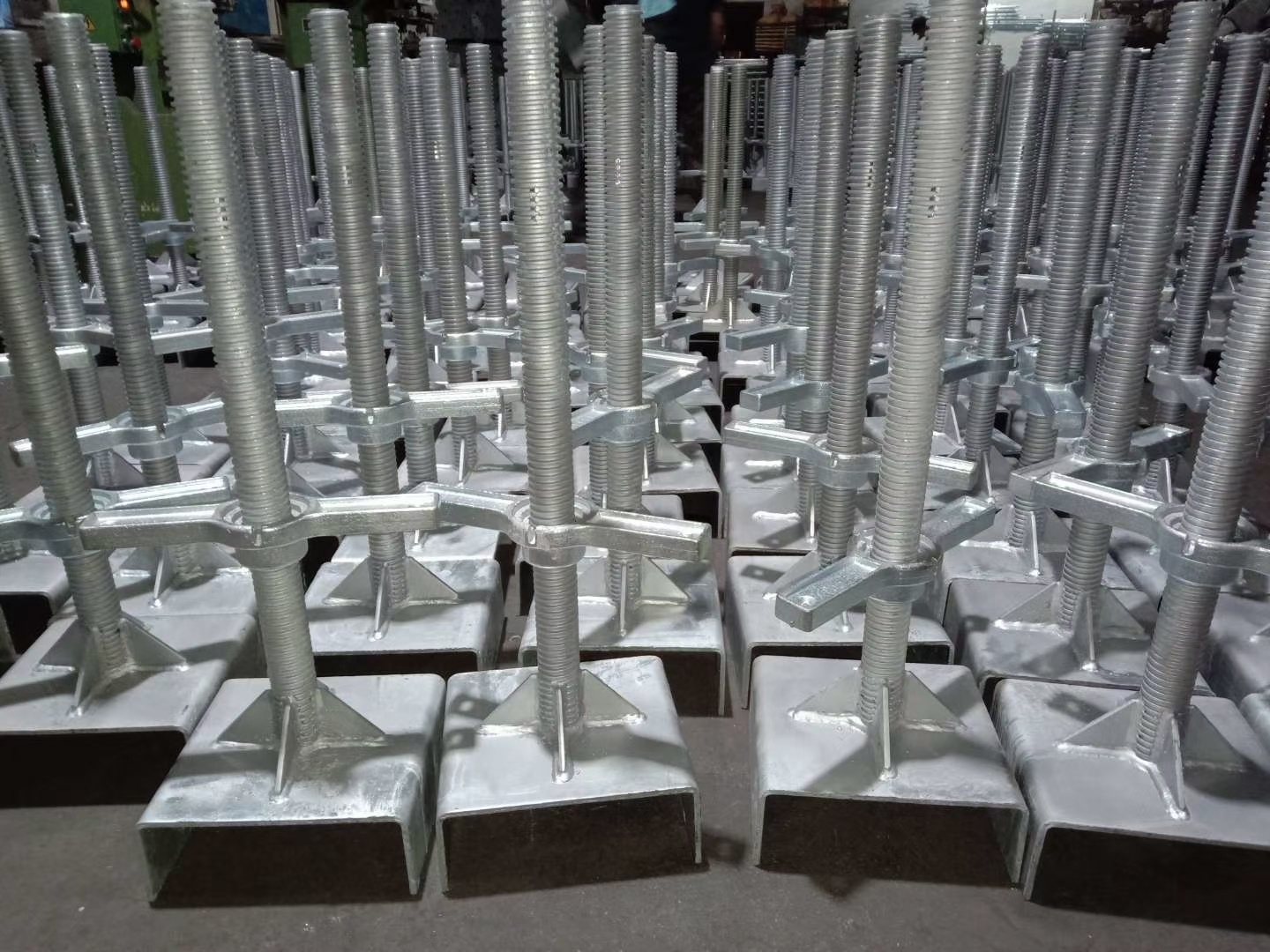

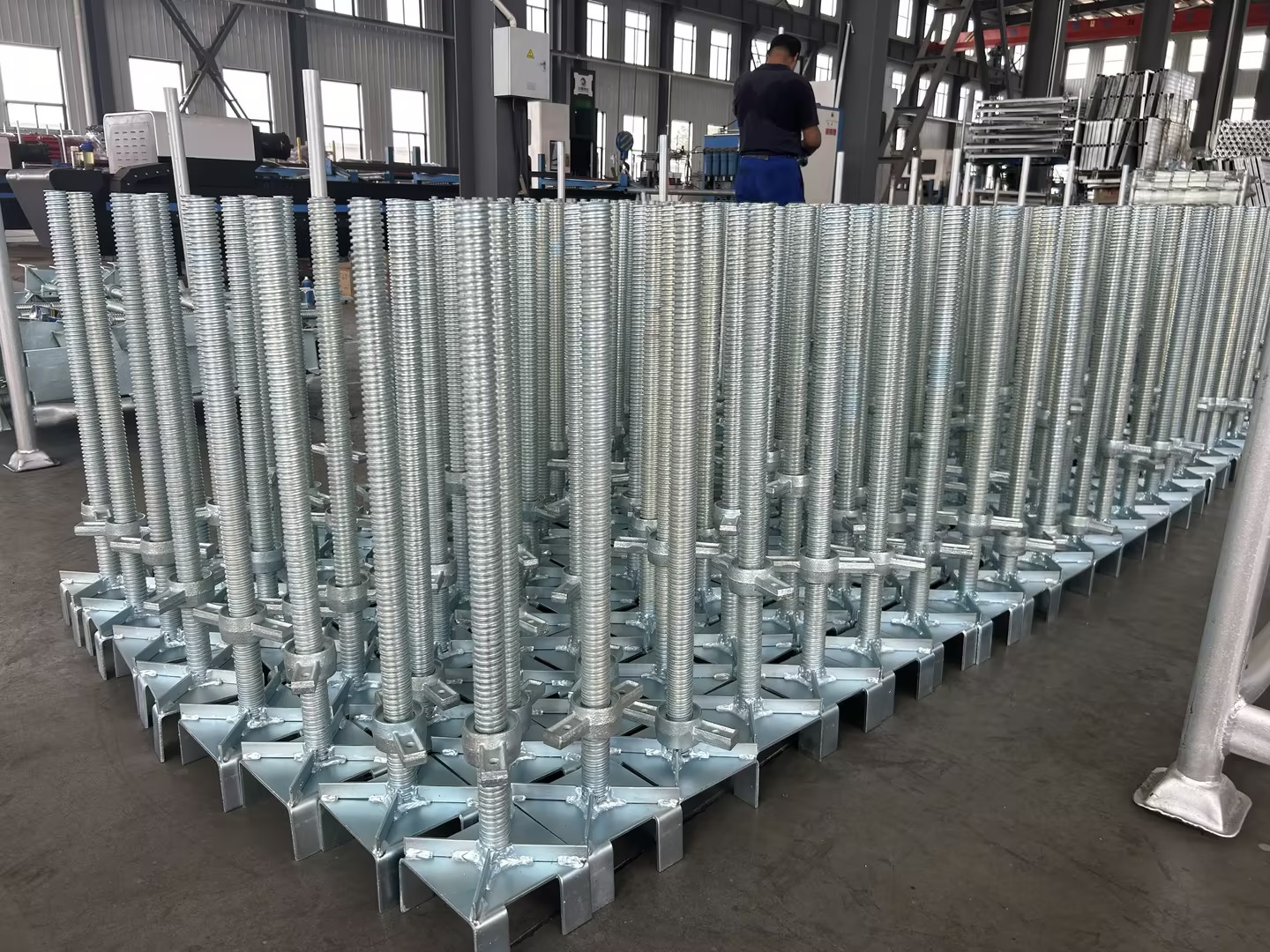

Base Jack
The base jack is an essential component in every scaffolding system. It can be used to adjust the level of the scaffolding in cases of uneven foundations and special shapes, providing a good solution for construction projects, bridges, tunnels, civil buildings, etc. It is widely used in support systems such as buildings and factories. The base jack is installed on the inside of each scaffolding system and can adjust the height of each ringlock standard to adapt to the uneven ground below the scaffolding.
U-Head Jack
As a steel structure scaffolding accessory, the U-head jack is used to be installed on the top of the scaffolding and used in conjunction with various support columns and supporting scaffolding systems to play the role of top and bottom support. The U-head base jack is mainly made of steel material, and the hot-dip galvanizing anti-corrosion process is used inside and outside, which improves the service life of steel scaffolding parts and provides further protection for safety.

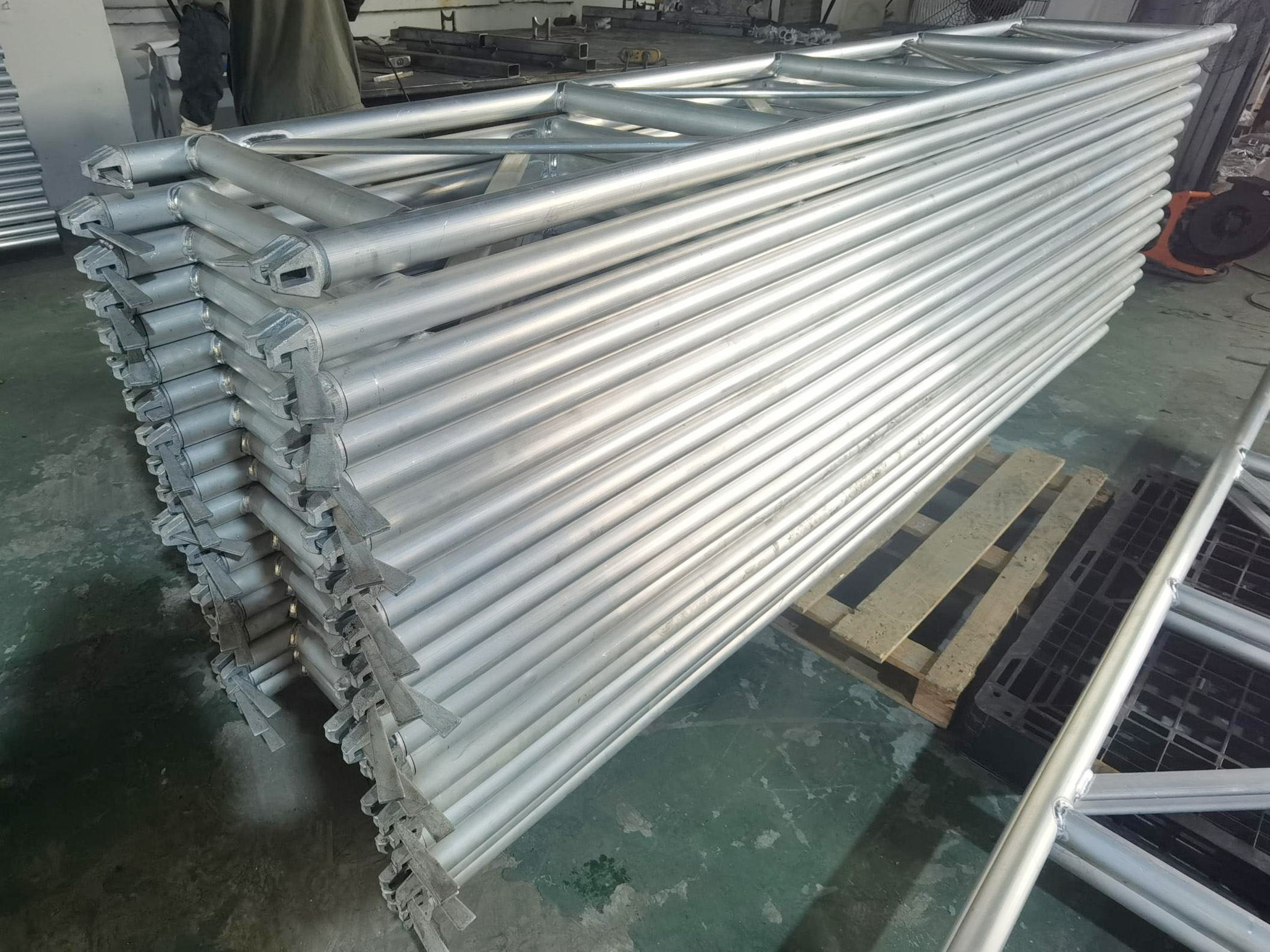

Ringlock Truss
Ringlock truss can be used as a horizontal member to connect the ringlock standard, transfer the load of the platform to the column, and provide side protection for the scaffolding. The Ringlock scaffolding truss ledger is made of an outer diameter 48.3x3.0/3.2 mm steel pipe, and the ringlock truss has wedge pins at both ends for connecting ringlock standard rosettes.

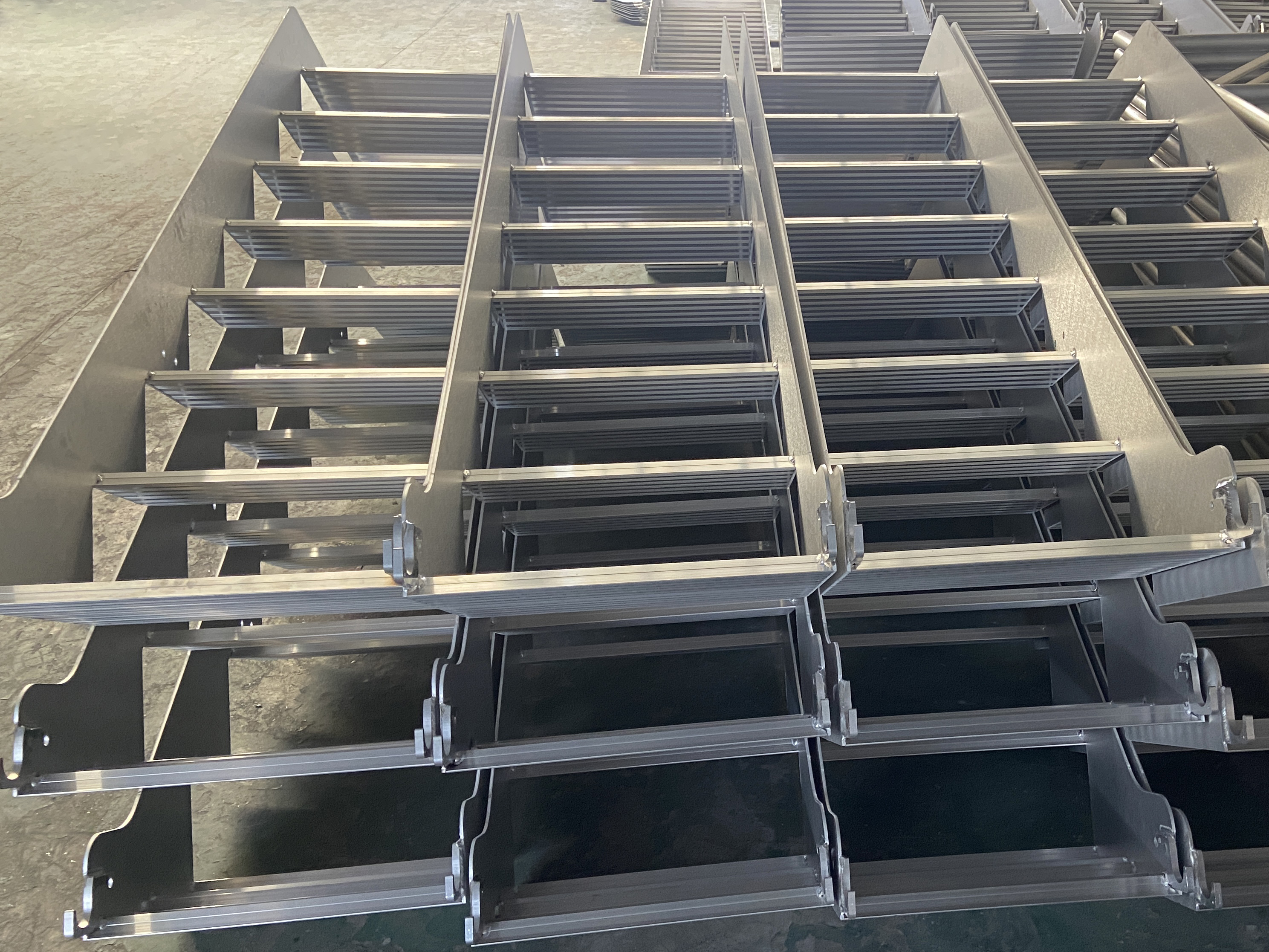

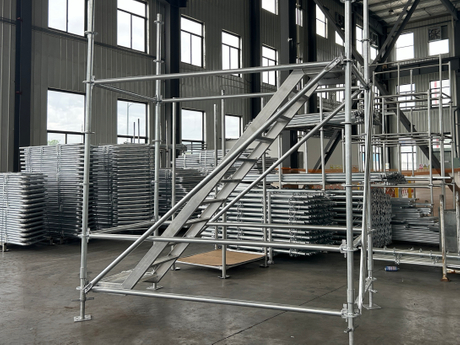

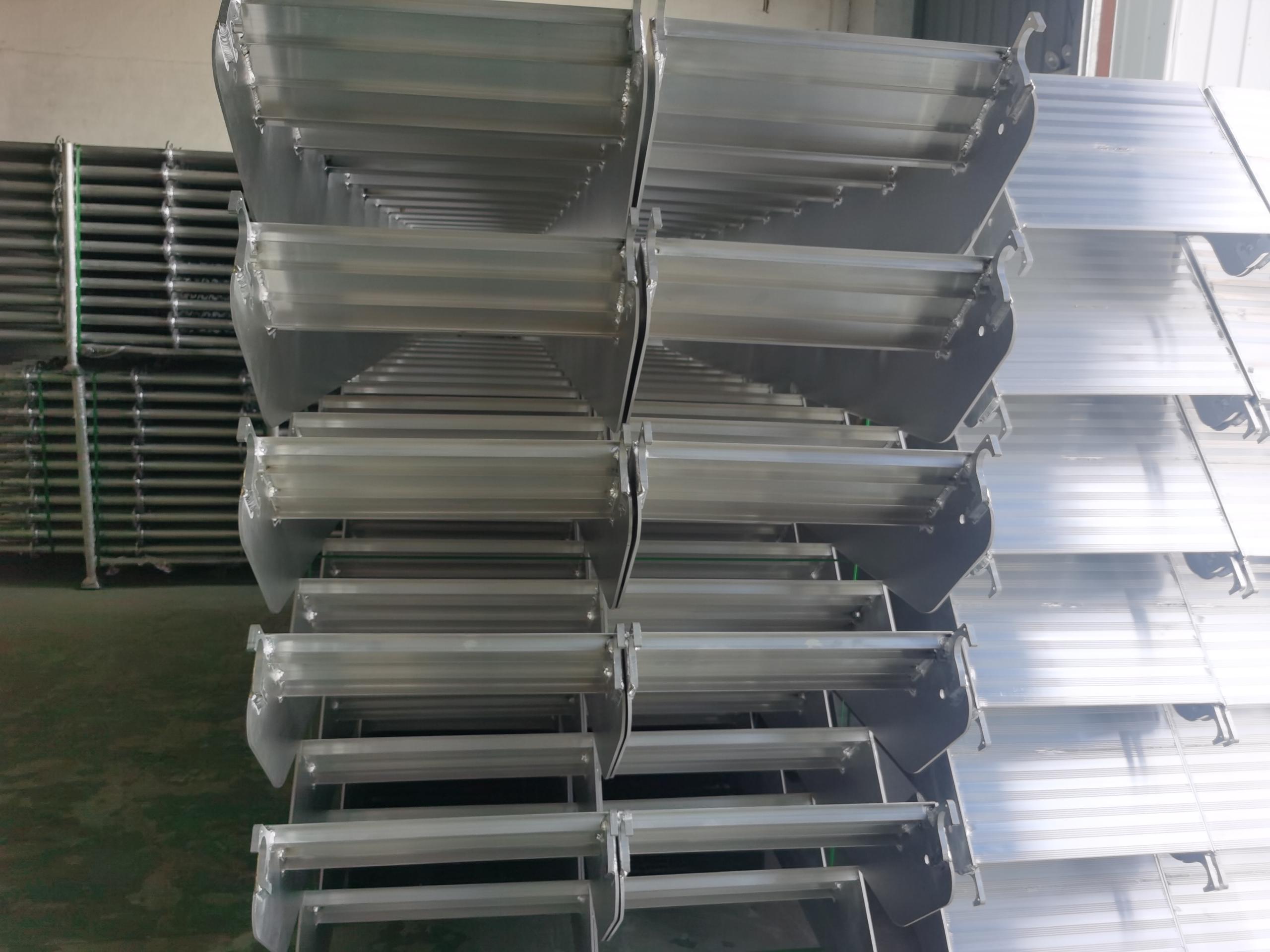

Scaffolding Stair
Scaffolding stair is used in scaffolding system and is easy to move on the scaffolding platform. This scaffolding stair is safer than a scaffolding ladder and can be moved freely, improving work efficiency. It is widely used in scaffolding systems, such as disc buckle system, bowl buckle system, frame system, etc.
