Ringlock scaffolding is a versatile and durable modular scaffolding system designed for industrial and heavy construction applications. Widely used in construction, industrial maintenance and large projects, it is also the scaffolding of choice for ships, tanks, marine engineering, boiler rooms, confined spaces and renovation projects.

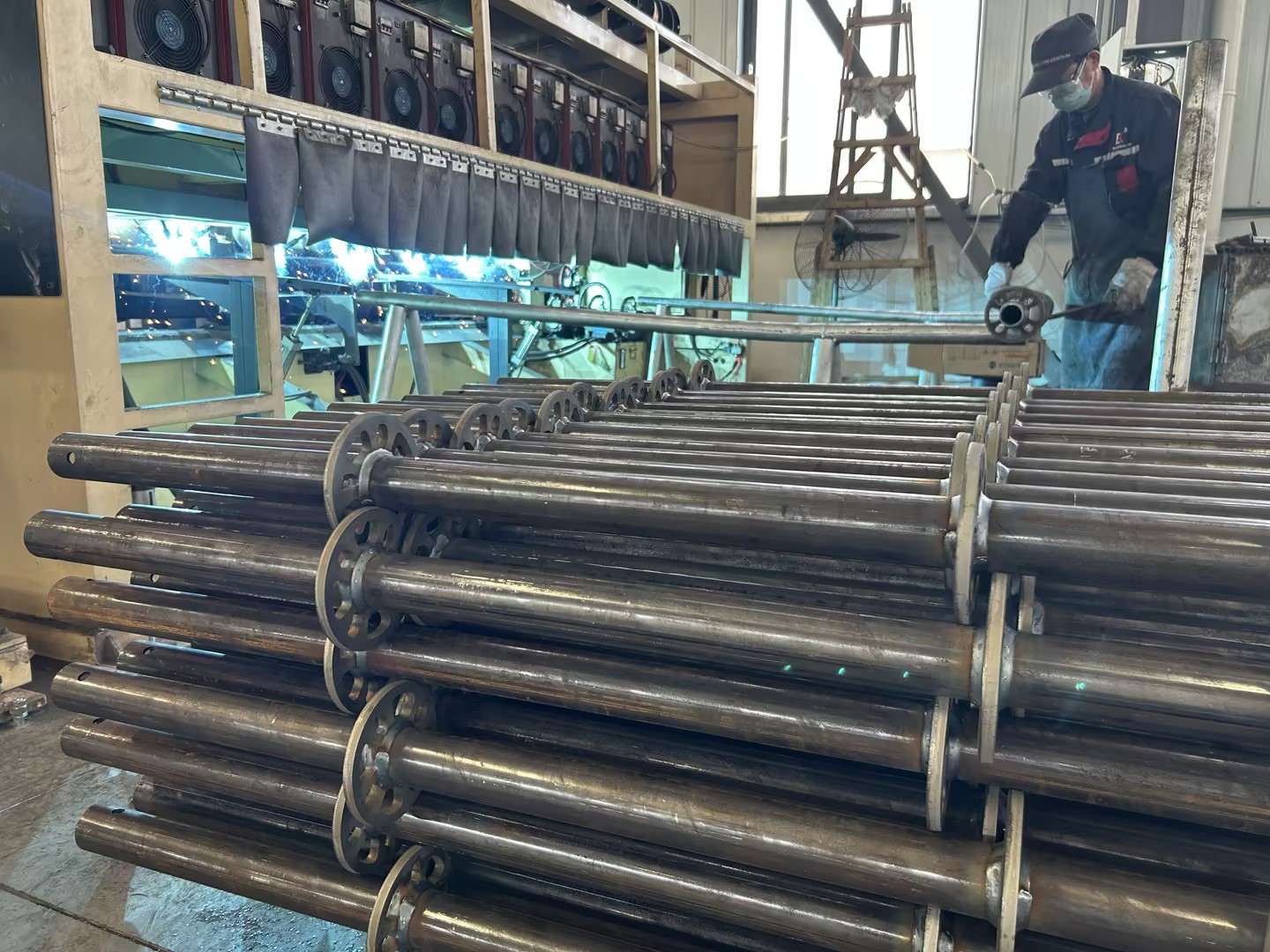

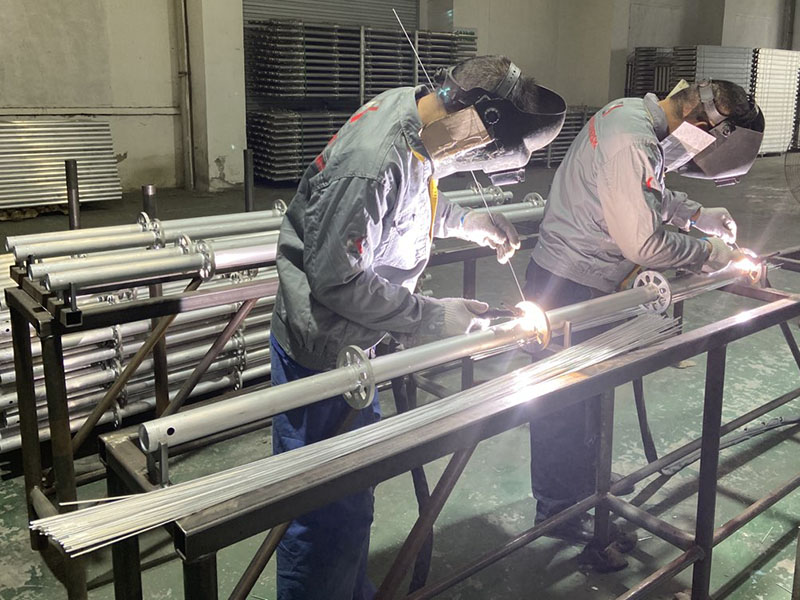

How to made ringlock scaffolding?
All components of the Ringlock scaffolding system are made of high-quality galvanized steel, including vertical rods, horizontal rods, base plates, bases and stairs. EK fully considers efficiency and safety in the design of ringlock scaffolding, and adopts a high-strength connection design to improve assembly efficiency, reduce labor and reduce the cost of ringlock scaffolding. The Ringlock scaffolding system is simple and easy to use, can adapt to any structure or shape, and can provide a comprehensive solution for the construction industry.

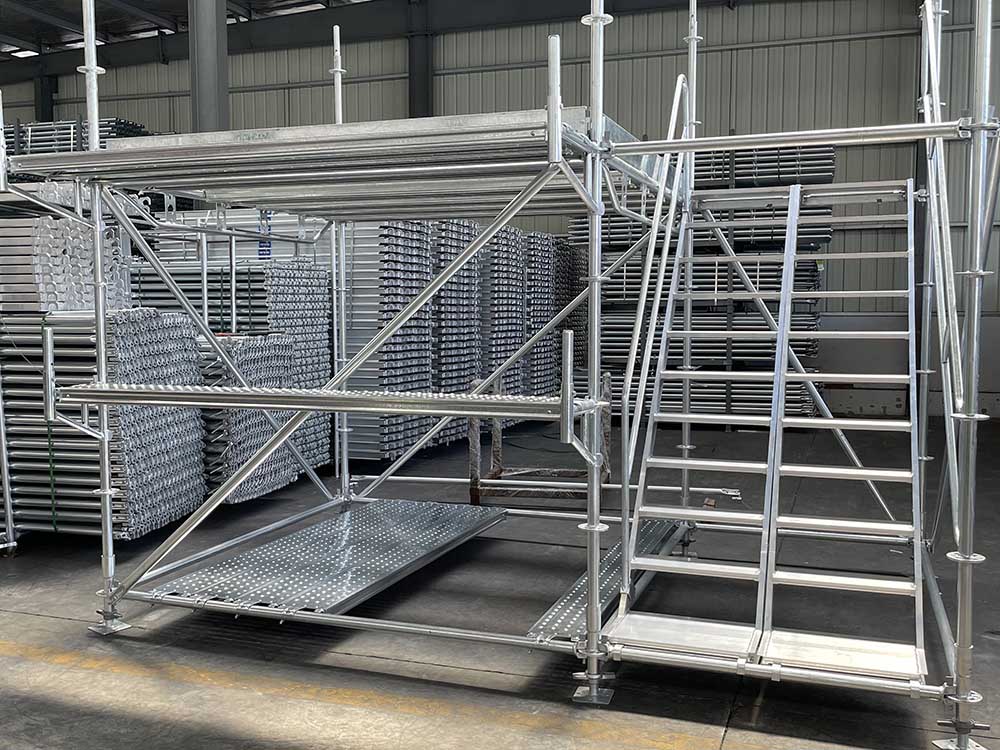

Main components of the Ringlock system

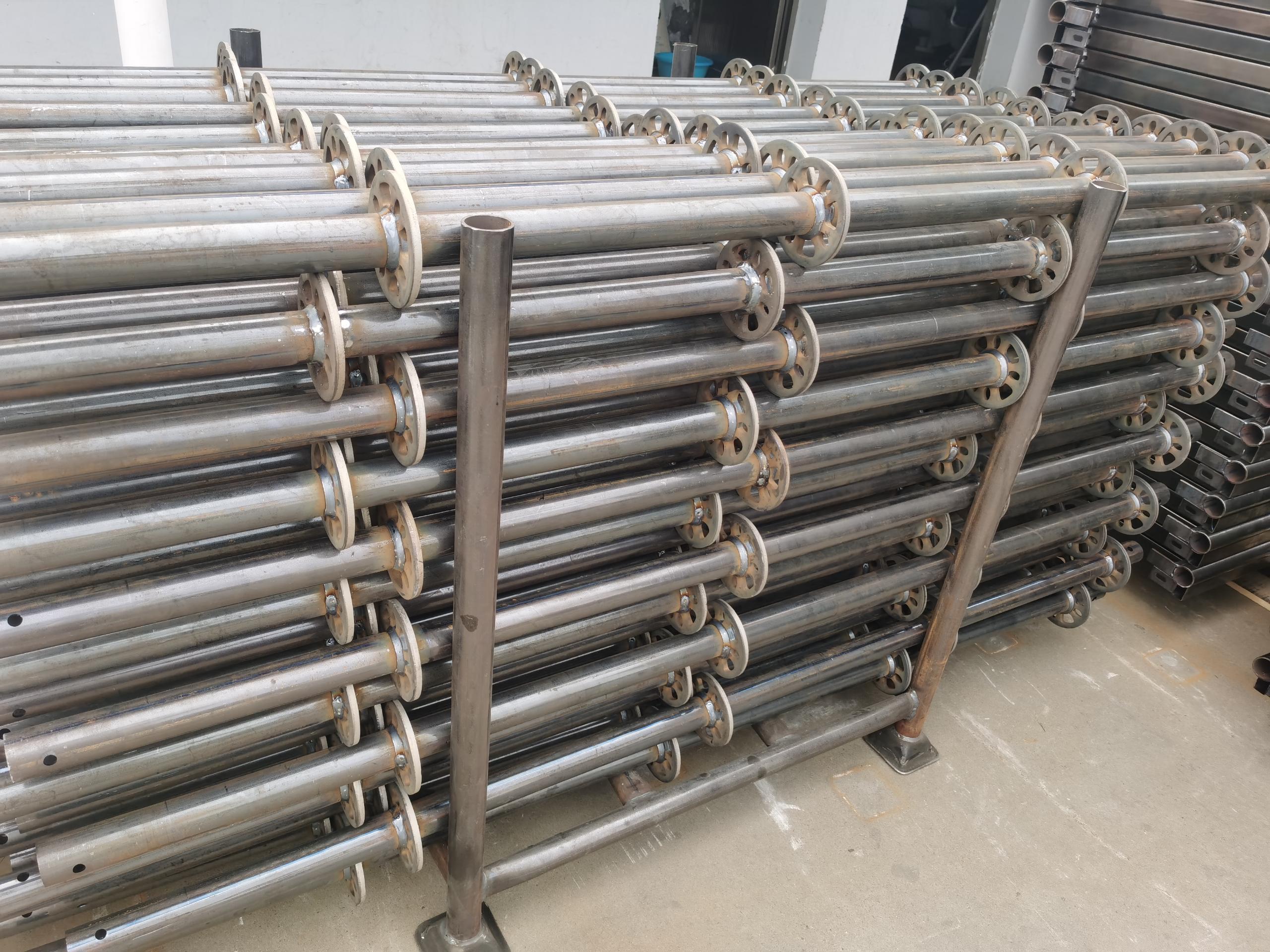

Ringlock Standard
Ringlock standard is a component in the scaffolding system and plays a key role in connecting other support systems. A circular scaffolding node is welded on each pole at 500mm intervals. These nodes provide different angles for the installation of crossbars and diagonal braces, thus playing a supporting role in the construction of complex structures.

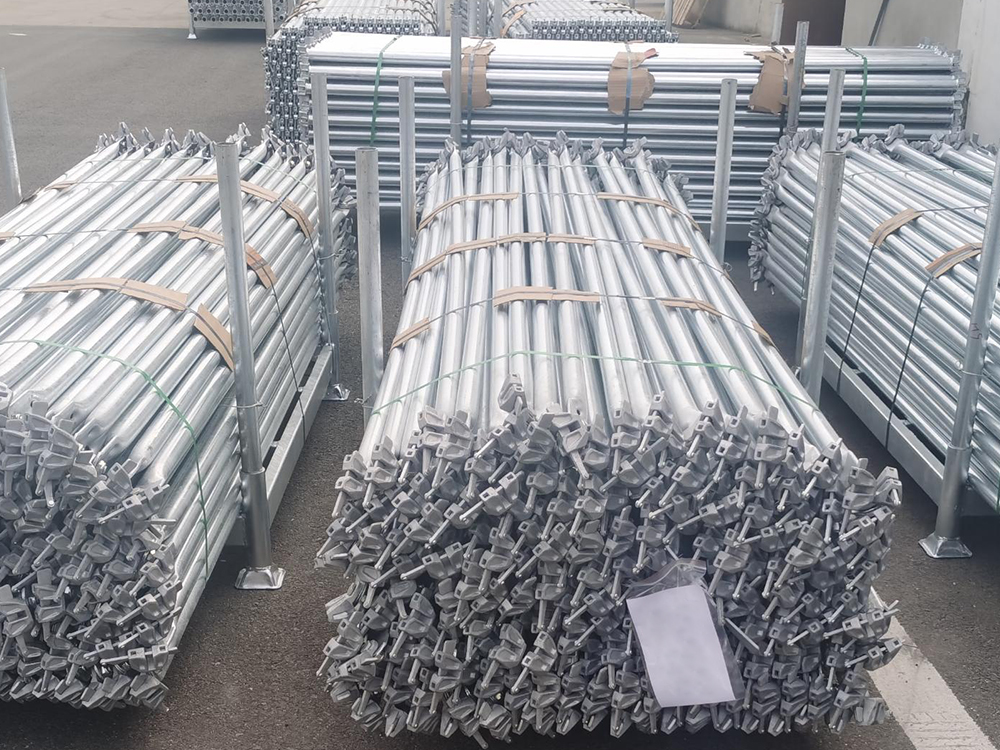

Ringlock Ledger
The ringlock ledger is used as a horizontal support device to firmly connect the vertical columns together. Pins are installed at both ends, which can be quickly inserted into the ring buckle nodes of the vertical columns and locked. The ringlock ledger can also strengthen the overall structure and improve the deformation resistance of the ringlock scaffolding.
Ringlock Diagonal Brace
The diagonal brace provides diagonal support in the ringlock scaffolding system, which can enhance the anti-tilting and anti-deformation ability of the scaffolding structure. It is very important in high-rise buildings or complex construction projects. The ringlock diagonal brace can improve the stability of the scaffolding during construction and ensure construction safety.

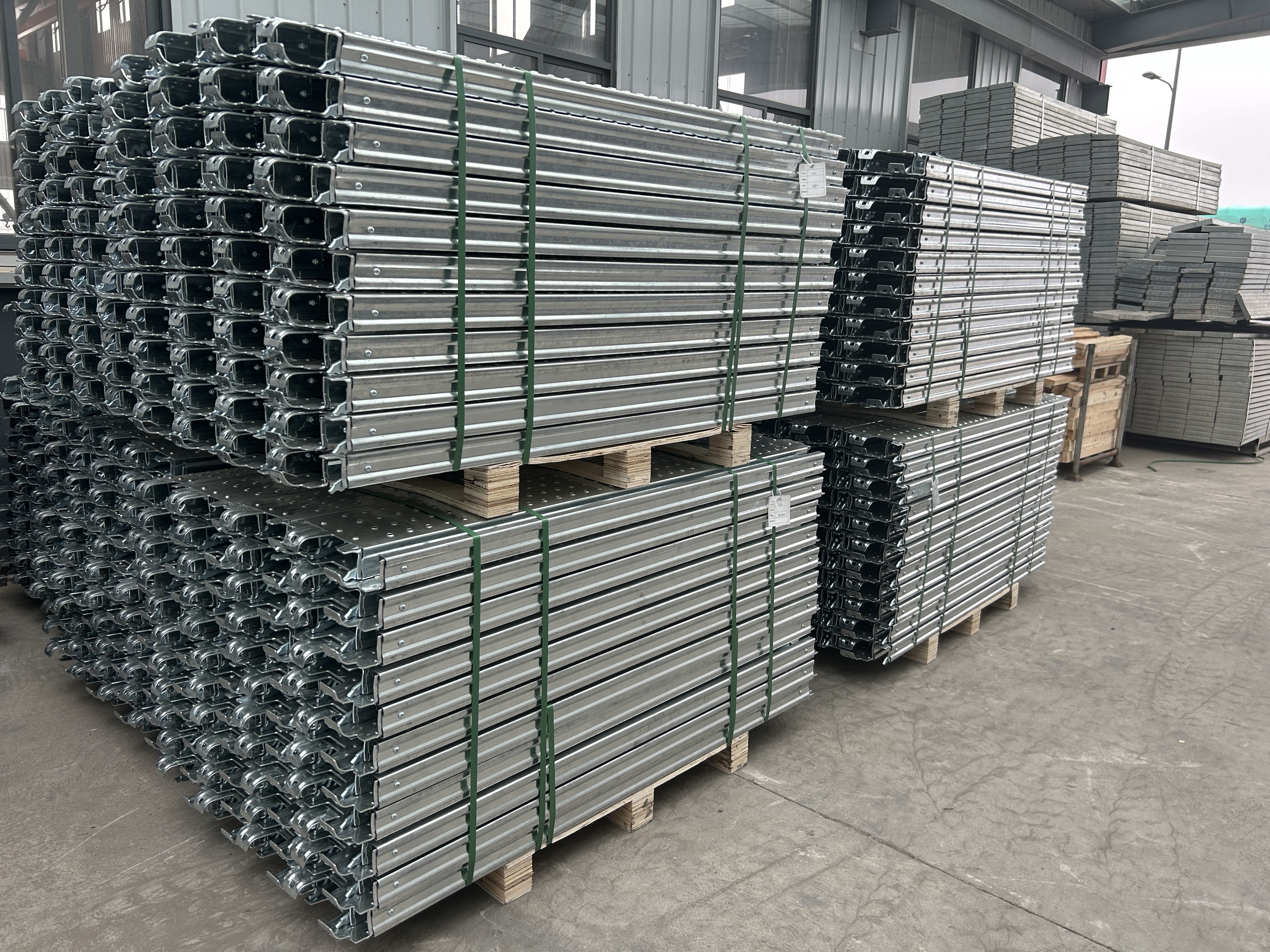

Scaffolding Plank
As a construction platform, the scaffolding plank can provide a direct support surface for construction personnel and equipment. Usually made of steel or aluminum materials, it has a high load-bearing capacity and a non-slip surface to ensure the safety of construction personnel. Scaffolding plank can arrange working platforms of different widths and heights according to construction requirements.
Base Jack
Ringlock scaffolding is compatible with most types of base jack, which can provide stable basic support and ensure the verticality of the poles. For uneven ground, base jack is very important.

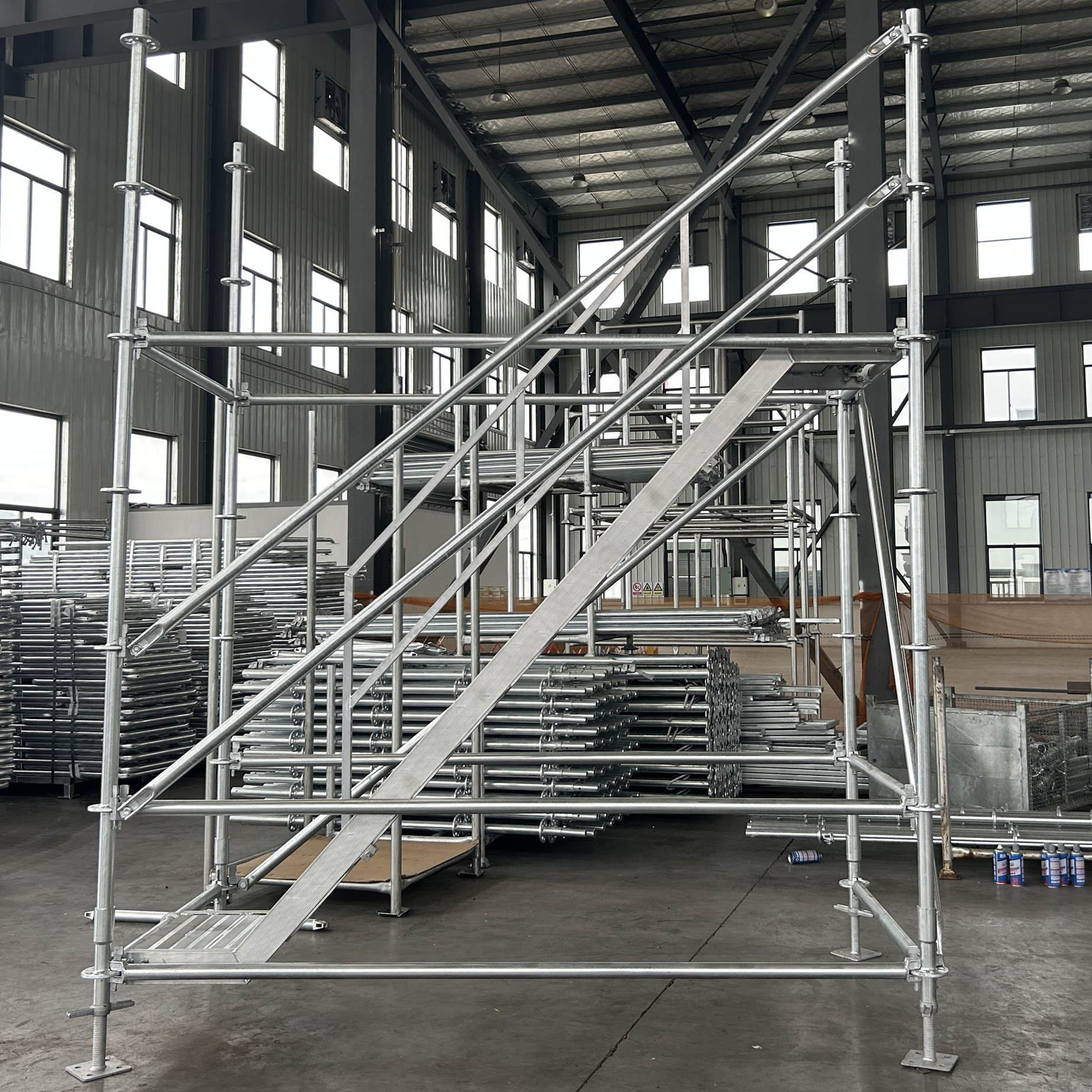

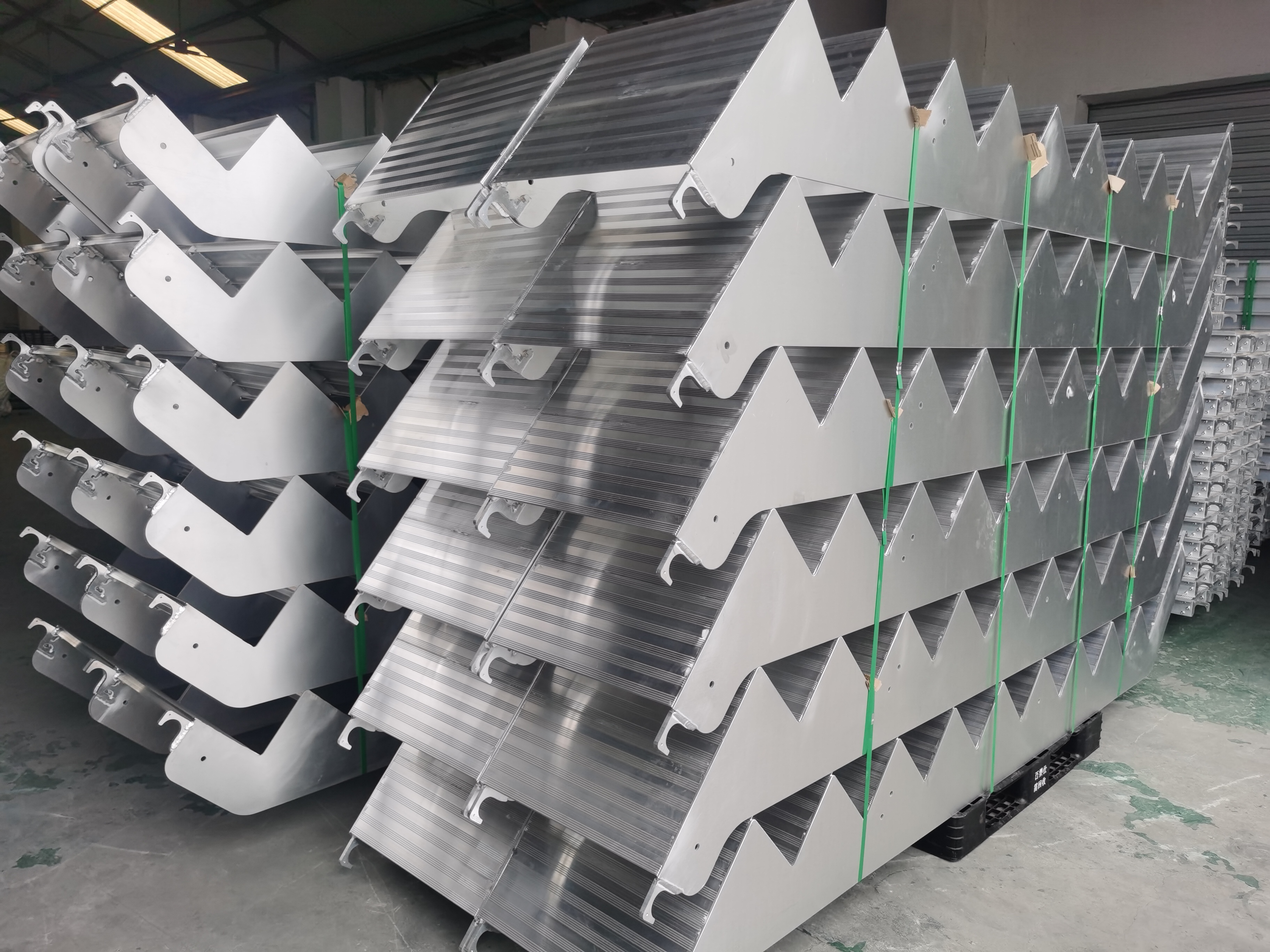

Scaffolding Ladder
Scaffolding ladders can be directly connected to the ringlock scaffolding system, providing safe access for workers and materials. Scaffolding ladders are available in aluminum alloy and steel.
Advantages of Ringlock scaffolding system
Versatility and design flexibility
Ringlock scaffolding’s unique rosette-shaped connectors are highly adaptable and can easily adapt to irregular facades or narrow spaces. This modular scaffolding system offers up to 8 connection points, allowing curved, tilted or multi-angle structures to be built from multiple angles.
Quick assembly and disassembly
Ringlock’s simple connection design only requires a hammer to fix the vertical poles, crossbars and diagonal braces in place. Without the need for extra accessories, even inexperienced workers can quickly build and dismantle scaffolding. This means lower labor costs and higher transportation efficiency.
High load-bearing capacity
Ringlock scaffolding systems are made of hot-dip galvanized or high-strength aluminum and can withstand high loads of up to 6 kN/m² (about 612 kg/m²). This makes the ringlock scaffolding system an ideal choice for construction projects that require extremely high strength and stability. High-quality aluminum and hot-dip galvanizing are also highly resistant to corrosion, so they are used in bad weather and have a long service life. They are also suitable for supports, material loading platforms and formwork supports.
Easy to store and transport
Ringlock scaffolding is stable during transportation and can be stacked, which can save warehouse space and reduce operating costs.
Durable
Both steel and aluminum ringlock scaffolding components are resistant to rust, corrosion and mechanical wear. Suitable for marine, coastal or rainy environments, it can have lower maintenance costs and longer service life.
Safety and fault tolerance
Ringlock scaffolding's secure locking mechanism reduces the possibility of errors, and the stable rose-shaped connection structure can ensure the integrity of the scaffolding structure. The Ringlock scaffolding system is easy to assemble and uses fewer tools, which can reduce the risk of incorrect settings. The surface has an anti-slip design and guardrails, which improve the safety of workers and meet international safety standards.
Comply with safety standards
Ringlock scaffolding systems meet major international safety and quality standards. Certified to international quality standards, ringlock scaffolding systems ensure consistency, structural integrity and long-term durability. Using a system that meets international standards can protect your employees and project schedules.
