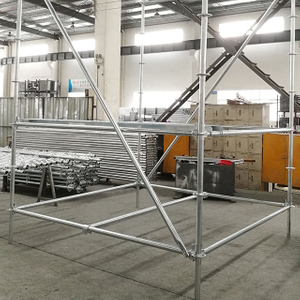

Ringlock scaffolding has a simple structure, mainly composed of ringlock vertical,ringlock ledger, and diagonal brace, and can be applied to a variety of construction scenarios. EK scaffolding can provide production and sales of ringlock vertical, ringlock ledger, and diagonal brace.

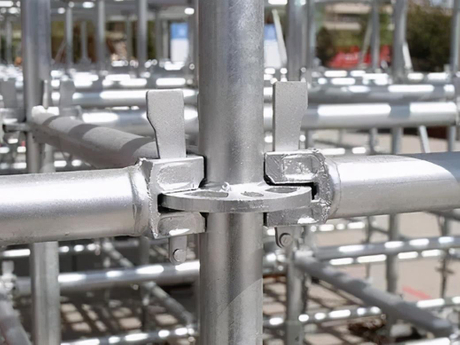

Ringlock Scaffolding system is very cost-effective and easy to use. When using it, you only need to insert the two ends of the horizontal into the ringlock of the vertical and lock the pin. It can reduce the installation time of workers and reduce transportation costs. The components of Ringlock Scaffolding are standardized, easy to transport and manage, with low loss and less maintenance investment in the later stage.
|

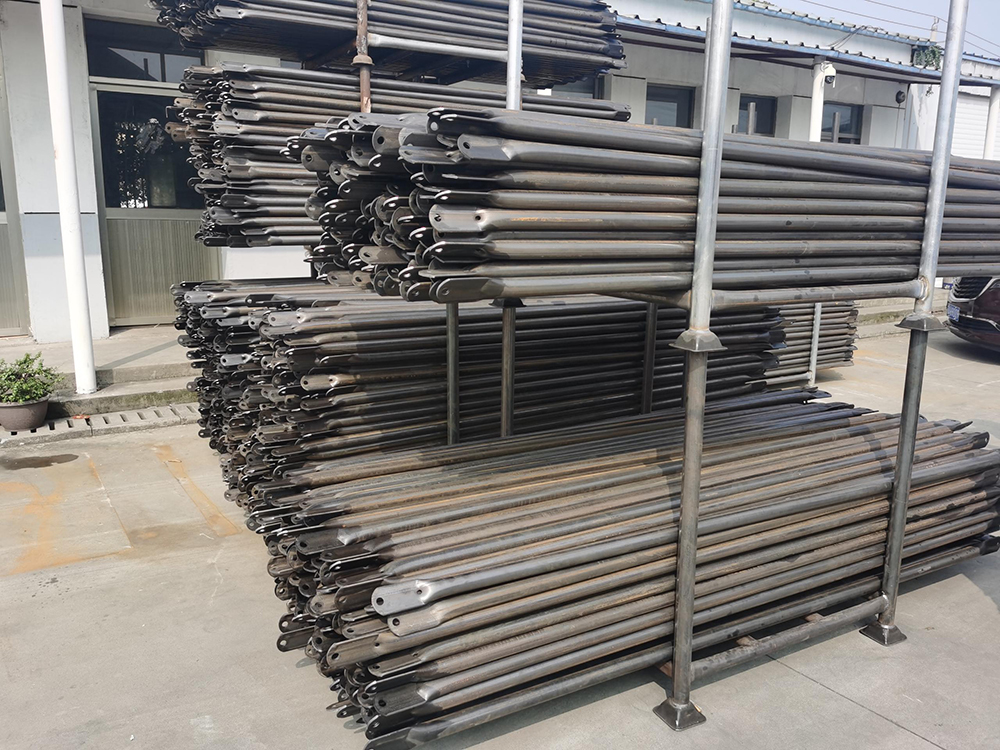

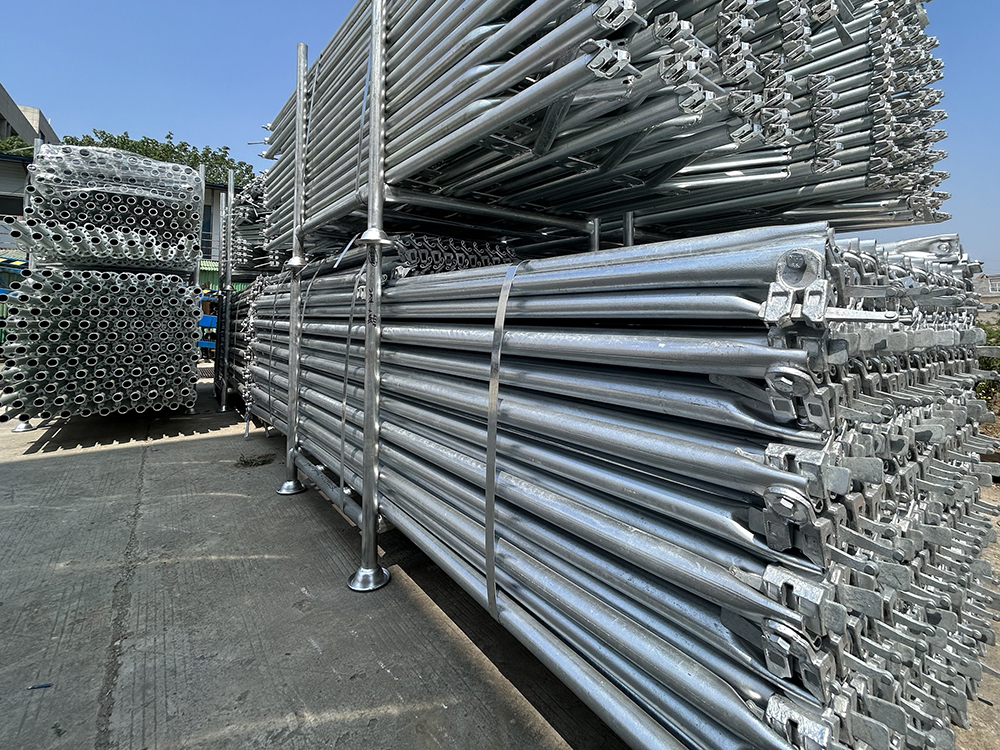

Product Packaging
Ringlock Standard
Ringlock Ledger
Ringlock Diagonal Brace
|
Company Profile
EK scaffolding currently has automatic welding machines for vertical poles and horizontal poles, which can improve the production efficiency of products and complete the production volume on time within the time specified by customers. Machine welding also has the characteristics of full welds without burrs, which can reduce product defective rate, increase product service life and reduce costs. In addition to producing related components of ringlock scaffolding, we also provide production of scaffolding system components such as cuplock scaffolding and kwikstage scaffolding.
|
Product Details

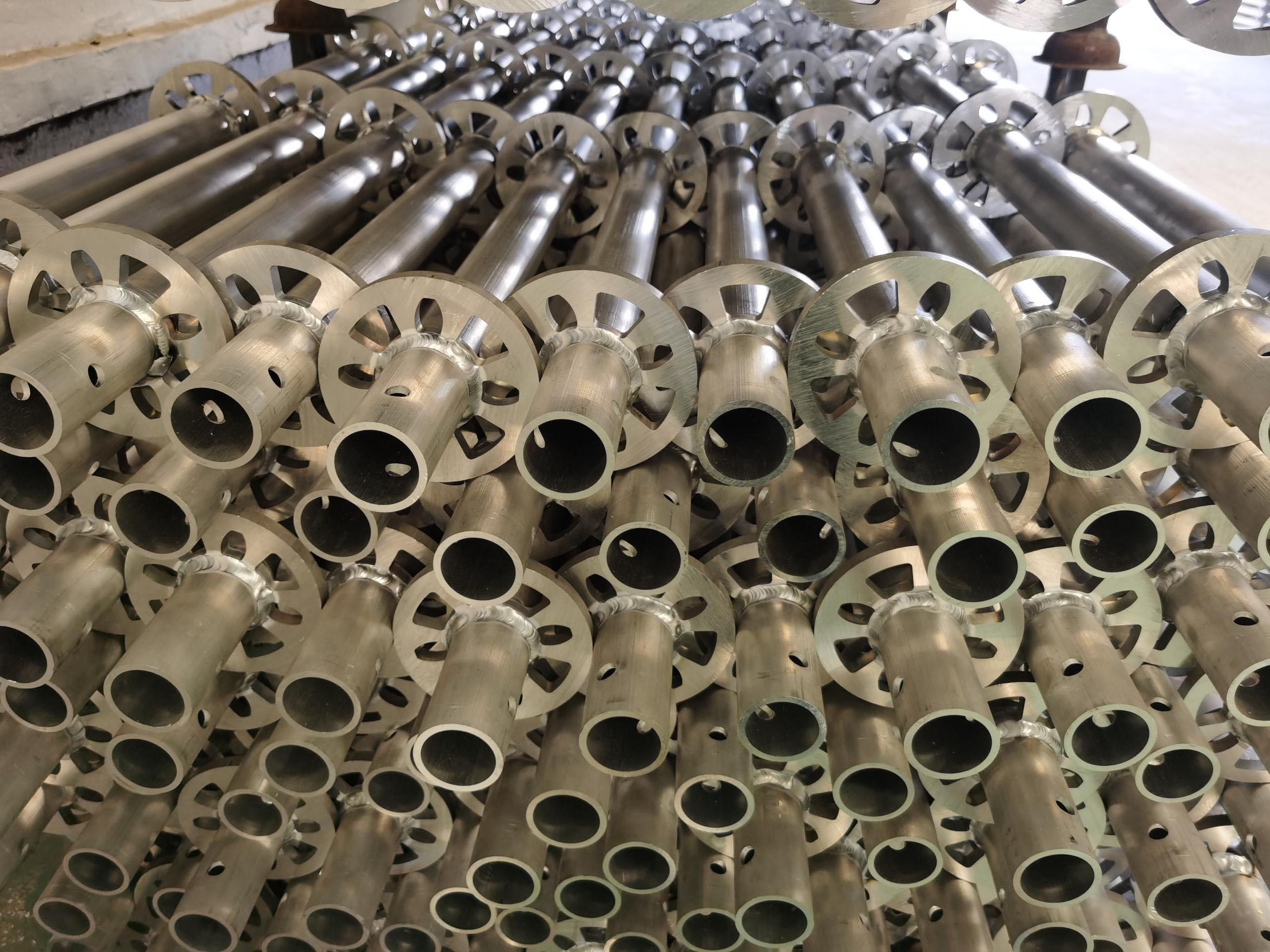

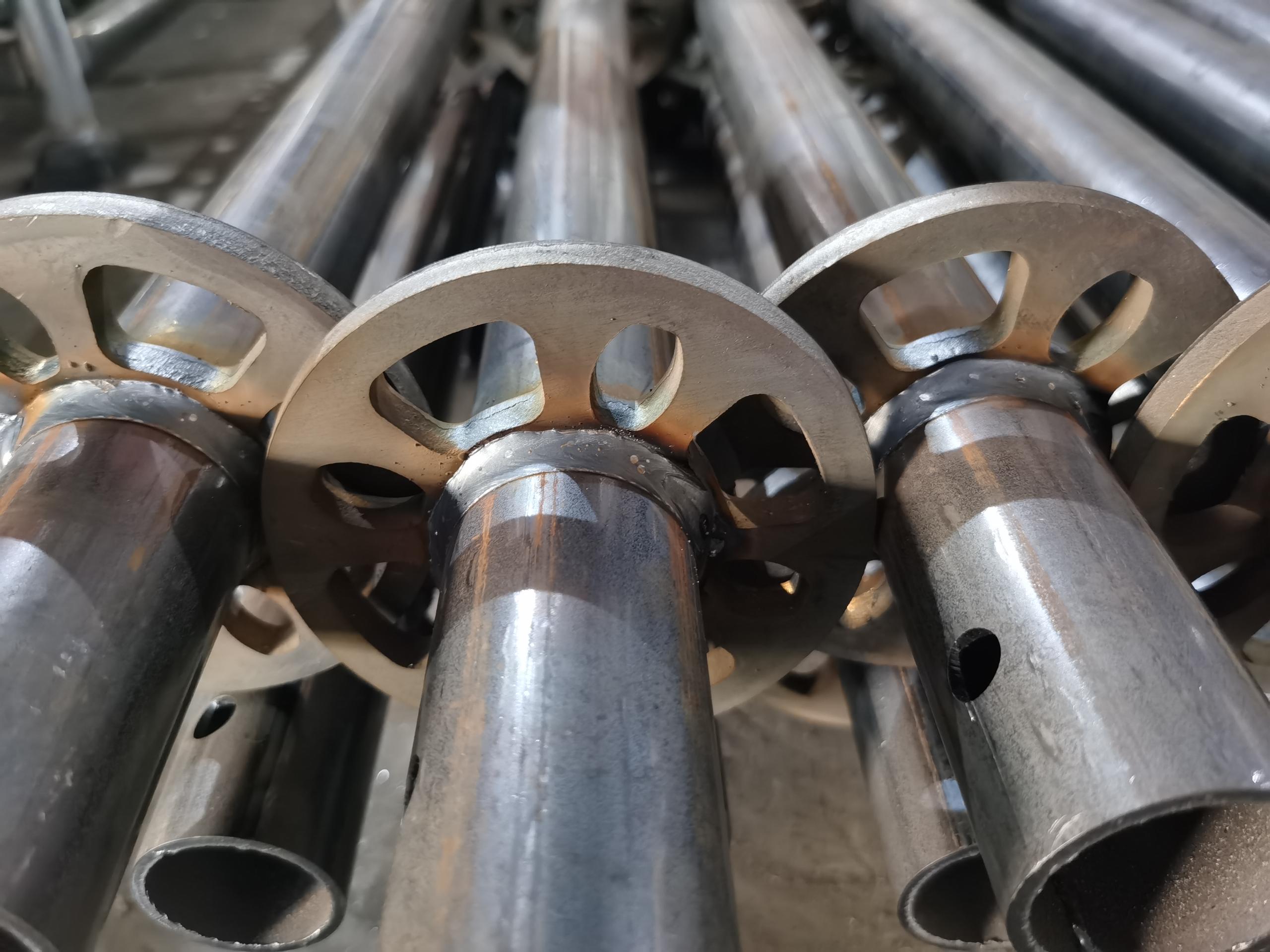

Ringlock Standard

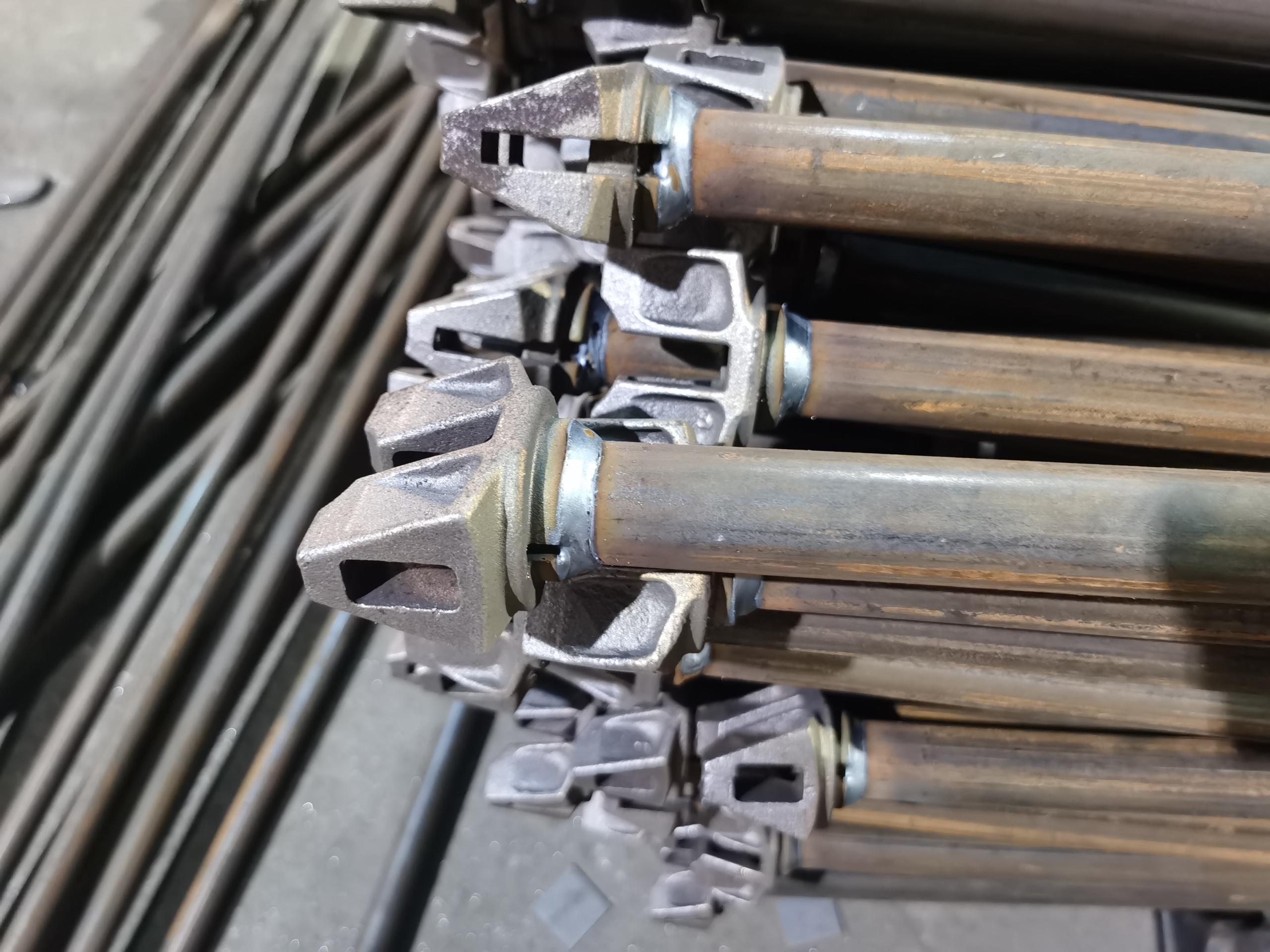

Ringlock Ledger
ringlock diagonal brace
|
Data Sheet

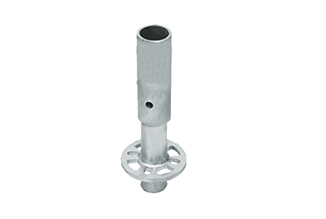

Ringlock Scaffolding Vertical / Standard – with Spigot
Q345 Steel Tubes 48.3 x 3.2mm
Code
Item
Length
Weight
EK-RSL001
Ringlock Standard 0.5M
0.5M
1’8”
3.2KG
7.1LBS
EK-RSL002
Ringlock Standard 1.0M
1.0M
3’3”
5.5KG
12.2LBS
EK-RSL003
Ringlock Standard 1.5M
1.5M
4’11”
7.0KG
15.5LBS
EK-RSL004
Ringlock Standard 2..0M
2..0M
6’7”
10.2KG
22.5LBS
EK-RSL005
Ringlock Standard 2.5M
2.5M
8’2”
11.7KG
25.8LBS
EK-RSL006
Ringlock Standard 3.0M
3.0M
9’10”
14.9KG
32.8LBS
|
Material
EK scaffolding provides two types of ringlock scaffolding, aluminum ringlock scaffolding and steel ringlock scaffolding. Aluminum ringlock scaffolding is lighter and more corrosion-resistant than steel ringlock scaffolding, and is more frequently used in outdoor projects. Steel ringlock scaffolding has a higher load-bearing capacity, and its durability and service life are higher than aluminum ringlock scaffolding.
