Scaffolding Ringlock System HDG Scaffold GI Standard Galvanized Vertical

5 0 Reviews

Share to:

Galvanized Scaffolding Ringlock System Standard 1) Material: Q235 2) Tube Size: 48.3x3.2mm 3) Length: 2000mm 6'7" (500-4000mm available) 4) Surface Treatment: HDG Galvanized 5) Weight: 10.45KG 6) Standard: BS1139, EN74 7) Marking: Customized markings on products

Availability:

Quantity:



Inquire Add to Basket

Model:
Ringlock Scaffolding System Standard
Brand:
EK
Code:
730890000
Tube Size:
48.3x3.2mm
Material:
Q235
Surface Treatment:
Hot-Dip Galvanized
Weight:
10.45

Product Description

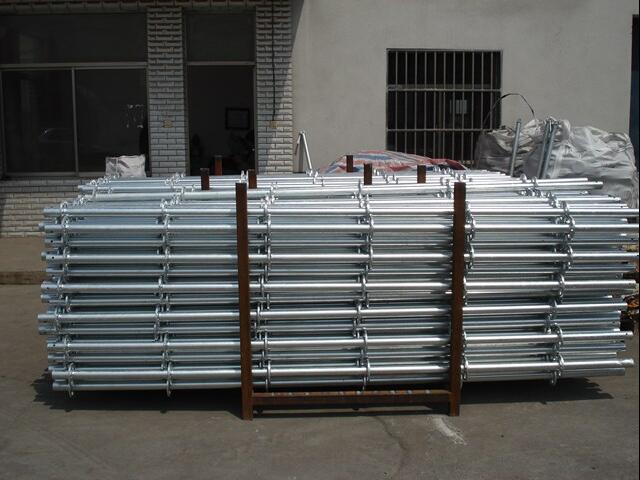

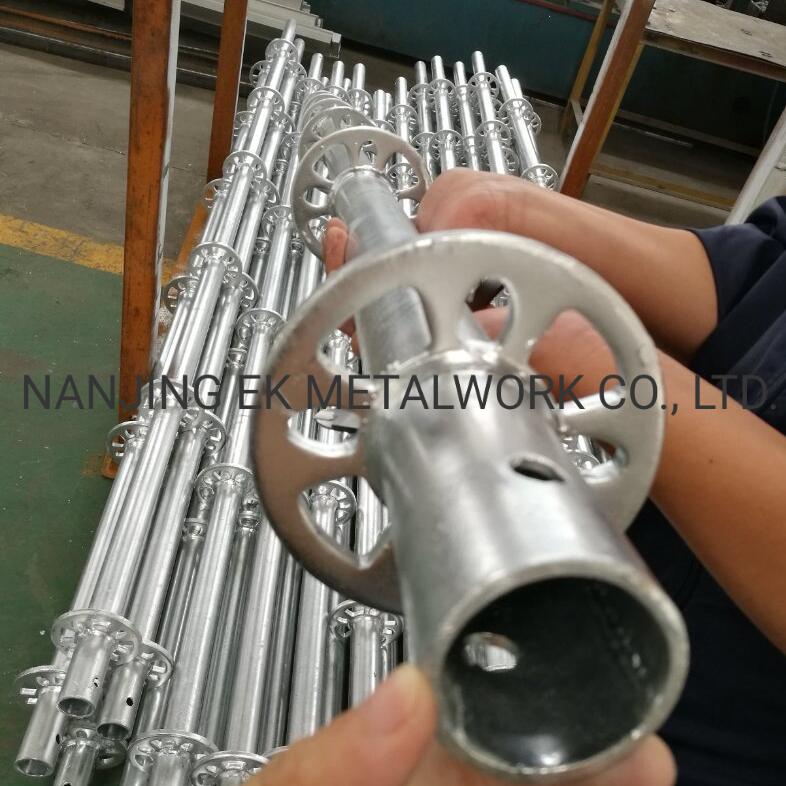

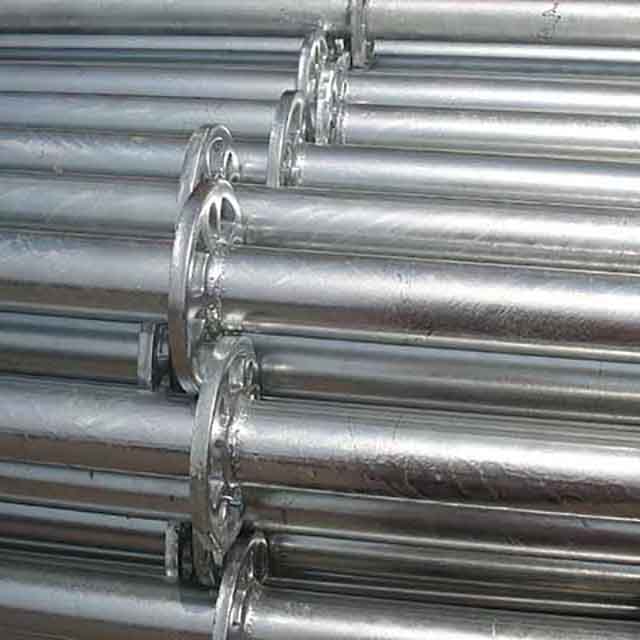

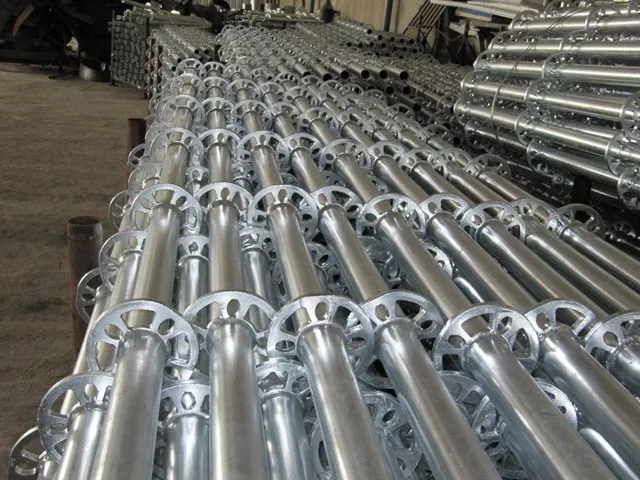

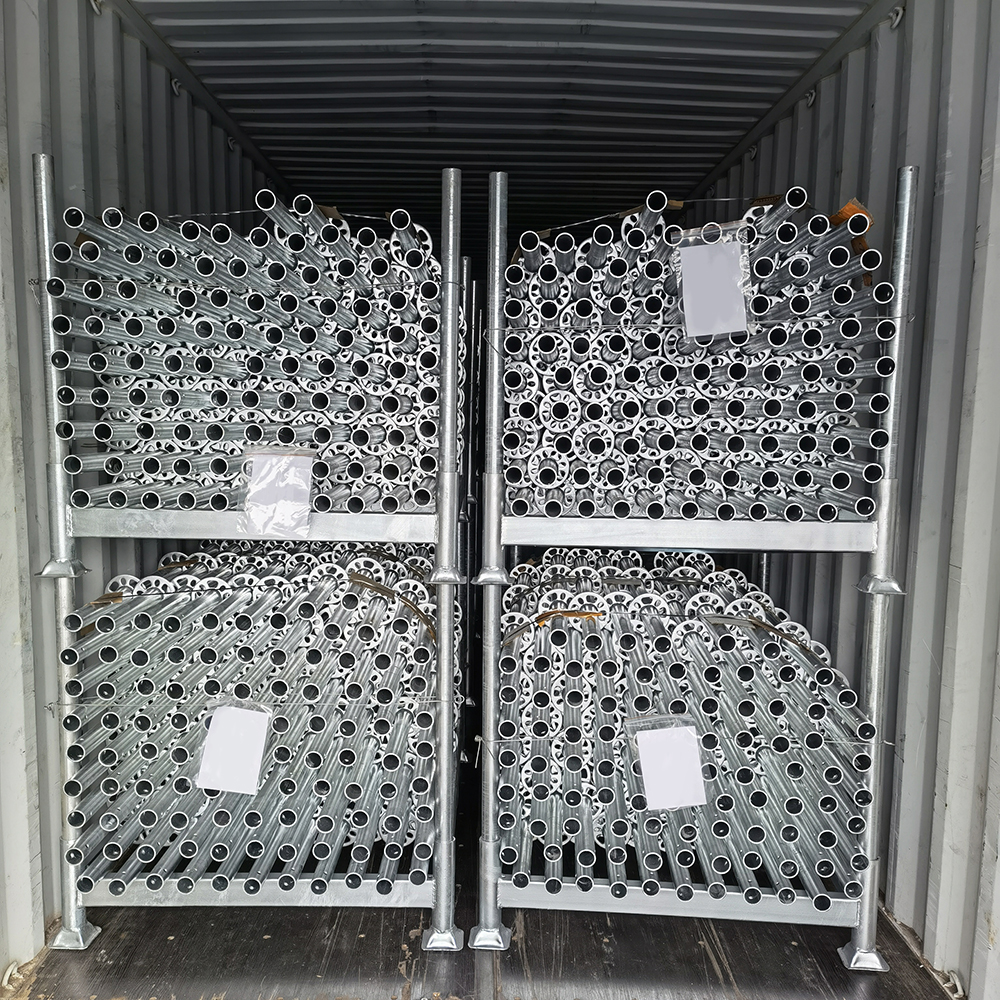

HDG Standard for Ringlock System

Production Description

Type	HDG Ringlock Scaffolding Standard
Length	2000mm(6'7")
Weight	10.45kg
Main Material	Q235 or Q345
Surface treatment	Painted, galvanized, HDG, powder coated
Advantages	Competitive price, High-quality products, 24-hour after-sales service
Port	Nanjing/XINGANG
Currency	USD, RMB
Payment	L/C, T/T, 30% in advance

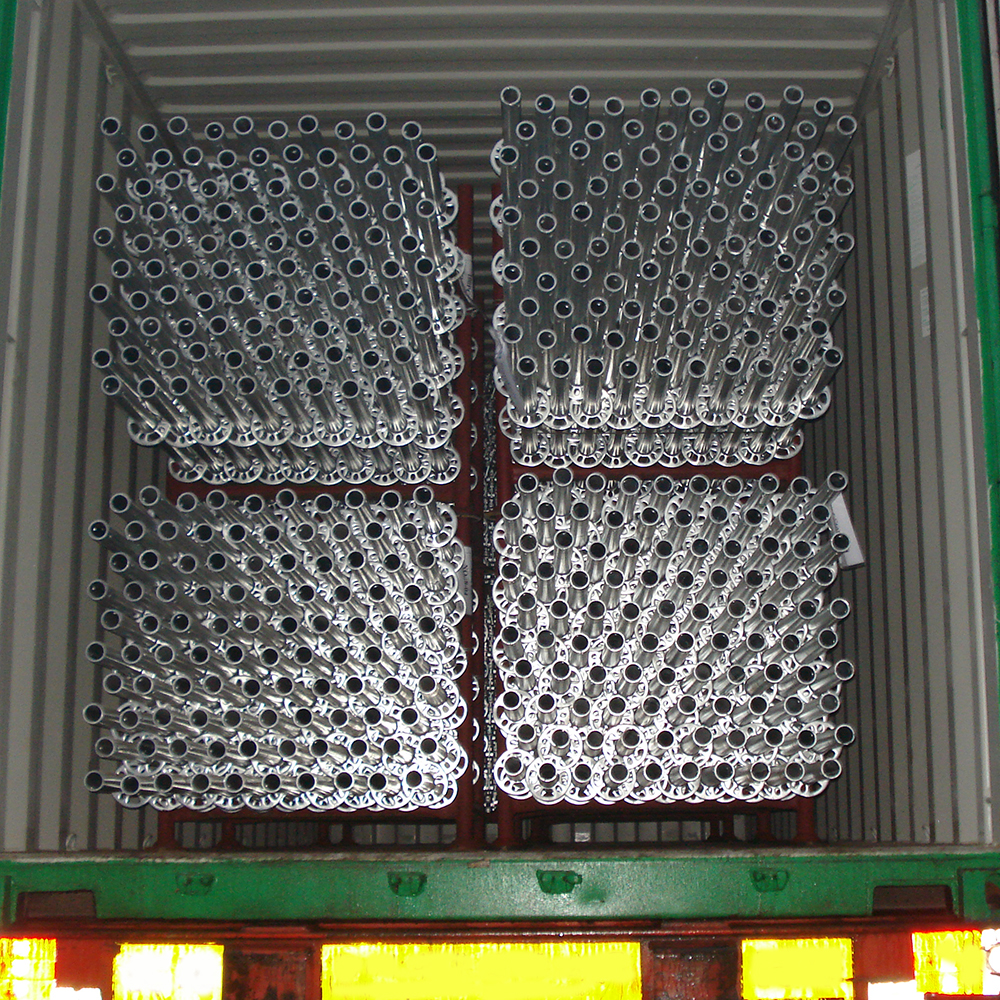

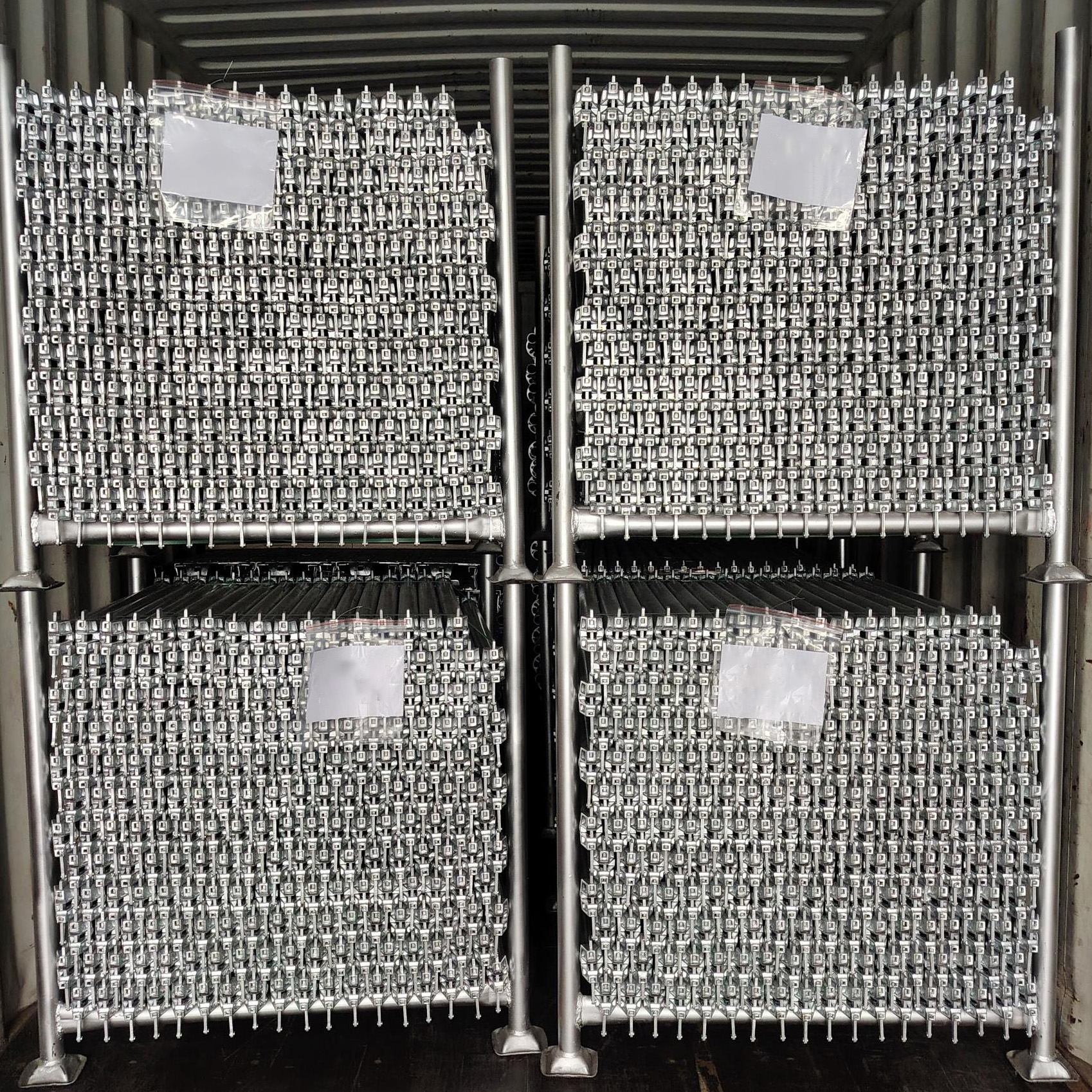

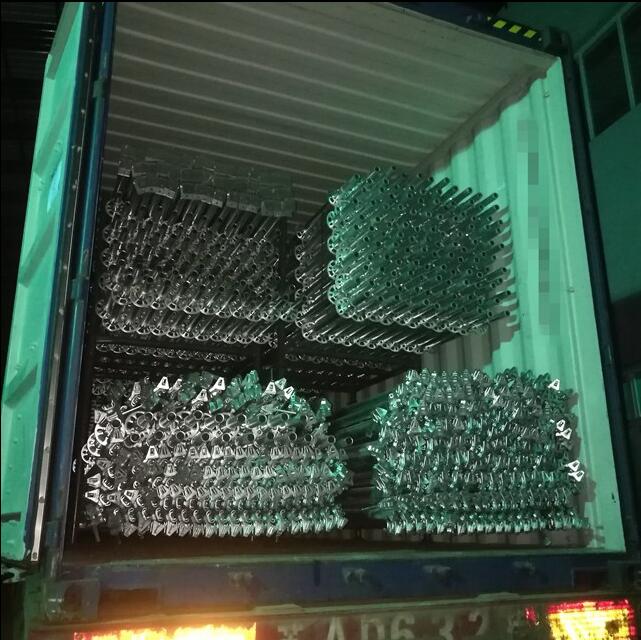

Package	Steel Pallet or Customized

Weight & Length

Code	Description	Length (mm)	Weight (kg)
EK-RLS050	Standard (Vertical) with Hot Dip Galvanized steel tube 48.3x3.2mm	500 (1’8”)	3.19
EK-RLS100		1000 (3’3”)	5.66
EK-RLS150		1500 (4’11”)	8.07
EK-RLS200		2000 (6’7”)	10.45
EK-RLS250		2500 (8’2”)	12.87
EK-RLS300		3000 (9’10”)	15.29
EK-RLS400		4000 (13’1”)	20.11
